COUNT TO 10,000,000 using 12 DIGIT RUNNING SIGN
More PIC Projects
To order [send an email](mailto:colin@elechelp.com?Subject=Buying 12 Digit Running Sign&Body=Please e-mail the cost of buying 12 Digit Running Sign kit by air mail to my country:**___**** and send details of how I can pay for it. My name is:____)** to us and we will reply with the details.
Kit: $25.00 plus $6.50 postageto:Page 1
This project automatically counts to 10,000,000 in one-second steps. It uses the 12 DIGIT RUNNING SIGN project.
To get into the area containing this feature; turn the project on, wait for the Attract message then push [ ] key and 10,000,000 SECONdS will appear. Then the display will show 00,000,000
All the “background routines” have been written to produce a scan routine and key-press routine.
All we have done is add the Count to 10,000,000 sub-routines.
The program is basically a 8-digit counter with automatic increment every second with a count stored in EEPROM every 50 seconds so you can turn the project off, then on again, get into the 10,000,000 Seconds count area, and continue the count.
The display can be turned OFF by pressing the first button. This reduces the current from nearly 80mA to about 1mA. However the counting keeps advancing in the background and saved every 50 seconds.
You can turn the display ON by pressing the first button again. You cannot reset the 10 million count without re-burning the chip.
Some of the features of this program include using Timer1 to count in the background while the program is displaying digits on the screen. Timer1 is “two 8-bit counters” that count up and an 8-bit divider can be assigned to it, creating a total count of 256 x 256 x 256 = 16,777,216.
The program also uses EEPROM to store the value of the count at a regular interval. This value is recalled when the project is turned on again and added-to each second.

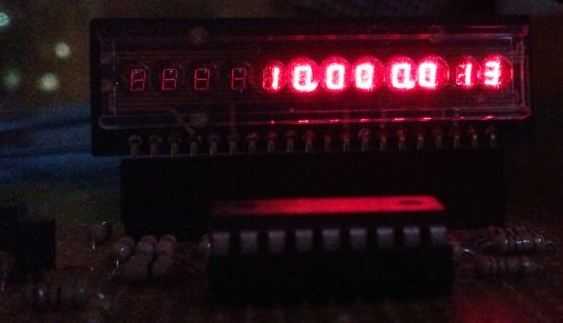

Here is the project at 1 Million !!
It will keep counting to 16, 777,215 another 78 days…
PROGRAMMING
The main reason for presenting these projects is to teach programming.
Once you have all the sub-routines in a program, you can use them to create new features.
There is still one more output pin on the micro that has not been used. It is RA7 (Pin16) and can used to drive a relay or any other device via a buffer transistor.
You can produce a count-down timer for rocket launching or similar activity.
The scope is endless and we will leave it up to you.
Go through each line of the program and see what each instruction does. This is a fairly advanced project however each sub-routine performs a very small operation and you need to see what is being carried out.
The only way you are going to fully understand a sub-routine is to build the project and change one of the values in a routine and see what happens. All the routines use very simple coding that can be aligned to “beginners coding.” In many instances there is an “advanced” way to achieve the same result using Boolean instructions, but most of these will take you an hour or more to understand, so we have intentionally used instructions that you can easily follow.
There is only one “high level” sub-routine in the program. It is B2D (Binary To Decimal) Conversion.
This has been taken from a section on the web that covers all sorts of PIC programming routines. Simply search “PIC Programs - Tools etc” and you will find code that has been developed by brilliant programmers.
Most of these code snippets will take you hours to understand and all you can do is marvel at the brilliance of the web at being able to bring programmers together to share their capabilities. There are also PIC Forums where you can ask questions and get help on developing code - so you have a “back-stop” for anything you want to do.
The main thing is to start programming. Once you start, you will be hooked. It is the most challenging activity you can do.
We have only just scratched the surface with the two applications for the display.
If you have any further ideas, let us know … .
Here are the files:
Count to 10,000,000 using 12DIGIT RUNNING SIGN
;****************************************************************
;* 12 Digit RUNNING SIGN Started 23/11/2010 *
;* Counts to 10,000,000 Seconds = about 115 days *
;****************************************************************
;list P = 16F628 ;microcontroller
include ;registers for F628
errorlevel -302 ;remove message about using correct bank
__Config _cp_off & _lvp_off & _pwrte_on &
_wdt_off & _intRC_osc_noclkout & _mclre_off
;code protection - off
;low-voltage programming - off
;power-up timer - on
;watchdog timer - off
;use internal RC for 4MHz - all pins for in-out
;****************************************************************
; variables - names and files
;****************************************************************
;Files for F628 start at 20h
temp1 equ 20h
temp2 equ 21h
store equ 22h ;for storing the data on first 10 digits in Sw3
timera equ 23h ;
timerb equ 24h ;
Sw_Flag equ 25h ;
count equ 26h ;loops of discharge time for 100n
flags equ 27h ;used to store value in EEPROM in Sw4
Jump_1 equ 28h ;jump counter for table1
Run equ 29h ;used in RUN (Sw5) routine
temp_sw equ 2Ah
ScanLoops equ 2Bh
onesec_hi equ 2Ch ;hi byte of 24bit variable
onesec_mid equ 2Dh ;mid byte
onesec_lo equ 2Eh ;lo byte
status_temp equ 2Fh ;used for interrupt servicing
w_temp equ 30h ;used for interrupt servicing
secs_low equ 31h ;holds the number of seconds
secs_med equ 32h ;holds the number of seconds
secs_hi equ 33h ;holds the number of seconds
;35h - 6Fh used for showing values on display
;files 35h - 43h are also used for count-to-1-million
res_u equ 35h ;result - units
res_t equ 36h ;result - tens
res_h equ 37h ;result - hundreds
res_th equ 38h ;result - thousands
res_tth equ 39h ;result - ten of thousands
res_hth equ 3Ah ;result - hundreds of thousands
res_m equ 3Bh ;result - millions
res_tm equ 3Ch ;result - tens of millions
temp equ 3Dh
cycles equ 3Eh
loops equ 3Fh
bcd_u_t equ 40h
bcd_h_th equ 41h
bcd_tth_hth equ 42h
bcd_m_tm equ 43h
secs_lowtemp equ 44h ;secs_lowtemp gets destroyed
secs_medtemp equ 45h ;secs_medtemp gets destroyed
secs_hitemp equ 46h ;secs_hitemp gets destroyed
isr_counter equ 47h ;counts 500mS
RunLoops equ 70h
Save equ 71h
Ghost equ 72h
GhostTemp equ 73h
Window equ 74h
WindowTemp equ 75h
_12loops equ 76h
;****************************************************************
;Equates
;****************************************************************
status equ 0x03
cmcon equ 0x1F
rp1 equ 0x06
rp0 equ 0x05
;****************************************************************
;Beginning of program
;****************************************************************
reset org 00 ;reset vector address
goto SetUp
org 0x004 ; Interrupt Handler routine
movwf w_temp ; save W & STATUS contents
movf STATUS,w
movwf status_temp
bsf status,rp0 ;Bank 1
bsf PIE1,0 ;,0 1=enables TMR1 interrupt
bcf status,rp0 ;bank 0
bcf PIR1,0 ;clear TMR1 overflow flag
bsf INTCON,7 ;This instruction is needed HERE !!!
bsf INTCON,6 ;1=enable all peripheral interrupts
decfsz isr_counter,f ;counts 500mS
goto _aaa
movlw 02
movwf isr_counter
call isr_delay
incfsz secs_low,1
goto _aa
incfsz secs_med,1
goto _aa
incf secs_hi,1
_aa btfsc flags,0 ;store value only once
goto _dd
movlw 0 ;stores value in EEPROM every 50 secs
xorwf res_t,w
btfsc 03,2
call Store3
movlw 5 ;stores value in EEPROM every 50 secs
xorwf res_t,w
btfsc 03,2
call Store3
_dd movlw 01 ;restore flag,0 when value 1 or 6
xorwf res_u,w
btfss 03,2
goto $+2
bcf flags,0
movlw 06
xorwf res_u,w
btfsc 03,2
bcf flags,0
movf status_temp,w
movwf STATUS
movf w_temp,w
call B2D
_aaa movf status_temp,w
movwf STATUS
movf w_temp,w
clrf TMR1L ;clear the Timer1 low register
movlw .12 ;TMR1H needs 244 to produce 499712uS
movwf TMR1H ;put into Timer1 high register
;Timer0 is not used
; will go to isr when overflow occurs in TMR1
;499712uS when prescaler=1:8
retfie
SetUp bsf status,rp0
movlw b'00000000' ;A in/out
movwf 05h
movlw b'00000000' ;B output
movwf 06h
movlw b'10000000' ;Turn off T0CKI, prescale for TMR0 = 1
movwf option_reg
clrf eeadr
bcf status,rp0 ;select programming area - bank0
movlw 07h ;turn comparators off and enable
movwf cmcon ; pins for I/O functions
call Clear
call Attract
call Clear
goto Main
;**************************
;* Tables *
;**************************
table1
addwf 02h,1 ;add W to program counter
retlw 3Fh ;0
retlw 06h ;1
retlw 5Bh ;2
retlw 4Fh ;3
retlw 66h ;4
retlw 6Dh ;5
retlw 7Dh ;6
retlw 07h ;7
retlw 7Fh ;8
retlw 6Fh ;9
retlw 3Fh ;0
retlw 77h ;A
retlw 7Ch ;b
retlw 39h ;C
retlw 5Eh ;d
retlw 79h ;E
retlw 71h ;F
retlw 6Fh ;g
retlw 76h ;H
retlw 06h ;I
retlw 1Eh ;J
retlw 38h ;L
retlw 37h ;N
retlw 3Fh ;O
retlw 73h ;P
retlw 67h ;q
retlw 50h ;r
retlw 6Dh ;S
retlw 78h ;t
retlw 3Eh ;U
retlw 6Eh ;y
retlw 80h ;dot
retlw 0BFh ;0.
retlw 86h ;1.
retlw 40 ;-
retlw 08h ;_space
retlw 1 ;line on top
retlw 48h ;equals . . . . . .24h chars
retlw 0ffh ;end of table
table2
addwf 02h,1 ;add W to program counter
retlw 0BFh ;0.
retlw 86h ;1.
retlw 0DBh ;2.
retlw 0CFh ;3.
retlw 0E6h ;4.
retlw 0EDh ;5.
retlw 0FDh ;6.
retlw 87h ;7.
retlw 0FFh ;8.
retlw 0EFh ;9.
;****************************************
;* Delay sub-routines *
;****************************************
;Delay 10uS
_10uS nop
nop
nop
nop
nop
nop
retlw 00
_500uS decfsz temp1,f
goto $-1
retlw 00
_1mS nop
decfsz temp1,f
goto _1mS
retlw 00
_4mS movlw 04h
movwf temp2
_b nop
decfsz temp1,f
goto _b
decfsz temp2,f
goto _b
retlw 00
_10mS movlw 0Ah
movwf temp2
_c nop
decfsz temp1,f
goto _c
decfsz temp2,f
goto _c
retlw 00
;288 x 2 uS to produce 1 second
isr_delay
movlw .190
movwf temp1
decfsz temp1,1
goto $-1
retlw 00
Delay1 movlw 1
movwf timerb
Del_a decfsz timera,1
goto Del_a
decfsz timerb,1
goto Del_a
retlw 00
Delay2 decfsz timera,1
goto Delay2
decfsz timerb,1
goto Delay2
retlw 00
_250mS movlw 0FFh
movwf temp2
_ee nop
decfsz temp1,f
goto _ee
decfsz temp2,f
goto _ee
retlw 00
;*********************
;* sub-routines
;*
;*********************
;Run: "10,000,000 SECONdS" across display
_10million
movlw 06h ;1
movwf 40h
movlw 0BFh ;0.
movwf 41h
movlw 3Fh ;0
movwf 42h
movlw 3Fh ;0
movwf 43h
movlw 0BFh ;0.
movwf 44h
movlw 3Fh ;0
movwf 45h
movlw 3Fh ;0
movwf 46h
movlw 3Fh ;0
movwf 47h
movlw 08h ;_
movwf 48h
movlw 6Dh ;S
movwf 49h
movlw 79h ;E
movwf 4Ah
movlw 39h ;C
movwf 4Bh
movlw 3Fh ;O
movwf 4Ch
movlw 37h ;N
movwf 4Dh
movlw 5Eh ;d
movwf 4Eh
movlw 6Dh ;S
movwf 4Fh
movlw 08h ;
movwf 50h
movlw 08h ;
movwf 51h
movlw 08h ;
movwf 52h
movlw 08h ;
movwf 53h
movlw 08h ;
movwf 54h
call Set4017
call Transfer
call sw5
retlw 00
;12DIGIT_RUNNING_SIGN_BY_TE
;Attract calls Sw5 RUN sub-routine (Sw_Flag is empty)
Attract movlw 06h ;1
movwf 40h
movlw 5Bh ;2
movwf 41h
movlw 40h ;-
movwf 42h
movlw 5Eh ;d
movwf 43h
movlw 06h ;I
movwf 44h
movlw 6Fh ;g
movwf 45h
movlw 06h ;I
movwf 46h
movlw 78h ;t
movwf 47h
movlw 08h ;_
movwf 48h
movlw 50h ;r
movwf 49h
movlw 3Eh ;U
movwf 4Ah
movlw 37h ;N
movwf 4Bh
movlw 37h ;N
movwf 4Ch
movlw 06h ;I
movwf 4Dh
movlw 37h ;N
movwf 4Eh
movlw 6Fh ;g
movwf 4Fh
movlw 08h ;_
movwf 50h
movlw 6Dh ;S
movwf 51h
movlw 06h ;I
movwf 52h
movlw 6Fh ;g
movwf 53h
movlw 37h ;N
movwf 54h
movlw 08h ;_
movwf 55h
movlw 7Ch ;b
movwf 56h
movlw 6Eh ;y
movwf 57h
movlw 08h ;_
movwf 58h
movlw 78h ;t
movwf 59h
movlw 79h ;E
movwf 5Ah
call Set4017
call Transfer
call sw5
retlw 00
;Convert 24-bit binary number in secs_low, secs_med, secs_hi
;(found in interrupt handler) into a bcd number
;bcd_u_t, bcd_h_th, bcd_tth_hth, bcd_m_tm.
;values are transferred via the CARRY!
B2D
movf secs_low,w ;save file to secs_lowtemp
movwf secs_lowtemp ; as original files get destroyed
movf secs_med,w
movwf secs_medtemp
movf secs_hi,w
movwf secs_hitemp
b2bcd bcf status,0 ;clear the carry bit
movlw .24 ;for 24-bits
movwf cycles ;cycle counter
clrf bcd_u_t ; clear result area
clrf bcd_h_th
clrf bcd_tth_hth
clrf bcd_m_tm
b2bcd2 movlw bcd_u_t ;make pointer
movwf FSR
movlw .4
movwf loops
b2bcd3 movlw 0x33
addwf INDF,f ;add to both nibbles
btfsc INDF,3 ;test if low result > 7
andlw 0xf0 ;low result >7 so take the 3 out
btfsc INDF,7 ;test if high result > 7
andlw 0x0f ;high result > 7 so ok
subwf INDF,f ;any results <= 7, subtract back
incf FSR,f ;point to next
decfsz loops,f
goto b2bcd3
rlf secs_lowtemp,f ;get another bit
rlf secs_medtemp,f
rlf secs_hitemp,f
rlf bcd_u_t,f ;put it into bcd
rlf bcd_h_th,f
rlf bcd_tth_hth,f
rlf bcd_m_tm,f
decfsz cycles,f ; all done?
goto b2bcd2 ; no, loop
;convert the BCD numbers in bcd_u_t etc
;to decimal in: res_u, res_t, res_h etc
movf bcd_u_t,0 ;
movwf temp
andlw 0Fh ;remove upper nibble
movwf res_u
movf temp,0 ;move temp to w
andlw 0F0h ;remove lower nibble
movwf res_t
swapf res_t,1
movf bcd_h_th,0 ;
movwf temp
andlw 0Fh ;remove upper nibble
movwf res_h
movf temp,0 ;move temp to w
andlw 0F0h ;remove lower nibble
movwf res_th
swapf res_th,1
movf bcd_tth_hth,0 ;
movwf temp
andlw 0Fh ;remove upper nibble
movwf res_tth
movf temp,0 ;move temp to w
andlw 0F0h ;remove lower nibble
movwf res_hth
swapf res_hth,1
movf bcd_m_tm,0 ;
movwf temp
andlw 0Fh ;remove upper nibble
movwf res_m
movf temp,0 ;move temp to w
andlw 0F0h ;remove lower nibble
movwf res_tm
swapf res_tm,1
retlw 00
Clear
;all files from 21h to 6Fh are cleared
movlw 4Fh ;number of files to be cleared =loops
movwf temp1 ;
movlw 21h
movwf fsr
movlw 0
movwf 00h
incf fsr,1
decfsz temp1,1
goto $-4
retlw 00
;Clock the 4017
clock bsf 05h,4 ;clock the 4017 via RA4
call _10uS
bcf 05h,4
call _10uS
retlw 00
;The 12 digits are scanned by making first output of 4017 HIGH
;and making appropriate digits LOW via PIC chip.
;Data is taken from files 60h - 6Bh.
;"1" in bit0 becomes segmentA etc. "1" in bit7=dot.
;move the 12 files to the right and use bit0 again. Repeat 8 times.
;Reads 6 values from EEPROM into files 31h-33h
;secs_low secs_med secs_hi
Read movlw .3
movwf temp1
movlw 30h
movwf fsr
bsf status,rp0 ;select bank1
clrf eeadr
bsf status,rp0 ;select bank1 - this instruction for loops
bsf EECON1,0 ;starts EEPROM read operation, result in EEDATA
movf EEDATA,w ;move read data into w
incf eeadr,1
bcf status,rp0 ;select bank0
incf fsr,f ;fsr starts at file 31h
movwf indf ;put data into file 31h
decfsz temp1,f
goto $-8
retlw 00
Scan movlw 08
movwf ScanLoops
clrf portA
decf portA,1 ;make bits 0 to 3 HIGH to turn off segments
clrf portB
decf portB,1 ;make bits 0 to 7 HIGH to turn off segments
btfsc 60h,0
bcf portA,0
btfsc 61h,0
bcf portA,1
btfsc 62h,0
bcf portA,2
btfsc 63h,0
bcf portA,3
btfsc 64h,0
bcf portB,0
btfsc 65h,0
bcf portB,1
btfsc 66h,0
bcf portB,2
btfsc 67h,0
bcf portB,3
btfsc 68h,0
bcf portB,4
btfsc 69h,0
bcf portB,5
btfsc 6Ah,0
bcf portB,6
btfsc 6Bh,0
bcf portB,7
call clock ;to advance 4017 to output "0"
call _500uS
rrf 60h,1
rrf 61h,1
rrf 62h,1
rrf 63h,1
rrf 64h,1
rrf 65h,1
rrf 66h,1
rrf 67h,1
rrf 68h,1
rrf 69h,1
rrf 6Ah,1
rrf 6Bh,1
decfsz ScanLoops,1
goto Scan+2
movlw 0ffh
movwf PortA ;prevents bright dot
movwf PortB ;prevents bright dot
retlw 00
Set4017 bsf status,rp0
movlw b'00100000' ;Set TRISA in for RA5
movwf 05h
bcf status,rp0
call clock
btfss 05h,5 ;see if 4017 is at 9th output
goto $-2
call clock
retlw 00 ;output "10" on 4017 HIGH = before start of scan
;to prevent anything appearing on screen
;Store Stores the seconds values
;secs_low secs_med secs_hi in EEPROM
;stores every 500 seconds - using fsr did not work!
Store3 bsf flags,0 ;store value only once
bsf status,rp0 ;select bank1
clrf eeadr
bcf status,rp0 ;select bank0
movf 31h,w
bsf status,rp0 ;select bank1
movwf eedata ;
bcf status,rp0 ;select bank0
call write
bsf status,rp0 ;select bank1
incf eeadr,1
bcf status,rp0 ;select bank0
movf 32h,w
bsf status,rp0 ;select bank1
movwf eedata ;
bcf status,rp0 ;select bank0
call write
bsf status,rp0 ;select bank1
incf eeadr,1
bcf status,rp0 ;select bank0
movf 33h,w
bsf status,rp0 ;select bank1
movwf eedata ;
bcf status,rp0 ;select bank0
call write
retlw 00
;detect switches & generates bit 1,2,3,4,5 in Sw_Flag file
Sw bsf status,rp0
bcf trisA,6 ;Make bit 6 output
bcf status,rp0
bsf portA,6 ;make bit 6 HIGH
call _1mS ;create delay to charge 100n
bsf status,rp0
bsf trisA,6 ;Make bit 6 input
bcf status,rp0
call _10mS
call _1mS
btfss portA,6 ;if set, no sw pushed
goto $+3 ;sw pushed
clrf Sw_Flag ;no sw pressed
retlw 00 ;
btfsc Sw_Flag,0 ;test "first-pass" sw flag
retlw 00
clrf count
bsf status,rp0
bcf trisA,6 ;Make bit 3 output
bcf status,rp0
bsf portA,6 ;make bit 3 HIGH
call _1mS ;create delay to charge 100n
bsf status,rp0
bsf trisA,6 ;Make bit 3 input
bcf status,rp0
call _1mS ;count until cap discharged
call _1mS
incf count,f
btfsc portA,6 ;is input HIGH?
goto $-4 ;count exits with 1-5
decfsz count,f
goto $+3
bsf Sw_Flag,1 ;set a flag-bit for first sw
retlw 00
decfsz count,f
goto $+3
bsf Sw_Flag,2 ;set a flag-bit for second sw
retlw 00
decfsz count,f
goto $+3
bsf Sw_Flag,3 ;set a flag-bit for third sw
retlw 00
decfsz count,f
goto $+3
bsf Sw_Flag,4 ;set a flag-bit for fourth sw
retlw 00
bsf Sw_Flag,5 ;set a flag-bit for fifth sw
retlw 00
;Sw1 increments data on display12
sw1 btfsc Sw_Flag,0 ;first pass? If no, return
retlw 00
bsf Sw_Flag,0 ;set sw flag (clr in Sw routine)
incf Jump_1,1 ;incr jump value
movf Jump_1,0 ;set-up jump value for table 1
call table1 ;get display data
movwf 5Bh ;display-12 holds the image to be incremented
xorlw 0FFh ;see if end of table 1
btfss 03,2 ;
retlw 00
clrf 5Bh
clrf Jump_1
goto sw1+3
;Sw2 decrements data on display12
sw2 btfsc Sw_Flag,0 ;first pass? If no, return
retlw 00
bsf Sw_Flag,0 ;set sw flag (clr in Sw routine)
movf Jump_1,0
xorlw 1 ;see if start of table1 is reached
btfss 03,2
goto $+4
movlw 24h ;number of values in table1
movwf Jump_1
goto sw2
decf Jump_1,1 ;decr jump value
movf Jump_1,0 ;set-up jump value for table 1
call table1 ;get display data
movwf 5Bh ;display-12 holds the image to be incremented
retlw 00
;sw3 store
sw3 btfsc Sw_Flag,0 ;first pass? If no, return
retlw 00
bsf Sw_Flag,0 ;set sw flag (clr in Sw routine)
movlw 0Ah
movwf store ;.10 loops
movlw 50h ;start of display
movwf 04h ;load FSR
movf 00h,0 ;move value looked at by FSR into W
xorlw 00h ;see if display is empty
btfsc 03,2
goto $+5 ;display empty
incf 04h,1 ;display not empty
decfsz store,1
goto $-6
goto $+5 ;go to section that moves display left
movf Jump_1,0
call table1
movwf 00h
retlw 00
movf 40h,0 ;look at file 40h
xorlw 00h ;see if it is empty
btfss 03,2
retlw 00
movlw 1Ah
movwf store ;1Ah loops
movlw 40h ;start of block move
movwf 04h ;load FSR
movf 00h,0 ;move value looked at by FSR into W
decf 04h,1 ;decr fsr to 2Fh
movwf 00h ;put value into 2Fh
incf 04h,1
incf 04h,1
decfsz store,1
goto $-6
movf 5Bh,0 ;move character from 12th to 10th display
movwf 59h ;put value into 10th display
retlw 00
;Switch4 = \[ \] advances through extra features
;Feature1 = Count to 10,000,000 seconds
sw4 clrf Sw_Flag ;needed to get back to Sw4 from Sw5! (RUN)
call _10million ;show 10,000,000 SECONdS on display
call Clear
;****************************************************************
;* Start Timer1 to count 1 second in the background *
;****************************************************************
bsf status,rp0 ;Bank 1
movlw b'10000000' ;
movwf OPTION_REG ; x000 0000 x=1= weak pull-ups disabled
bcf status,rp0 ;bank 0
movlw b'11000000' ;b'11000000'
movwf INTCON ;,0 1=RB port change interrupt flag
;,1 1=RB0 interrupt occurred
;bcf INTCON,2 ;1=TMR0 overflowed. Clear overflow flag
;bcf INTCON,3 ;1=enable RB port change interrupt
;bcf INTCON,4 ;1=enable RB external interrupt
;bsf INTCON,5 ;1=enable TMR0 overflow (interrupt)
;bcf INTCON,6 ;1=enable all peripheral interrupts
;bsf INTCON,7 ;1=enable all unmasked interrupts
movlw b'00110101' ;b'00110001'
movwf T1CON ;,7 not used
;,6 0=Timer1 is ON
;,5,4 11=8 prescale (max) 01=1:2
;,3 bit ignored
;,2 This MUST BE SET!!!!!!
;,1 0=int clock
;,0 1=enable timer1
bcf PIR1,0 ;clear TMR1 overflow flag
clrf TMR1L ;clear the Timer1 low register
movlw .12 ;TMR1H needs 244 to produce 499712uS
movwf TMR1H ;put into Timer1 high register
;Timer0 is not used
; will go to isr when overflow occurs in TMR1
;499712uS when prescaler=1:8
bsf status,rp0 ;Bank 1 (Must use Bank1)
bsf PIE1,0 ;,0 1=enables TMR1 interrupt
bcf status,rp0 ;bank 0
call Clear
call Read
call B2D ;produce values for res_u,res_t,res_h,res_th,res_tth
;res_hth,res_m,res_tm from secs_low, secs_med, secs_hi
movlw 02
movwf isr_counter
sw4a
clrf 60h
clrf 61h
clrf 62h
clrf 63h
movf res_tm,w ;start at high end to blank the zero's
call table1
movwf w ;if w is zero, blank the display
btfss status,z
movwf 64h ;show value in 5th display
movf res_m,w
call table2
movwf w ;if w is zero, blank the display
btfss status,z
movwf 65h ;show value in 6th display
movf res_hth,w
call table1
movwf w ;if w is zero, blank the display
btfss status,z
movwf 66h ;show value in 7th display
movf res_tth,w
call table1
movwf w ;if w is zero, blank the display
btfss status,z
movwf 67h ;show value in 8th display
movf res_th,w
call table2
movwf w ;if w is zero, blank the display
btfss status,z
movwf 68h ;show value in 9th display
movf res_h,w
call table1
movwf w ;if w is zero, blank the display
btfss status,z
movwf 69h ;show value in 10th display
movf res_t,w
call table1
movwf w ;if w is zero, blank the display
btfss status,z
movwf 6Ah ;show value in 11th display
movf res_u,w
call table1
movwf 6Bh ;show value in 12th display
call Sw ;see if first button has been pressed
btfss Sw_Flag,1 ;push first button to turn OFF display
goto _bb
bcf Sw_Flag,1
call Sw ;see if first button has been released
btfsc Sw_Flag,1
goto $-3 ;
bcf Sw_Flag,1
call _250mS
call _250mS
_bb call Set4017
call Scan
goto sw4a
;Sw5 is "RUN" Runs characters across display
;files 60h-6Fh get destroyed after SCAN, so
;a 12-file wide window looks at 35h to 40h
;and transfers to 60h-6Bh for scan routine.
sw5 clrf 3Fh ;remove unwanted shifted data
clrf 5Bh ;remove unwanted data
movlw 35h ;start of Ghost files
movwf Ghost
movlw 60h ;window 60h-6Bh
movwf Window
movlw 20h ;creates shift timing
movwf RunLoops ;loops of scan
movf Ghost,0
movwf GhostTemp ;for incrementing
movf Window,0
movwf WindowTemp ;for incrementing
movlw 0Ch ;shift 12 bits of data
movwf _12loops ;12 loops
movf GhostTemp,0 ;look at first Ghost file
movwf fsr
movf 00h,0 ;move value looked at by FSR into W
movwf Save ;save it
movf WindowTemp,0 ;load first window file
movwf fsr ;put into pointer
movf Save,0
movwf 00h ;put value into 60h
incf GhostTemp,1
incf WindowTemp,1
decfsz _12loops,1
goto $-.11
call Set4017
call Scan
decfsz RunLoops,1
goto Sw5+8
incf Ghost,1
movf Ghost,0
xorlw 54h ;end of Ghost files? + spaces
btfss 03,2
goto Sw5+6
movf Sw_Flag,1
btfss 03,2
goto Sw5+2
retlw 00
;Transfer the data in files 50h - 5Bh to 60h - 6Bh
Transfer
movlw 0Ch
movwf temp1 ;no of loops
movlw 50h ;start of 1st block
movwf 04h ;load FSR
movf 00h,0 ;move value looked at by FSR into W
bcf 04h,4
bsf 04h,5 ;turns FSR 50h to 60h
movwf 00h
bsf 04h,4
bcf 04h,5 ;turns FSR 60h to 50h
incf 04h,1
decfsz temp1,1
goto $-8
retlw 00
write bsf status,rp0 ;select bank1
bsf eecon1,wren ;enable write
movlw 55h ;unlock codes
movwf eecon2
movlw 0aah
movwf eecon2
bsf eecon1,wr ;write begins
bcf status,rp0 ;select bank0
writeA btfss pir1,eeif ;wait for write to complete
goto writeA
bcf pir1,eeif
bsf status,rp0 ;select bank1
bcf eecon1,wren ;disable other writes
bcf status,rp0 ;select bank0
retlw 00
;************************************
;* Main *
;************************************
Main call Set4017
call Transfer
call Scan
call Sw ;see if a button has been pressed
movf Sw_Flag,1
btfsc 03,2 ;see if Sw_Flag is clear
goto Main
btfss Sw_Flag,1
goto $+3
call sw1 ;increment data for display12.
goto Main
btfss Sw_Flag,2
goto $+3
call sw2 ;decrement data for display12.
goto Main
btfss Sw_Flag,3
goto $+3
call sw3 ;store
goto Main
btfss Sw_Flag,4
goto $+3
call sw4 ;got to extra features
goto Main
btfsc Sw_Flag,5
goto sw5 ;RUN
goto Main
;********************************
;*EEPROM Values in EEPROM *
;********************************
org 2100h ;locations 00 to 03
de 00h, 00h, 00h
END
GOING FURTHER
You can add further features to the project via the [ ] button.
If you have any other questions, contact Colin Mitchell via email.
© 2021, All Rights Reserved.
Quick Links
Legal Stuff
Social Media
