How the routines in the 5x7 Display work.

Some of the routines in the experiments for the 5x7 Display look very simple but a lot of thought has gone into producing them.
The art to producing a good routine is to make it look simple as this will make it easy to follow and easy to trouble-shoot, if something goes wrong. The delay routine is a typical example. It can be laid out using simple-to-follow instructions or complex instructions. Let’s not worry about the complex approach, our aim is to show how easy it is to program the PIC chip.
The first routine we will cover, is:

THE DELAY

The microcontroller normally advances down the program, carrying out instructions, one at a time, unless it reaches an instruction to take it to another location.
In the simplest delay routine below, the micro will be sent to the Delay routine and carry out the first instruction DECFSZ 1Ah,1. This instruction decrements file 1A (the ,1 tells the micro to place the result in file 1A) and if the result is NOT ZERO, the micro advances to the next instruction that tells the micro to go back to the label “Delay.” In other words the micro loops from the GOTO instruction to Delay until file 1A is zero. When 1A is zero, the micro “jumps over” GOTO Delay and carries out the instruction RETURN.
Normally, an instruction such as MOVLW xxx is placed before the first instruction in the delay routine below to load file 1A with a value for decrementing. If you want the delay routine to perform less than FF loops, file 1A must be pre-loaded. If it is not pre-loaded, the random value (called the junk value) in 1A will be used. When the micro is first turned on, file 1A will contain a random value. But after the delay is executed, file 1A will contain 00.
When the delay routine is executed the second time, it will produce FF loops. The reason is file 1A is first decremented before the “skip if zero” part of the instruction is executed and thus it “rolls over” to FF when the “skip if zero” is performed.
Recap: If file 1A is not zero when the delay is executed on the first occasion, it will be 00 after the first use of the delay routine and thus the second time the delay routine is used, it will produce the longest delay.

Delay  DECFSZ 1Ah,1
       GOTO Delay
       RETURN

The animation below goes over this again: The micro enters the 3-line “Delay” sub-routine and carries out the first instruction. It then advances to GOTO Delay where the micro is told to go to the label “Delay.” It does this until file 1A is zero and then the instruction DECFSZ1 Ah,1 causes the micro to jump over GOTO Delay and execute RETURN.

The duration of the delay above can be worked out as each instruction takes 1 microsecond except when the instruction sends the micro to another location.

Delay  DECFSZ 1Ah,1   1 microsecond    (2 microseconds when file 1A is zero)
       GOTO Delay     2 microseconds
       RETURN         2 microseconds

The duration of the delay above is: (255 x 3)(for decrementing file1A) + 2(when file 1A is zero) + 2(for RETURN) = 769 microseconds.
If you require less than 769 microseconds, file 1A can be loaded with a value (this is called pre-loading). For example, if about 300 microseconds is required, file 1A must be loaded with 100, and in hexadecimal, this is 64h.

Delay  MOVLW 64h
       MOVWF 1Ah
Delay1 DECFSZ 1Ah,1
       GOTO Delay1
       RETURN

Delays are used for many different purposes. An external chip may need to be reset, then clocked. A delay of a few microseconds may be needed to give the chip time to carry out the first operation before it can be clocked. A very short delay can be created with NOP’s. Each NOP takes one microsecond and can be included in the program thus:

      NOP
      NOP
      NOP
      NOP

If a delay is required so that a LED can be viewed on a screen, for example, the delay will have to be long enough for the human eye to view the LED. This requires a longer delay than can be created with a single file - a single file can produce a delay of approx 800 microseconds. This is not long enough for the human eye to view a display. The minimum viewing time is about 100,000 microseconds. To do this we need to decrement two or more files. If we take the example of two files, it is no use placing one file AFTER the other as this will only create a delay double the time of a single file. We must place the files so that they are NESTED, with one file in the centre and the other surrounding the central file. The result is a delay equal to the MULTIPLICATION of the two files. In other words, a two-file sub-routine will create a delay equal to 256 times the delay of a single file. If we have a three-file sub-routine, the result will be 256 x 256 x the delay of a single file. With a two-file sub-routine we can create a delay long enough for the human eye to view an illuminated LED. So, let’s look at a two-file delay.
The two-file delay below is the simplest (because the files are not pre-loaded) and it will create the longest delay as the two files enter the sub-routine containing “00.” The order of the files does not matter in this sub-routine as both are fully decremented. File 1A is decremented first and when it is zero, the micro decrements files 1B and goes back to decrementing file 1A again. This continues 256 times until file 1B is zero, and the micro exits the Delay sub-routine and RETURNs to where it came from, in the program.
This means the micro decrements file 1A 256 x 255 times and each decrement takes 3 microseconds.

This animation shows
how the micro loops through the first two instructions
until file 1A is zero. It then “jumps” GOTO Delay and
carries out DECFSZ 1Bh,1 Instruction. If file 1B is NOT ZERO,
the micro carries out GOTO Delay and repeats the above until
file 1A is zero. This sequence continues until file 1B is zero and the
RETURN instruction is executed.

Suppose you want a shorter delay routine than the one above, but longer than a single-file delay. To do this, file 1B is loaded with a value. This is called pre-loading. The delay routine becomes:

Delay     MOVLW 3Ch   ;Any hex value can be loaded into file 1B
          MOVWF 1Bh
Delay1    DECFSZ 1Ah,1
          GOTO Delay1
          DECFSZ 1Bh,1
          GOTO Delay1
          RETURN

A 3-FILE DELAY

For longer delays, a three-file sub-routine is needed.
Note: We have loaded file 1A with the value 3. The last file in the sub-routine is pre-loaded with a value if you want to adjust the duration of the delay. It is only the last file in the sub-routine that is decremented ONCE. All the other files are decremented 256 times (or 256x256) during the execution of the sub-routine and cannot be pre-loaded (see below for pre-loading). Loading file 1A with 00 produces the longest delay as it is decremented first, then tested.

Delay   MOVLW 03
        MOVWF 1Ah
Delay1  DECFSZ 1Bh,1
        GOTO Delay1
        DECFSZ 1Ch,1
        GOTO Delay1
        DECFSZ 1Ah,1
        GOTO Delay1
        RETURN

The biggest mistake with creating a delay is sending the micro back to a label that reloads a file and prevents the micro getting out of the delay. For instance, the following delay will not work. Can you spot the mistake?

Delay   MOVLW 03      ;This delay will not work
        MOVWF 1Ah     ;Can you spot the mistake?
Delay1  DECFSZ 1Bh,1
        GOTO Delay1
        DECFSZ 1Ch,1
        GOTO Delay1
        DECFSZ 1Ah,1
        GOTO Delay
        RETURN

The last GOTO instruction sends the micro to the Delay label and this re-loads file 1A with 03 and thus the file contains 03, 02, 03, 02, 03, 02 etc. It should be GOTO Delay1. A simple mistake like this will make the difference between a program working or not working. The micro doesn’t make a mistake. It’s only humans that make a mistake. It’s best to copy and paste sub-routines from working programs to prevent mistakes like this. We have a section called LIBRARY OF ROUTINES where you can access routines and use them in your own projects. If you are having trouble getting a program to work, one solution is to remove the last routine you created. But rather than remove it completely and have to re-type it, it can be “removed” by putting a delimiter at the beginning of each line and the assembler will ignore the instruction, thus:

;Delay   MOVLW 03      ;None of these instructions will be assembled
        ;MOVWF 1Ah     ;because the delimiter has been placed at the beginning of the line
;Delay1  DECFSZ 1Bh,1
        ;GOTO Delay1   ;You can simply remove the delimiter when the fault has been fixed
        ;DECFSZ 1Ch,1
        ;GOTO Delay1
        ;DECFSZ 1Ah,1
        ;GOTO Delay    ;Make sure ALL LINES have the delimiter at the beginning of the line!
        ;RETURN

An accurate delay can be produced by loading either or both files with a value and NOPs included to adjust the delay to an exact length of time. For more information on delays see: LIBRARY OF ROUTINES.
An accurate 1/10th second delay can be produced with two files as follows:1/10 sec delay = 100,000uS = 100,000 machine cycles:

Delay   MOVLW 63h   ;99 loops
        MOVWF 1B
DelA    MOVLW C9    ;201 loops
        MOVWF 1A
DelB    NOP         ;This is the inner loop
        NOP         ;This is the inner loop
        DECFSZ 1A   ;This is the inner loop
        GOTO DelB   ;This is the inner loop
        NOP
        DECFSZ 1B
        GOTO DelA
        RETURN

The inner loop takes 5uS NOP(1), NOP(1), DECFSZ(1), GOTO(2) for 200 loops and on loop 201, the instructions are: NOP(1), NOP(1), DECFSZ(2), NOP(1), DECFSZ(1), GOTO(2), MOVLW(1), MOVWF(1). This is repeated 98 times and on the 99th time, the inner loop is executed 200x5uS then NOP, NOP, DECFSZ(2), NOP, DECFSZ(2), RETURN(2).
The total number of uS = 4 + 98(200x5 + 10) + 200x5 + 9 = 99,993uS
You can add 7 NOP’s at the end to produce 100,000uS if needed.

SUMMARY

The maximum delay with a single file is about 1/1,000th of a second.
The maximum delay with 2 files is about 250mS (1/4 of a second)
The maximum delay with 3 files is about 60 seconds.

TONES, NOTES AND TUNES - “SOUNDS”

These are all the same thing to a programmer. The only difference is the accuracy of the sound being produced.
All sounds are produced by toggling a line. The only thing a microprocessor can do is turn a line ON and OFF. As we know, a sound is a very complex waveform and turning a line on and off produce a square wave. This is one of the harshest sounds to be produced and the only way to modify the waveform from the micro is to add wave-shaping circuitry. The simplest wave-shaping circuitry uses a capacitor and resistor network and this can very easily be incorporated into a design.
Another way to improve the tone of the sound is to deliver variable width pulses. This causes the cone of the speaker to move in and out in small increments and it “evens-out” the pulses into a smooth “gliding action” very similar to a curvy waveform. The result is a much milder waveform and sounds like ringing bells at a railway crossing can be produced.
For the moment we will cover the elements of producing a sound by toggling an output line.

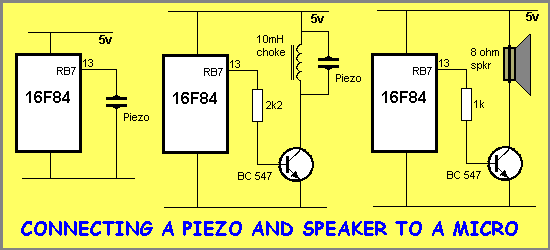

The diagrams below show how to connect a piezo diaphragm and speaker to an output line.

The piezo diaphragm can be connected directly as it does not require any current to drive it (it is voltage driven) but a speaker requires current to drive it and thus a buffer transistor is needed. Connecting a piezo directly to the output of a micro does not produce a very loud sound as the voltage-swing will only be about 5v. To increase the voltage across the piezo, a choke can be added. The collapsing voltage from the choke will be as high as 100v (the BC 547 transistor will zener at about 45-65v and limit the waveform) and thus the volume from the piezo will be greatly increased. The choke and piezo make a TUNED CIRCUIT that actually improves the quality of the sound while increasing the volume. This arrangement requires a small amount of current and must be driven via a buffer transistor. The high voltage produced by the circuit also requires it to be separate from the PIC drive-line.
Circuits 2 and 3 must be turned off when not required as they draw a very high current when in the ON state. This means the program must end with RB7 LOW. If the program is toggling the output line, an instruction to BCF must be included to make sure the line goes LOW.

A TONE

The simplest program to produce a note or tone from a piezo (or speaker) is shown below:

Tone    MOVLW 80h     ;To toggle the piezo on line RB7
        XORWF 06,1    ;Toggle the piezo line
Delay   DECFSZ 1Ah,1  ;Short delay
        GOTO Delay
        GOTO Tone     ;Repeat the sequence

If the piezo is driven by a driver transistor, the output of the microcontroller must be turned off before leaving the sub-routine. The routine below has this feature. Both routines produce the same tone as the frequency for the tone is determined by the value of the Delay. In both cases the delay is decrementing a single file.

Tone1   BSF 06,7      ;this  is the  piezo line.  Turn it ON
        CALL Delay    ;Call Delay
        BCF 06,7      ;Turn OFF the piezo
        CALL Delay1   ;Call the  delay below
        GOTO Tone1    ;Repeat the routine

Delay1  DECFSZ 1Ah,1  ;Delay for tone
        GOTO Delay1

Both the routines above produce a constant sound and do not stop. The second routine can be called from another routine by using the instruction: CALL Tone1

Tone1   BSF 06,7      ;this  is the  piezo line.  Turn it ON
        CALL Delay    ;Call Delay
        BCF 06,7      ;Turn OFF the piezo
        CALL Delay1   ;Call the  delay below RETURN

Delay1  DECFSZ 1Ah,1  ;Delay for tone
        GOTO Delay1

The only problem is, the routine above only produces one cycle of the tone. In other words it only pushes the diaphragm IN and OUT once and no sound will be detected.
The routine must be repeated a number of times to produce a tone. The routine below does this.
To call the Beep-Short routine, use the instruction: CALL Beep-S

Beep-S    MOVLW 40h     ;The duration of the beep (64 loops)
          MOVWF 14h     ;The loop file
BpA       MOVLW  80h    ;The duration of the High and Low
          MOVWF 15h
BpB       DECFSZ 15h,1
          GOTO BpB
          MOVLW 80h     ;To toggle RB7
          XORWF 06,1    ;Toggle RB7
          DECFSZ 14h,1
          GOTO BpA
          RETURN

BEEP… BEEP … BEEP

One of the clever diagnostic tools we have included in the LIBRARY OF ROUTINES is the BEEP routine. It can be placed anywhere in your program (say directly after “setUp” or if a table is present, after the table) and called via the instruction: GOTO Beep1.
This routine is designed to help you locate faults in a program. The biggest problem is trying to work out how far the micro has progressed through a program or routine and by placing GOTO Beep1 at any location in a program, you will get a beep . . beep . . beep if the micro gets to the GOTO Beep1 instruction.
Simulators, emulator and single-stepping programs cannot find all the “bugs” or problems in your programs because they do not go through the delay routines fully and do not take into account the condition of an input line. The only way to hunt-down a problem is with this beep routine.

At the beginning of memory, after Tables, put:

Beep1  CALL Beep
       CALL BeepDel
       GOTO Beep1>

Beep   MOVLW 40h   ;The duration of the beep
       MOVWF 14h   ;The loop file
BpC    MOVLW 80h   ;The duration of H & Low
       MOVWF 15h
BpD    DECFSZ 15h,1
       GOTO BpD
       MOVLW 80h   ;To toggle RB7
       XORWF 06,1  ;Toggle RB7
       DECFSZ 14h,1
       GOTO BpC
       RETURN

BeepDel BSF 06,1  DECFSZ 1A,1
        GOTO BeepDel
        DECFSZ 1B,1
        GOTO BeepDel
        RETURN

To use the Beep1 routine, put GOTO Beep1 at the “problem spot” in your program. It doesn’t matter if you are using files 14h, 15h, 1A, 1B in your programs because the Beep1 routine with take them over. Normally you have to be careful with clashes like this but since Beep1 is the last routine to use the files, it does not matter if they are left with an odd value in them. Make sure the piezo diaphragm is on pin 13 of the PIC, otherwise change MOVLW 80h to MOVLW 40h for RB6, or MOVLW 40h for RB5 or MOVLW 01 for RB0, or MOVLW 02 for RB1 etc.

PULSE-WIDTH-MODULATION

This is a complex name for saying the ON time is longer or shorter than the OFF

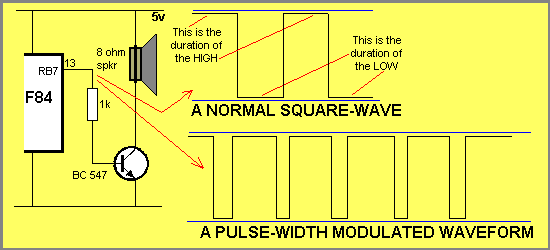

time. In the diagram below, a normal square-wave is show. The duration of the HIGH is the same as the LOW.

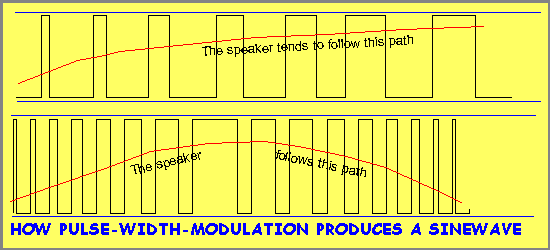

When the HIGH is longer than the LOW, a completely different quality of the sound is produced by the speaker.

Depending on the length of the HIGH and LOW, different qualities in the sound can be produced. When the HIGH is very short, compared to the LOW, the cone of the speaker cannot respond to the rapid RISE AND FALLS, and moves along an “average” path as shown above. This is how a smooth sinewave can be produced from the speaker. The programming for this is very complex and will be covered in a later exercise.

CREATE SMALL ROUTINES

The art to writing a program that can be easily “de-bugged” is to create small “self-contained” routines. When trying to de-bug a program it is much easier to have a complete routine on the page rather than jumping to instructions all-over the place. It may take a few more instructions to have everything in the one place but it makes things a lot easier.
Introduce routines one-at-a-time to the project and test them before adding another. If a sub-routine does not work, try changing some of the variables (called literals in PIC programming) and the instructions, until something happens. Make sure you are not using any of the files from another routine and make sure any of the “exotic” instructions (XOR, BTFSS etc) are actually doing what you think they are doing. It is always best to take code from a previous project or from the Library of Routines - the instructions are tried and tested. But if you are using a different port, or already using some of the files, the code will have to be changed - and that’s when you have to be careful.
Always include a description for each line. Nearly every line can have a description of the reason why the instruction has been used. Don’t simply explain the meaning of the instruction. Write the PURPOSE of the instruction. When you are creating the code, the purpose is obvious. But when you come back after 6 months or so, you will be asking: “What is this instruction doing??” “Why has this particular value been chosen?” etc.
Reading a program in Mnemonics is difficult because the files have values such as 06, 10h, 1A, 20h, 2F and the values loaded into a file also have exactly the same values. When the instruction has the letter “L” in it, the hex value that follows is a number.
The other difficulty in reading the instructions, applies to: ,0 ,1 This sometimes refers to the instruction placing the result in W or in the file being operated on, OR it may refer to bit 0 or bit 1. If the instruction starts with “B” (BTFSS etc) the digit is bit 0 or bit 1. In all other cases the ,0 or ,1 refers to the place where the result of the operation will be stored.
