The GRIPPER in this project is constructed from green laminate and requires a lot of care and skill to shape the components using a hack-saw, file, sandpaper, pliers and cutters.
Some of the components will come partially cut-out and the rectangle cut-out has been predrilled with fine holes so you can snip the inside and it will break away from the surroundings. Do no “punch-out” the rectangle as the laminate will break around the outside.
The two arms need special care and each unwanted part must be carefully broken away in small pieces, otherwise the arm will break.
Once you have removed the unwanted bits and cut along the outside with a hack-saw, the curved inside sections of the arms can be filed with a round or half-round file until the through-hole plating is removed.
The curved edges and corners are smoothed with sandpaper by rubbing the arm on a sheet of sandpaper on a table.
All the other edges are smoothed in the same way until all the components look like those in the photo. This will take over 1 hour.

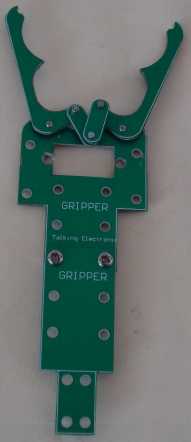

GripperBare

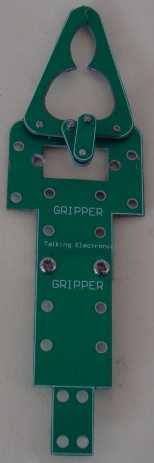

GripperBare 2

A set of nuts and bolts come with the arm and a sheet of instructions comes with the kit.

GRIPPER - PARTS LIST

$3.00 plus postage.
Click [HERE](mailto:colin@elechelp.com?Subject=Buying Boom Gates - Remote Operation kit $22.00 plus $6.50 postage &Body=Please%20e-mail%20the%20cost%20of Buying Boom Gates - Remote Operation kit $22.00 plus $6.50 postage by%20air%20mail%20to%20my%20country:**___****%20%20and%20send%20details%20of%20how%20I%20can%20pay%20for%20it.%20My%20name%20is:____) for details**

Parts for gripper:

6 Green parts that have to cut and shaped using files, sandpaper, pliers and cutters.
Set of nuts and bolts and screws

The GRIPPER needs a SERVO and a CONTROL MODULE.
The Control Module is called SERVO TESTER and it also has other names.

Servo Tester

Kits are available from Talking Electronics for $10.00 plus $6.50 postage.
You will also need a servo and extn lead $5.50
Click HERE to buy kit.

This project has 5 different names and 5 different uses.
It is also know as, and is used in these projects:

REMOTE BOOM GATES
GRIPPER
SERVO TESTER
CONTINUOUS ROTATION SERVO TESTER
POINT CONTROLLER using SERVO (these projects are on TalkingElectronics.com website)

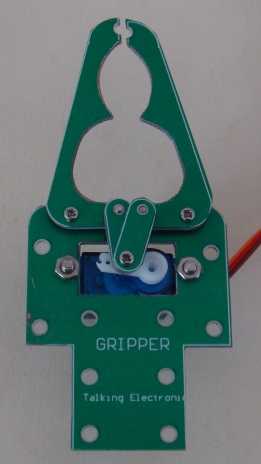

GripperClosed
Servo fitted to Gripper

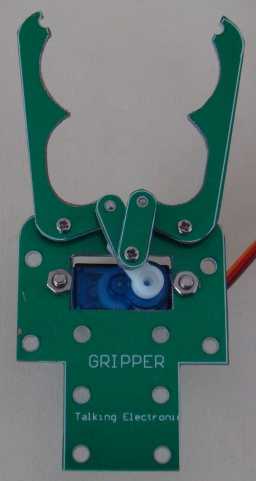

GripperOpen

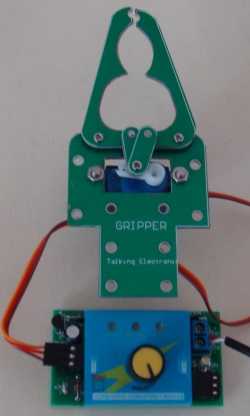

GripperAndControl
Control Module connected to Servo
Turn the knob to open and close the Gripper

The SERVO TESTER project connects a knob on a potentiometer to a servo so you can open and close the Gripper as fast as you turn the knob.

CCPM SERVO MODULE

The heart of the project is a SERVO CONTROL MODULE.
It is fitted to the Printed Circuit Board with stand-offs (connectors). The images below show the CCPM SERVO MODULE.
The printed circuit board is actually a power supply to deliver 5v5 to the module from an AC or DC voltage from 9v AC or DC, but not higher than 12v AC or DC as the regulator transistor will get too hot.

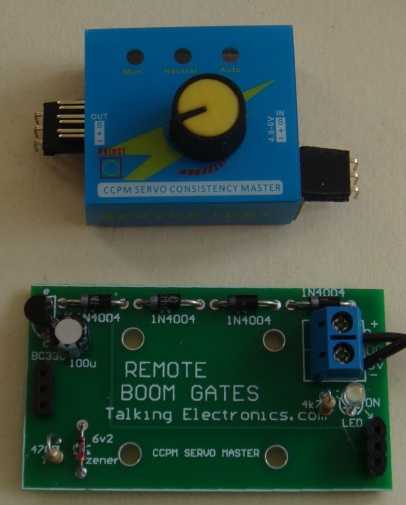

RemoteBoom 2
The 90° connectors fitted to the CCPM Module

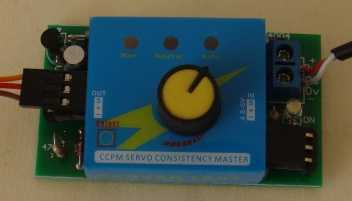

Module PCB top2
The CCPM Module fitted to the PC board

CIRCUIT:

THE CIRCUIT

The heart of the project is SERVO TESTER MODULE. It produces a set of pulses that vary in width and these are detected by the electronics inside the servo to activate the motor. The motor turns and output shaft that is connected to a variable resistor (potentiometer) and then the signal from the pot is equal to the signal being received from the SERVO TESTER MODULE, the motor stops.
The module needs a 5v supply and this has been done with components on the green Printed Circuit Board. We have used a transistor and 5v6 zener to produce a 5v regulated supply.
You can use a voltage from 8v to 14v DC or 6v to 12v AC and the circuit will deliver 5v DC to the module. It has been tested with 12vAC and the transistor gets hot, so just operate the servos for short periods.

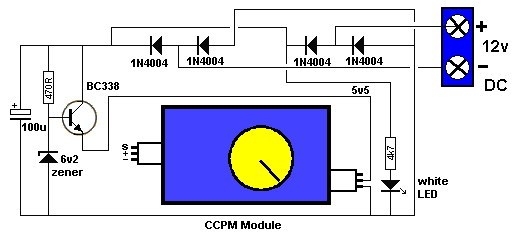

The white LED on the board indicates the supply voltage is present. The circuit has been drawn to follow the components on the board to make it easy to see what the components do.
The 4 diodes are a bridge to allow either AC or DC and it does not matter which way the power leads are connected.
Measuring the 12v supply, the circuit takes 30mA when “sitting around” and up to 100mA when the servo is operating.

EXTENSION LEAD

The kit contains components to make an extension leads, so the control knob can be about a metre from the Gripper. The lead is a 3-wire ribbon cable and the ends are soldered to 3-pin male and female connectors. Make sure you mark the data wire with white paint on each of the plugs and sockets so the leads are connected correctly.

CONSTRUCTION

All the parts fit neatly on the PC board.
The transistor, diodes, electrolytic and LED are identified on the board and must be fitted correctly.
The screw terminals on the 2-connector block are for the power supply leads.

HOW IT WORKS

Once everything is connected, the control knob on the CCPM Module will turn the arm on the servo clockwise or anticlockwise at the same speed as you turn the knob.
The module has a SELECT button that activates the servo automatically and moves the output fully in one direction and then the other and constantly repeats. Pushing the button again makes the servo go to centre position and stays there.
