This article covers all those points missing from all the other HOW TO SOLDER articles.

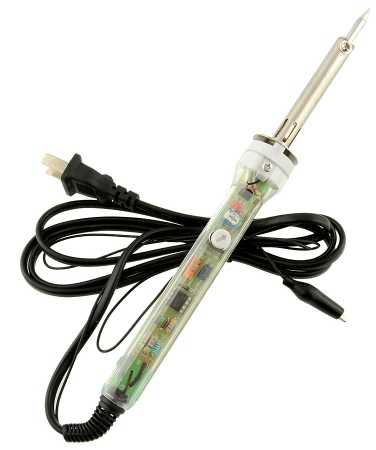

Temperature-controlled Soldering Iron.
It has a poor heat-scale (do not buy)

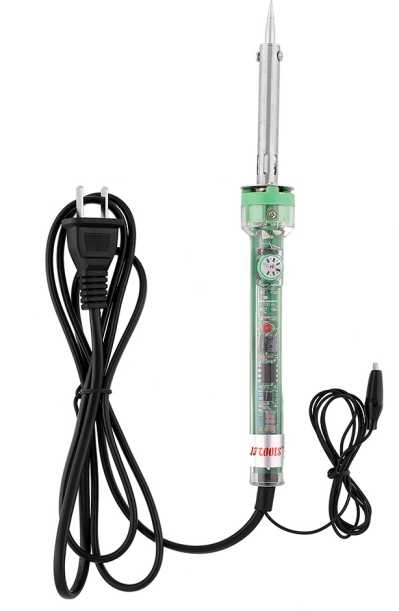

This iron has a much-better temperature scale (dial)

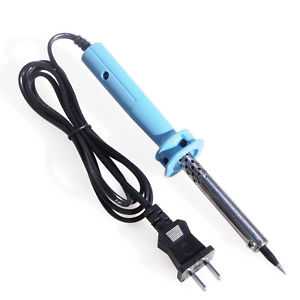

Don’t use the following type of soldering iron. It gets too hot. (The rosin burns off too quickly and it leaves a carbon deposit that prevents the solder sticking to the connection.) The tip gets too hot and and it does not stay “clean.”
Don’t use this type of soldering iron. It gets too hot!

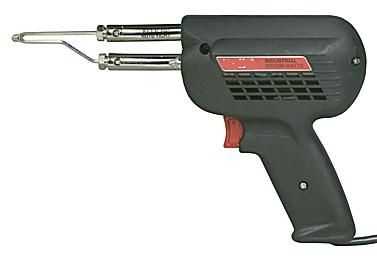

A Soldering Gun is USELESS for electronic work
It gets too hot and is far too heavy to work-with
$3.00 to $5.00 posted (from eBay)

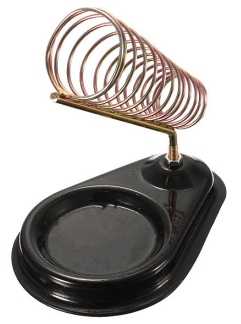

This soldering iron stand comes free with the iron.
But the iron is a “hot” type and NOT recommended

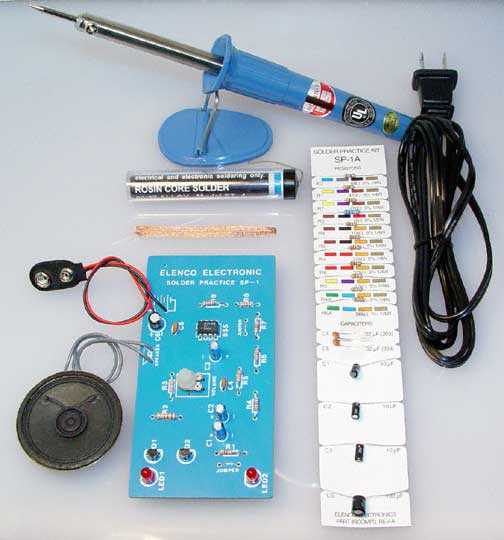

Don’t buy any soldering kit as they only supply cheap HOT SOLDERING IRONS and these are quite unsuitable for electronic work.
See eBay $3.50 posted. Can also be used as a soldering iron stand

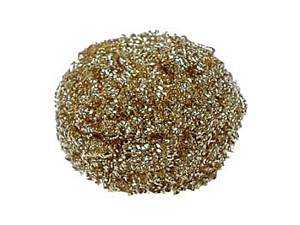

You can also get the “Golden Curls” separately for about $3.00
One bunch will last a lifetime.
It never wears out. Just shake to solder out of the coils.
When you use fine solder, you have almost
NO WASTAGE!!!!!
The solder MUST have flux in the centre of the “wire.”
Do NOT buy ACID FLUX solder. It will eat the wires after a few months if you don’t wash it off.
Do not use 1mm solder. It is too thick.
Use 0.8mm solder or 0.6mm or 0.5mm solder. 0.6mm solder or 0.5mm makes the best connections. You will be amazed at how it improves your soldering.
1mm solder is a WASTE OF TIME. It is too thick. It leaves rosin on the joints, It leaves excess solder on the iron and is much harder to use than fine solder.
Fine solder will improve your soldering 200% just by being fine. This is something no other soldering manual has mentioned. May be the authors have never soldered in their life !!!
60/40 or 63/37 Solder
About $1.00 posted for 1.6 metres
This photo is 0.8mm but try to get 0.6mm or 0.5mm
Chinese solder is USELESS
It does not melt.
It does not run around the joint,
It does not harden with a shiny surface and it does not stick the components together - they fall apart !!!
I cannot use it and I have bought 10 different types of Chinese solder and had to throw them out.
You have to increase the temperature of the iron to get the solder to flow properly and it is only good for unimportant connections such as terminal blocks.
I used up 8 rolls by twisting the Chinese solder with good 0.71mm solder and the good solder flowed across the joint with the junk solder and made a good connection.
I will NEVER buy Chinese solder again.
Good 0.7mm solder is made by:
www.cagroup.com.au
and SAVBIT by Multicore Solders (Aust) Pty Ltd
$1.20 posted
Don’t pay $3.00 to $5.00 !!!
About $4.00
About $3.50
The first thing to do is set the temperature of the soldering iron
There are two ways to solder.
But, what is the correct temperature?
Here are two ways to set the soldering temperature:
Some servicemen increase the temperature further to do VERY QUICK SOLDERING, but this is ONLY for EXPERTS.
Soldering with a high temperature allows you to make a connection very quickly and the component DOES NOT heat up any more than soldering with a lower temperature.
But a soldering iron without temperature control is TOO HOT and it can easily damage the components, especially LEDs, transistors and IC’s. Temperature-controlled soldering irons are SO CHEAP. For $12.00 you get an item to take the place of a $240.00 Soldering Iron Station.
Soldering is entirely to do with CLEANNESS.
Solder will not stick to a dirty wire. It will just “sit there” and the wire can be pulled out.
Solder does not clean a wire.
It is the resin or rosin in the middle of the solder-wire that cleans the connection.
But the resin does not work unless it is heated and melted.
When you are soldering, you don’t want the solder. YOU WANT THE RESIN.
But the life of the resin is only 1 to 3 seconds before it has evaporated.
This means you CANNOT transport resin on your iron.
By the time the iron has reached the connection, the resin has evaporated.
The resin only works when it is heated AT THE PLACE where the connection is to be made.

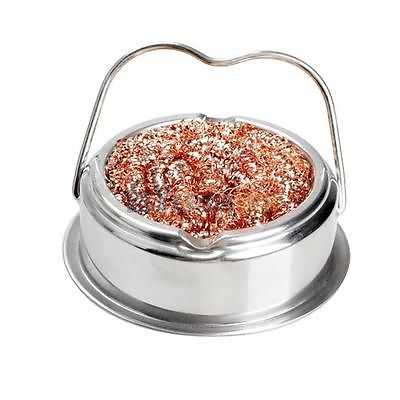

That’s why the iron must be as clean as possible by pushing it through the copper-wire ball shown above.
The ball will remove the old solder and clean the tip. Wiping the tip on a wet sponge DOES NOT CLEAN THE TIP. It just leaves a fine film of contamination on the tip that is a result of touching the plastic sponge.
Place the iron on the joint to be soldered and immediately bring 0.8mm or 0.6mm solder to touch the iron from the opposite side of the connection.
At the moment you only want the rosin to do its job. Let the rosin melt and clean the components.
NOW YOU WANT THE SOLDER …
Add a little more solder and allow it to run all over the connection and make a smooth and shiny result.
Remove the iron and don’t move the connection for 3 seconds.

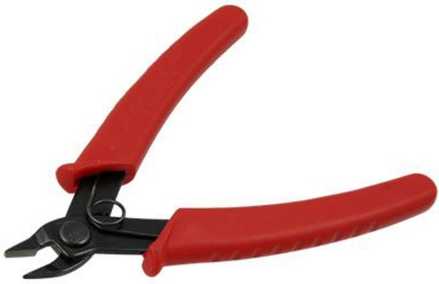

Cut or trim the wire with side-cutters at the point where the wire emerges from the solder. DO NOT cut through the solder and DO NOT cut the wire before soldering.
Using 0.5mm solder will prevent excess solder remaining on the joint or on the iron.
Since using 0.5mm solder I have never had to remove excess solder from a joint or the iron. That’s why a spool of 0.5mm solder lasts much longer than 1mm solder.
There is no wastage !

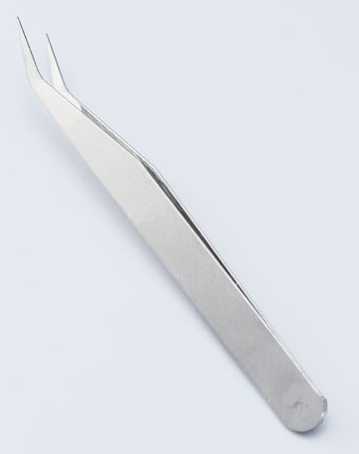

You will need tweezers to hold the component:
$1.00 on eBay
The tweezers can be straight or bent.
Step 1:

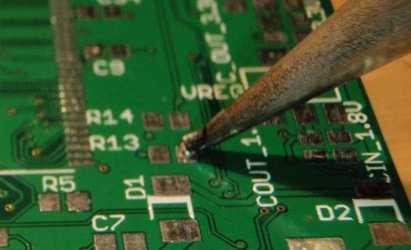

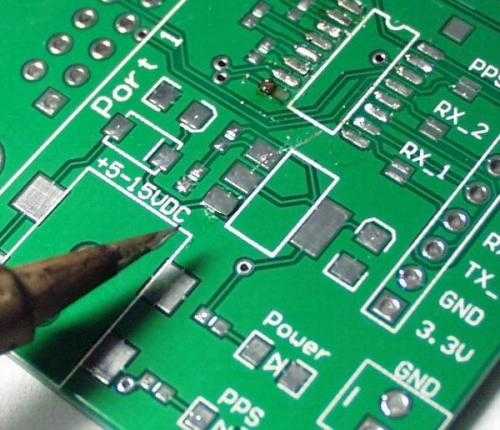

Add a very small amount of solder to one pad:
Adding a small amount of solder to one pad
Step 2:

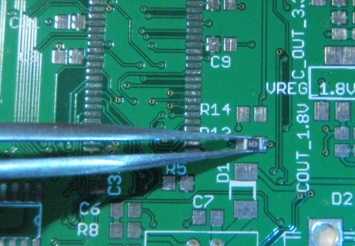

Pick up the component with tweezers with the value of the resistor showing. (Do not solder the resistor up-side-down as you cannot see the value!!!! BIG MISTAKE !)
Use the iron to melt the solder that is already on the land and this will keep the resistor in place.
Make sure the resistor is flat against the PC board by lightly pressing on it and slowly re-melting the solder if it is tilted or out of alignment.
Make sure the resistor is square with the sides of the board and exactly aligned on the lands.
Now solder the other pad. You can re-solder the first pad again and add a small amount of solder to make a good connection.
Holding the chip in place while the first end is soldered
Soldering the other land
Here is a Chisel point tip (Screwdriver tip)
It is too big for fine soldering

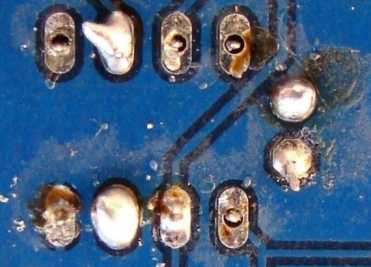

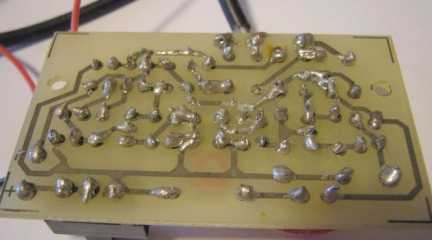

Here are some messy joints.
If you follow our guidelines, you will not finish up with faulty connections.
Fine solder is the secret. A temperature-controlled iron is essential and cleaning the tip on a copper-wire ball will help to produce good results.
This is not very good soldering.
If you use 0.5mm solder, the joints will improve 200%.
All the PC boards I produce have a solder-mask. This is layer of green paint (printing) over the tracks so you don’t see the bare tracks (called traces).

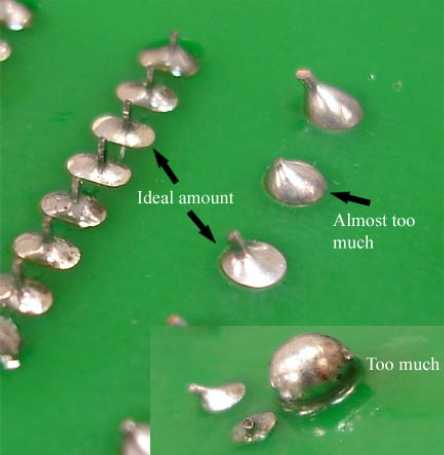

Some very good connections and some poor connections

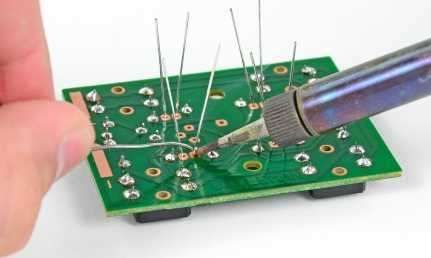

Here are some good soldering joints made with a cheap “hot” soldering iron. You can see the barrel has got too hot.
You can make good joints with this type of iron if you work quickly and keep the tip clean.

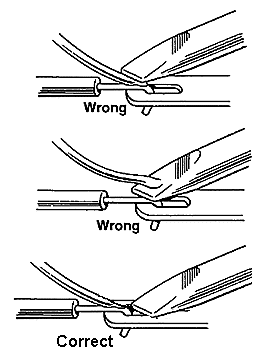

This diagram shows the wrong way to add solder to a connection.
Never add solder to the iron. The flux just burns off and is wasted.
The third diagram shows how to add solder to the tag and push the solder towards the iron to get it to melt.
I don’t like “screwdriver” tips.
They are not for delicate electronic work.
The image shows the iron ready to place a SMALL amount of solder on one of the lands, for the Power Transistor. Use a soldering iron with a “pointy tip” (conical tip). A “screwdriver tip (chisel tip) is not ideal for fine electronic work. Only a “point tip” will allow you to solder all types of fine connections.
Place the transistor on the lands and hold it in place with tweezers while re-heating the solder.
This will prevent the transistor moving.
Make sure it is touching the PC board.
Solder all the “legs” ( pins) and “tab.”
Re-solder the first leg to make sure it is fully soldered.

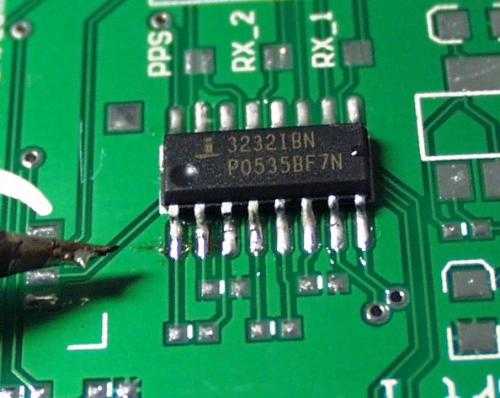

Here is a very neatly soldered IC
See the excess solder on the iron. He has not used very fine 0.5mm solder !!!!

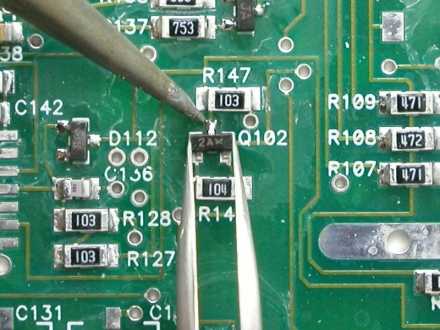

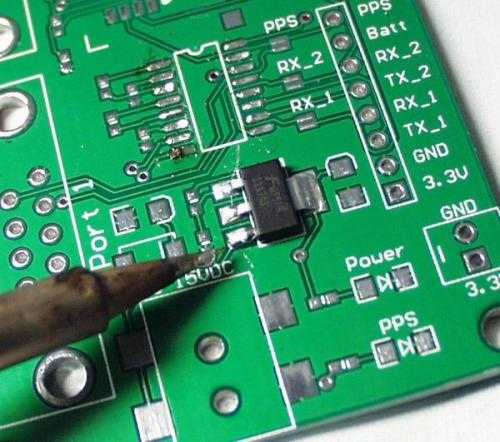

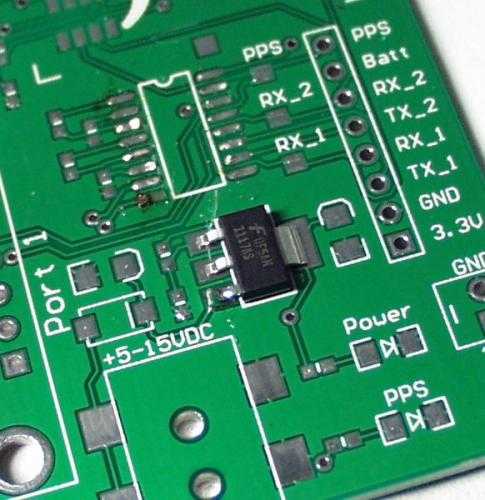

Holding a Surface Mount transistor while soldering the first leg.
A very small amount of solder has already been placed on the land and is re-heated very quickly to hold the transistor in place.
The other two legs can now be soldered.

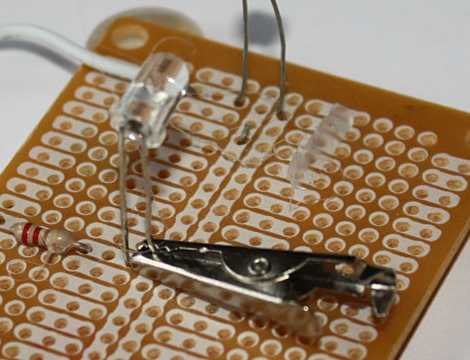

The photo shows a clip used as a heatsink to prevent damaging the LED.
If you follow this article and use a temperature-controlled soldering iron and 0.5mm solder, you will not need to use a heatsink as the joint will be soldered quickly.
If you every damage a transistor or LED, you are taking too long.

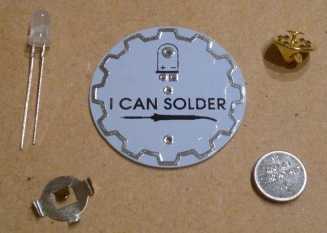

Here is a “I can Solder” badge kit from the web for about $3.00 to $6.00
It uses a colour-changing LED and 3v lithium cell
You should not produce blobs and shorts when soldering if you use the method we have described above. It is virtually IMPOSSIBLE to leave too much solder on a joint if you use 0.5mm solder.
However a blocked hole will prevent fitting a through-hole component and the hole must be unblocked.

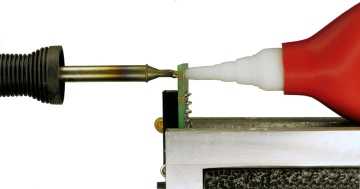

The quickest and easiest way is to heat the hole (the land around the hole is called the doughnut or pad) with the tip of the iron inside the hole.
Immediately take the board away and tap it as strongly as possible on the bench. The solder will fly out of the hole. This is especially a problem if the hole is “plate-through.”

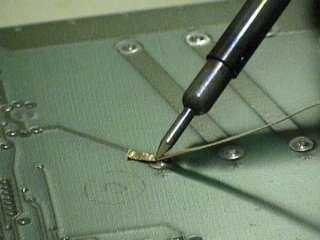

If the hole is on a single-sided board, you can use DE-SOLDER WICK. Sometimes you can remove the solder from a plate-through hole and remove the component. It depends on the size of the hole and the thickness of the wire. Sometimes you can get rid of most of the solder and pull the lead when the iron is re-heating the joint.
The solder was removed from the 14 pins with solder wick.
You need to be careful and not overheat the lands as they can easily lift off the board if overheated.

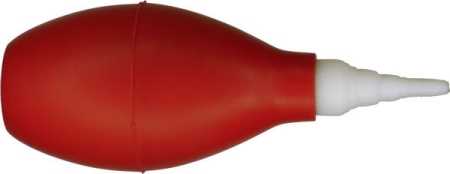

Another method is to use a DESOLDER BULB. These are expensive and the cheap ones don’t work because the hole is not large enough.
About $8.00 plus postage
This bulb DOES NOT WORK. The hole is too small
Solder Sucker $2.00 posted on eBay
You can also use a solder sucker. This costs only $2.00 and works quite well.
Here is another article on soldering Surface Mount components and a list of identification codes for surface-mount transistors and diodes. Surface Mount
Using and Soldering SURFACE MOUNT components is quicker, cleaner, easier and more rewarding than soldering through-hole components.
As soon as you agree, you have mastered SURFACE MOUNT.
The art of desoldering is just as important as soldering.
There are many times when you will want to remove a component from a PC board without causing any damage.
If you heat the component too much, pull it too hard or wiggle it too much, the track will be damaged.
Removing a component from a double-sided board that has vias from one side to the other is slightly more difficult as the hole remains filled with solder.
You can also get a lot of valuable components from old PC boards:

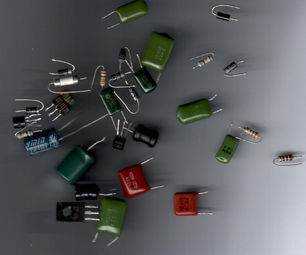

Here are some components salvaged from PC boards

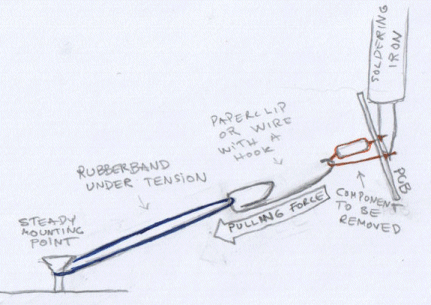

Put a hook on the component and a rubber band
The fastest way to remove a component is to connect a hook and rubber band and pull on the component while heating both leads at the same time.
A loop of string is better as it wont sent the part flying off.
If you are very clever, you can pull on the component while holding the board and heat the leads. This way you don’t need any help from a hook or string.
If you want to fit another component in the same holes, you will need to remove the solder from the holes.
This is done by poking the tip of the iron into the hole and making sure the solder has melted. Now, IMMEDIATELY tap the board on a hard surface and the solder will fly out of the hole.
Any remaining solder can be poked with a pin as the pin will not attract the solder.
Multi-leaded components such as IC’s and sockets need expensive solder-pots or hot air guns as you cannot get to all the pins quick enough.
A 3-leaded transistor is about as far as you can go.
Practice on JUNK boards before working on something you cannot afford to damage and you will be ready for the total field of SOLDERING and DESOLDERING.
