RGB LED FX
Colin Mitchell
Colin Mitchell
May 22, 2011
Make sure to subscribe to our newsletter and be the first to know the news.

Table Of Contents

01
The CIRCUIT
02
THE RGB LED
03
SURFACE-MOUNT COMPONENTS
04
INSTRUCTIONS FOR USE
05
TO CREATE YOU OWN SEQUENCE.
06
TO MAKE ANY SEQUENCE THE FIRST SEQUENCE
07
THE SEQUENCES
08
PROGRAMMING THE CHIP
09
PROGRAMMING LANGUAGE
10
CONSTRUCTION
11
The PROGRAM
12
GOING FURTHER
13
RGB LED FX Parts List

[Kits are available](mailto:colin@elechelp.com?Subject=Buying RGB LED FX kit&Body=Please e-mail the cost of RGB LED FX kit by air mail to my country:****___**** and send details of how I can pay for it. My name is:____) for this project from Talking Electronics for $15.00 plus postage.

You will also need:

  • PIC2 USB Burner (MPASM and MPLAB come with PIC2) and it includes USB lead, plus a 6pin to 5pin adapter @ $2.50, if you want to re-program the micro.
  • PIC12F629 Data Sheet (.pdf 4,926KB)
  • Instruction Set for PIC12F629
  • blank12F629.asm template
  • PIC12F629.inc

See more projects using micros:

This project produces a number of effects on an RGB LED.
You can also produce your own sequence (by using the 3 buttons) and store it as sequence 1.
You can build the project on Matrix Board or buy a complete kit with pre-programmed chip.
You can also program the chip yourself and use this project as the beginning to: ”learning to write your own programs.”

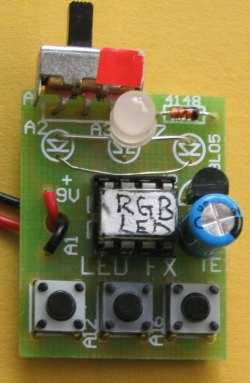

RGB LED FX top
RGB LED FX on PCB. Note the link below the RGB LED

RGB LED FX on PCB. Note the link below the RGB LED

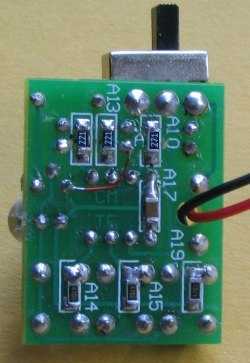

RGB LED FX underside
Underside of LED FX showing SM components

Underside of LED FX showing SM components

The PC track is cut just before the 221 SM resistor and just after the 271 SM resistor (see note below).
Note the link using enamelled wire.
The 47k SM resistors are not needed as the micro has 47k internal pull-up resistors enabled.

![](images/RGB LED Fx.gif “RGB LED FX Circuit”)
RGB LED FX Circuit

The CIRCUIT

The circuit is very simple. It is just an RGB LED and 3 switches. All the work is done by the micro.
We have added a 5v regulator and diode so the project can be connected to all sorts of voltages and the regulator will not be damaged if the supply is connected the wrong way around, as the diode will simply not conduct. .
It will work on 6v if the regulator is removed or on 7v to 15v (AC or DC) with the regulator fitted.
This makes it suitable for a 9v battery or the AC supply from a model railroad. I know you are going to say “it is inefficient using a 9v battery” but it is convenient. In fact you can use a set of very old cells, providing they produce at least 8v and this is a good project for using old cells.

The project creates a number of effects on an RGB LED, including PWM (Pulse Width Modulation) to show the effect of turning on the LED(s) for a very short period of time then turn the LED(s) off for a longer period of time.
This will reduce the brightness and also consume less current. When this is done to all three LEDs a range of colours can be created. This involves delivering a different percentage of ON-TIME for each LED to produce a specific colour.
The major purpose for the introduction of the RGB LED was to produce a wide range of colours, plus white.
This allows it to be used for screens such as TV screens, to reproduce moving images.
Any sort of display requires a lot of LEDs and this requires many drive-lines. A single 8-pin micro an only drive one or two LEDs and we have opted to use a single LED and show the range of effects that can be produced.

THE RGB LED

The RGB LED supplied in the kit is high-bright. It is too bright to look at directly but can be used for all sorts of applications and effects. You can reduce the brightness by increasing the value of the current-limiting resistors to suit your own application. The PWM sequences reduce the brightness and you can observe how effective they are at reducing the current consumption. We have used 220R and 270R resistors to reduce the brightness so the output is not too bright.

SURFACE-MOUNT COMPONENTS

We have used SM components for convenience, ease-of-use and to make the PC board as small as possible. Once you start using them you will never go back to through-hole components.
They also make the project look simpler as they “disappear” under the board; or if you are developing a single-sided project, they reduce the size of the final design. You will need fine tweezers to hold them in place while one end is soldered.
Always use very fine solder as you only need very little for each component and the main reason for adding extra solder is to take advantage of the flux to clean the connection. Always solder resistors with the value showing.

So, we have two areas of interest. Construction and programming and it’s up to you to take it on.
The project is designed for all sorts of uses, including models such as train layouts, alarms and similar effects.
But the real thing we want to get across, is programming.
This is another example of using a simple 8 pin chip to provide a number of features that would take many logic chips (such as counters and gates) and lots of components to duplicate.
It also highlights our method of hand-coding as an effective way to produce a program.
This project uses about 400 instructions to produce the effects and it uses the EEPROM to store the sequence produced by the user (sequence 1) - and show it at turn-on.
In this respect, some of the sub-routines in the program are quite complex and suitable for the advanced programmer. However, if you are a beginner, you can read through the program and most of the sub-routines will be easy to follow as each line of code is explained. You have to start somewhere and this project offers a challenge.
Most projects with a program of this complexity are only available as a pre-programmed chip or only the hex code is available. There is usually no attempt at educating the reader in programming.
That’s the difference between our projects and all others.
We offer a learning curve.
For every hour of effort you put into reading, building and using one of our microcontroller projects, you get the experience of 100 hours of effort that has been put into the design to make it appear simple.
All you have to do is start…

INSTRUCTIONS FOR USE

There are 25 sequences.
The first sequence can be created by the user. It currently produces a very slow flash-rate as it has not be programmed. The other 24 sequences are pre-programmed.
Turn project ON then push the first button (called SwA) and hold it down and the sequence will change to the next sequence.
Release the button and allow the sequence to cycle.
Push SwA again and the sequence will change.
You need to allow each sequence to cycle with the button not-pressed and then push SwA and keep it pressed until a new sequence shows. This is due to the debouncing in the program.
See below for the list of 25 sequences.

TO CREATE YOU OWN SEQUENCE.

  1. Press SwA and at the same time, turn project ON.
  2. Release SwA and press the switches in any order (up to 15 steps). A step or delay cannot be longer than 2 seconds as the program will “time out.” When finished, wait 3 seconds and the sequence will show on the LEDs.
  3. Turn project off and on. The new sequence will appear as the first sequence.

TO MAKE ANY SEQUENCE THE FIRST SEQUENCE

Any of the sequences can be saved as the first sequence, as follows:

  1. Turn the project ON and increment the sequences.
  2. To save the desired sequence, press SwB. The display will die.
  3. Turn project OFF then ON. The desired sequence will show at start-up.
  4. To delete this feature, push SwC and at the same time, turn project ON.

THE SEQUENCES

There are 25 pre-programmed sequences. Here is the list:

  • Sequence 1: This sequence is created by you. See above for details on creating your own sequence.
  • Sequence 1A: Most of the colours from an RGB LED
  • Sequence 2: red LED @ 50% PWM
  • Sequence 3: green LED @ 50% PWM
  • Sequence 4: blue LED @ 50% PWM
  • Sequence 5: white @ 50% PWM
  • Sequence 6: red LED @ 20% PWM
  • Sequence 7: green LED @ 20% PWM
  • Sequence 8: blue LED @ 20% PWM
  • Sequence 9: white @ 20% PWM
  • Sequence 10: slow red, green, blue change @ 100% PWM
  • Sequence 11: slow red, green, blue change @ 50% PWM
  • Sequence 12: slow red, green, blue change @ 20% PWM
  • Sequence 13: red, blue, red, blue
  • Sequence 14: red on red off
  • Sequence 15: green on green off
  • Sequence 16: blue on blue off
  • Sequence 17: white on white off
  • Sequence 18: red red red blue blue blue
  • Sequence 19: random white flicker
  • Sequence 20: slow fade up-down red
  • Sequence 21: slow fade up-down green
  • Sequence 22: slow fade up-down blue
  • Sequence 23: slow fade up-down white
  • Sequence 24: fast fade up-down white

PROGRAMMING THE CHIP

The kit comes with a pre-programmed PIC chip but if you want to program your own chip or modify the program, the .hex file is available as well as the assembly file, so you can see how the program has been written and view the comments for each line of code.
The PIC12F629 is one of the smallest micros in the range but you will be surprised how much can be achieved with such a tiny micro.
The program contains sub-routines to produce delays, sequences on the display and both read and write EEPROM jobs that require accurate code - including a special sequence - called a handshaking sequence that prevents the EEPROM being written due to glitches.
Even a program as simple as this is not easy to put together and to assist in this area, we have provided a whole raft of support material.
Not only do we provide a number of programs with full documentation but our approach to programming is simple.
It involves a method of “copy and paste” whereby sub-routines are taken from previously written code and copied into your program. Any modifications are made in very small steps so that each can be tested before adding more code.
This is exactly how we produce a complex project. Each step is written and tested before adding the next step.
This saves a lot of frustration as it is very easy to add a line of code that is incorrect and get an unsuspected result.
If you follow our suggestions you will buy a programmer (“burner”) called a PICkit-2 if you are using a laptop. It is the cheapest and best on the market and comes with a USB cable and 2 CD’s containing the programs needed to “burn” the chip. If you are using a desk-top and/or tower with a serial port, you can use a cheaper programmer called MultiChip Programmer from Talking Electronics. You will also need NotePad2 to write your .asm program. This can be downloaded from Talking Electronics website. You will use RGB LED_FX.asm or RGB LED_FX-asm.txt as a template for your program, plus a 6 pin to 5 pin connector that fits between the burner and the project. This is also available on Talking Electronics website.
As we said before, this project is for medium-to-advanced programmers as it is very compact and does not have in-circuit programming pins.
To be able to modify the chip you will need a programming socket and this can be obtained from one of our other projects that contains the 5 pins for in-circuit programming.
You can then put the chip into the other project to be programmed and modified and re-fit it into this project for execution.

PROGRAMMING LANGUAGE

There are a number of kits, programs and courses on the market that claim and suggest they teach PIC Programming.
Most of these modules and courses use a PIC microcontroller as the chip carrying out the processes, but the actual programming is done by a proprietary language invented by the designer of the course.
Although these courses are wonderful to get you into “Programming Microcontrollers” they do not use any of the terms or codes that apply to the PIC microcontroller family.
All our projects use the 33 instructions that come with the PIC Microcontroller and these are very easy to learn.
We use the full capability of the micro and our pre-programmed chip is less than the cost of doing it any other way.
In addition, anything designed via our method can be instantly transferred to a PIC die and mass produced. And we use all the input pins and all the memory of the chip. The other approaches use less than 25% of the capability of the memory and one of the pins is not available.
In fact it would be difficult to reproduce this project via any of the opposition methods. It would require a larger chip and more expense.
You can use our method or the opposition. Just be aware that the two are not interchangeable.
Ours is classified as the lowest “form” (level) of programming - commonly called machine code - invented in the early days of microprocessors - and now called mnemonic programming as each line of code is made up of letters of a set of words. The opposition uses a higher level language where one instruction can carry out an operation similar to a sub-routine.
But you have to learn the “higher level language” in order to create a program. And this requires a fair amount of skill and capability.
It sounds great and it is a good idea. But if you want to learn PIC programming, it does not assist you. It is “a step removed” from learning PIC language. The other disadvantage of the opposition is the “overhead.” The 1,000 spaces allocated for your program is filled with pre-written sub-routines. You may require only 10 of these sub-routines but ALL of them are loaded in the memory space. And they take up all the memory.
You have no room for your own program.
To get around this the opposition uses the 128 bytes in EEPROM to deliver instructions on how to apply the sub-routines. This provides about 30 powerful instructions using their language called BASIC (or a similar language).
It’s a bit like selling a diary filled with all the paragraphs you need to express yourself, and leaving a few blank pages at the back for you to write single lines such as: see page 24, paragraph 7, see page 63 paragraph 4, to create your diary entries.
It depends on how much you want to be in charge of writing a program. Using our method is like writing your own auto-biography. Using the opposition is like getting a “ghost writer.”
When using a higher level language to create a program, you have absolutely no idea how the code is generated for the micro.
In some of the developmental kits, the code is “locked away” and you are NEVER able to access it.
Everything runs smoothly until a fault appears. With our method you can see the code. With the other methods, you cannot see the code - it’s like doing key-hole surgery without the advantage of an illuminated endoscope to see what you are doing.
Everything has its place and our method of hand-assembly is only suitable for very small micros and you will eventually need to “learn a high level language.” The PIC12F629 has over 1,000 locations for code and this equates to more than 20 pages when printed, so this is about the limit to doing things by hand.
But our drive is to show how much can be done with the simplest devices on the market, at the lowest cost.
Anyone can show you high-technology at a high price but this is not where you start and this is not where you get enthusiasm.
We provide the things to get you started. That’s the difference.

CONSTRUCTION

The RGB LED FX project is built on the same PC board as LED FX.
Only two modifications have to be made. Cut a track in two places as shown in the second photo below and fit a tinned copper wire link between two holes on the top of the board as shown in the first photo. The first photo shows how to fit the leads of the RGB LED:

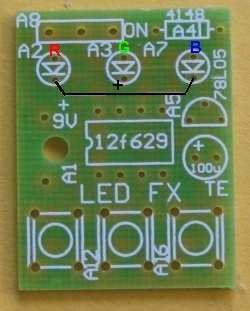

RGB LED FX PCBtop
RGB LED FX PCB top

RGB LED FX PCBunderside cut tracks
RGB LED FX PCB under side cut tracks

The leads of the RGB LED are bent as shown in the following diagram so it fits down the holes in the PC board:

The kit of components comes with all the parts you need to get the project working, including a pre-programmed chip and PC board.
To modify the program you will need a PICkit-2 programmer and this comes with 2 CD’s containing all the software needed for In-Circuit Programming.
You will also need a lead (comes with PICkit-2) to connect the programmer to your lap top via the USB port and an adapter we call 6pin to 5 pin Adapter to connect the PICkit-2 to your project.

6Pin 5PinConnectorUnder
6 pin to 5pin Adapter

6pin to 5pin Adapter

6Pin 5PinConnector
Adapter connected for In-Circuit Programming

Adapter connected for In-Circuit Programming
(the chip is placed in another project for in-circuit programming or any PC board with 5 In-circuit Programming pins)

The PROGRAM

The program does a bit of detecting when turned on. It detects to see if a bit has been set in EEPROM to tell the micro to go to a required sequence or start with sequence 1.
It also detects if switch A or C has been pressed at the instant the project is turned on so that the micro is directed to the sub-routine where the user-sequence can be entered or if the EEPROM bit is to be cancelled.
All this gets done in the SetUp routine and then the micro goes to Main.

In Main, the program increments a “jump” file and calls a table where it finds a directive to go to a particular sub-routine.
The sub-routine is executed and the micro goes back to Main where it looks for a release of SwA. This forms part of a key debounce as the key must be fully debounced as it is advancing the micro through the sequences.
To provide a totally reliable debounce, the key is detected as not being pushed for the duration of a whole cycle of a sequence and a separate loop is then executed where the key can be detected as being pushed, to advance the program to the next sequence.
To create your own sequence as sequence1, the project is turned off and SwA pressed while turning the project ON.
This sends the micro to a sub-routine called Attract.
As soon as SwA is released, the program starts to time the duration when a switch is not pressed and it “times-out” after 2.5 seconds.
The program also times the duration when a LED is illuminated. It also accepts 2 or 3 LEDs illuminated at the same time. These are all clever instructions that need to be looked at to see how they operate.
Up to 15 steps can be entered and each step occupies three bytes. The first value identifies the illuminated LEDs, the second byte identifies the ON duration (in increments of 5mS) and the third byte identifies the OFF time.
These 45 bytes are contained in files 30h to 5Fh.
When a switch is not pressed for 2.5 seconds, the program “times out” and sends the values to the EEPROM. It then shows the sequence on the LEDs.
If the project is turned off and on again, this sequence will be displayed as sequence1.
To replace the sequence with something else, simply repeat the steps above.
If you want one of the pre-programmed sequences to appear each time the project is turned on, simply advance through the sequences by pressing SwA and when the desired sequence is playing, push SwB.
This will record your choice. Turn the project OFF then ON again and the chosen sequence will be displayed.
To remove this feature, press SwC when the project is off and at the same time, turn the project ON.
All these feature have been added to the program, one at a time, and it is important to add them in the correct order. For instance, you can only add a removal feature after the initial feature has been produced. Reading and writing to the EEPROM is a most complex operation and the instructions must be laid out as shown in the program, as they include a hand-shaking sequence. When you need this code it is copied and pasted in its entirety, to prevent a mistake.
Nearly every instruction has a comment to explain not only what it does, but why it was chosen.
If you think you can start programming without reading programs from other developers, you are wasting your time.
No individual can work how to do many of the tasks via the simplest set of instructions and you will find some programmers have used complex code to do the simplest task.
That’s why you have to pick out the “wheat from the chaff” and remember a good routine, while discarding the over-complex sets of code.
This brings up an important point.
Don’t expect to be an A1 programmer in a week. It takes time to absorb the skills of programming and it is really only understood by a microscopic percentage of electronics enthusiasts. If you take it up and understand it, you are one of the microscopic few.
It is a world that, once you are in, will open up a whole new field of ideas and development.
It’s like taking up a new spoken language and, in fact, a program reads like a book, so the analogy is very close.
There are some very “clever” instructions such as XOR where you can compare two files by using the XOR function and determine if they are the same. And very powerful instructions such as djnz that decrements a file and if it is zero, the micro jumps over the next instruction.
Other clever instructions transfer the contents of a file to another via the “carry.”
You cannot be expected to know these “tricks” unless you study programming. That’s why we are here.

Here are the files you will need:

;RGB LED FX.asm
;****************************************************
;RGB LED FX.asm                                     *
;25 sequences to demonstrate the possibilities for  *
;an RGB LED                                         *
;22-5-2011                                          *
;****************************************************
;
;
;            --+---------------+-------+-------+---------- +5v
;          |              _|_     _|_     _|_
;              |             R\\ /    G\\ /    B\\ /
;              |Vdd ---v---    |       |       |
;              +---|1   Gnd|  | |     | |     | |
;                  |       |  | |220R | |150R | |150R
;   +--------------|GP5    |   |       |       |
;   |              |    GP0|---+       |       |
;   |     +--------|GP4 GP1|-----------+       |
;   |     |        |       |                   |
;   |     |     +--|GP3 GP2|-------------------+
;   |     |     |  -------
;   o     o     o  PIC12F629
;  A /   B  /  C /
;   /      /    /            common anode RGB LED
;  |      |    |
; -+------+----+---------------------------------------- 0v


    list    p=12F629
    radix   dec
    include "p12f629.inc"

        errorlevel  -224    ; Don't complain about tris
        errorlevel  -302    ; Don't complain about BANK 1 Registers


    __CONFIG   _MCLRE_OFF & _CP_OFF
                        & _WDT_OFF & _INTRC_OSC_NOCLKOUT  ;Internal osc.

;     _MCLRE_OFF  - master clear must be off for gp3 to work as input pin

;****************************************************************
; variables - names and files
;****************************************************************


temp1       equ 20h ;
temp2       equ 21h ;
temp3       equ 22h ;
temp4       equ 23h ;
jump        equ 24h ;jump value for table1
fadeUp      equ 25h
fadeDwn     equ 26h
sequences   equ 27h
sw_duration equ 28h
testing     equ 29h
loops       equ 2Ah ;


;****************************************************************
;Equates
;****************************************************************
status      equ 0x03
rp1         equ 0x06
rp0         equ 0x05
GPIO        equ 0x05


status      equ 03h
option_reg  equ 81h


            ; bits on GPIO

pin7        equ 0   ;GP0  red LED = A
pin6        equ 1   ;GP1  green LED = B
pin5        equ 2   ;GP2  blue LED  = C
pin4        equ 3   ;GP3  Sw A
pin3        equ 4   ;GP4  Sw B
pin2        equ 5   ;GP5  Sw C


            ;bits

rp0         equ 5   ;bit 5 of the status register



;****************************************************************
;Beginning of program
;****************************************************************
    org 0x00
    nop
    nop
    nop
    nop
    nop
SetUp   bsf     status, rp0     ;Bank 1
        movlw   b'11111000'     ;Set TRIS  GP0,1,2 out   GP3,4,5 input
        movwf   TRISIO
        bcf     option_reg,7    ;pull-ups enabled
        bcf     status, rp0     ;bank 0
        movlw   07h             ;turn off Comparator ports
        movwf   CMCON           ;must be placed in bank 0
        clrf    GPIO            ;
        decf    GPIO,1          ;turn off all LEDs in RGB LED
        call    _memory
        btfss   gpio,5          ;SwA to: "record new sequence"
        goto    record
        btfsc   gpio,3          ;SwC removes attract sequence
        goto    $+.10
        movlw   0FFh
        bsf     status,rp0      ;select bank1
        movwf   EEDATA
        bcf     status,rp0      ;select bank0
        movlw   .101
        bsf     status,rp0      ;select bank1
        movwf   EEADR
        bcf     status,rp0      ;select bank0
        call    write
        movlw   .101
        bsf     status,rp0
        movwf   EEADR
        bsf     EECON1,0        ;starts EEPROM read operation storing result in EEDATA
        movf    EEDATA,w        ;move read data into w
        bcf     status,rp0
        xorlw   .8              ;look for 8 - for Attract mode
        btfsc   03,2
        goto    Attract_Seq     ;selected sequence will appear first
        goto    Main



;****************************************************************
;* Tables           *
;****************************************************************

table1  addwf   PCL,F  ;02h,1  add W to program counter
        retlw   .10     ;
        retlw   .50
        retlw   .30     ;
        retlw   .50
        retlw   .100    ;
        retlw   .40     ;program starts at bottom of table
        retlw   .10     ;
        retlw   .50
        retlw   .30     ;
        retlw   .50
        retlw   .60     ;
        retlw   .10     ;
        retlw   .50
        retlw   .10     ;
        retlw   .50
        retlw   .100    ;
        retlw   .20     ;
        retlw   .50
        retlw   .30     ;
        retlw   .50
        retlw   .70
        retlw   .60     ;
        retlw   .100    ;
        retlw   .50
        retlw   .100    ;
        retlw   .50
        retlw   .100    ;
        retlw   .70     ;
        retlw   .50
        retlw   .30     ;
        retlw   .50
        retlw   .70     ;

table2  addwf   PCL,F           ;02h,1  add W to program counter

        goto    seq1
        goto    seq1A
        goto    seq2
        goto    seq3
        goto    seq4
        goto    seq5
        goto    seq6
        goto    seq7
        goto    seq8
        goto    seq9
        goto    seq10
        goto    seq11
        goto    seq12
        goto    seq13
        goto    seq14
        goto    seq15
        goto    seq16
        goto    seq17
        goto    seq18
        goto    seq19
        goto    seq20
        goto    seq21
        goto    seq22
        goto    seq23
        goto    seq24


;********************
;* Delays           *
;********************

_xuS    movwf   temp2
_uS     movlw   .10
        movwf   temp1
        decfsz  temp1,f
        goto    $-1
        decfsz  temp2,f
        goto    _uS
        retlw   00

_ZuS    movwf   temp2
        goto    $+2
        goto    $+2
        decfsz  temp2,f
        goto    $-3
        retlw   00


_xmS    movwf   temp2
_x      nop
        decfsz  temp1,f
        goto    _x
        decfsz  temp2,f
        goto    _x
        retlw   00

        ;1mS delay for PWM

_1mS    movlw   01h
        movwf   temp2
        nop
        decfsz  temp1,f
        goto    $-2
        decfsz  temp2,f
        goto    $-4
        retlw   00


    ;5mS delay for increments in timing for "New Sequence"

_5mS    movlw   05h
        movwf   temp2
_5      nop
        decfsz  temp1,f
        goto    _5
        decfsz  temp2,f
        goto    _5
        retlw   00


_10mS   movlw   0Ah
        movwf   temp2
_10     nop
        decfsz  temp1,f
        goto    _10
        decfsz  temp2,f
        goto    _10
        retlw   00


_50mS   movlw   .50
        movwf   temp2
_50     nop
        decfsz  temp1,f
        goto    _50
        decfsz  temp2,f
        goto    _50
        retlw   00

_100mS  movlw   .100
        movwf   temp2
_100    nop
        decfsz  temp1,f
        goto    _100
        decfsz  temp2,f
        goto    _100
        retlw   00


_150mS  movlw   .150
        movwf   temp2
_150    nop
        decfsz  temp1,f
        goto    _150
        decfsz  temp2,f
        goto    _150
        retlw   00

_250mS  nop
        decfsz  temp1,f
        goto    $-2
        decfsz  temp2,f
        goto    $-4
        retlw   00


;****************************
;* Sub Routines           *
;****************************

_memory
    movlw   .48
    movwf   temp1
    movlw   2Fh
    movwf   fsr
    incf    fsr,f
    movlw   0FFh
    movwf   indf
    decfsz  temp1,f
    goto    $-4
    retlw   00

       ;SwB puts current sequence into EEPROM for turn on.
       ;and puts "marker" in location 101

Attract
    movf    sequences,w ;put sequence number into w
    bsf     status,rp0  ;select bank1
    movwf   EEDATA
    bcf     status,rp0  ;select bank0
    movlw   .100
    bsf     status,rp0  ;select bank1
    movwf   EEADR
    bcf     status,rp0  ;select bank0
    call    write
    movlw   .8
    bsf     status,rp0  ;select bank1
    movwf   EEDATA
    incf    EEADR,1
    bcf     status,rp0  ;select bank0
    call    write
    nop
    goto    $-1         ;Project must be turned off


    ;Seq selected as Attract will be displayed when project turned on

Attract_Seq
    movlw   .100
    bsf     status,rp0
    movwf   EEADR
    bsf     EECON1,0   ;starts EEPROM read operation storing result in EEDATA
    movf    EEDATA,w    ;move read data into w
    bcf     status,rp0
    movwf   temp4
    movf    temp4,w
    call    table2
    goto    $-2


    ;record new sequence - looks for "no switch pressed" for 1.25 seconds to exit
    ;uses files 30h to 5Fh  (48 files)
    ;three files per "step"   1st file = LEDs,  2nd = Off time, 3rd = on time
    ;15 steps allowed - look for 5Dh

record  btfss   gpio,5  ;wait for release of button A
        goto    $-1
        movlw   30h
        movwf   fsr     ;start storage at file 30h
        clrf    gpio
        decf    gpio,1     ;turn off al LEDs

        ;look at keys being pressed - identifies 2 or 3 keys pressed together

_r1     clrf    sw_duration
_r1a    call    _5mS
        incfsz  sw_duration,1   ;5mS x 256 = 1.25seconds
        goto    $+2
        goto    Store           ;time out! store files 30h to 5Fh in EEPROM
        btfss   gpio,5          ;see if one or more Sw is pressed
        goto    $+5
        btfss   gpio,4
        goto    $+3
        btfsc   gpio,3
        goto    _r1a            ;no sw pressed create 2.5 sec timing
                                ;1,2,or 3 sw pressed

    call    _10mS               ;delay to detect 2 or 3 switches
    incfsz  sw_duration,1
    goto    $+2
    goto    Main
    btfsc   gpio,5              ;SwA
    goto    $+2
    bcf     gpio,0              ;turn on red LED A
    btfsc   gpio,4              ;SwB
    goto    $+2
    bcf     gpio,1              ;turn on green LED B
    btfsc   gpio,3              ;SwC
    goto    $+2                 ;
    bcf     gpio,2              ;turn on blue LED C
                                ;LEDs have been illuminated
    movf    gpio,w
    movwf   indf                ;w moved to fsr's file (30h+)
    incf    fsr,f
    movf    sw_duration,w       ;off time!!
    movwf   indf                ;w moved to fsr's file (30h+)
    incf    fsr,f
    clrf    sw_duration
_r2 call    _5mS
    incfsz  sw_duration,1
    goto    $+2
    goto    record              ;time out! keys pressed too long. Start again
    btfss   gpio,5
    goto    _r2                 ;sw pressed
    btfss   gpio,4
    goto    _r2                 ;sw pressed
    btfss   gpio,3
    goto    _r2                 ;sw pressed
                                ;file empty. Put duration into file
    movf    sw_duration,w       ;on time
    movwf   indf                ;w moved to fsr's file (30h+)
    incf    fsr,f
    movlw   5Dh
    xorwf   fsr,w
    btfss   03,2
    goto    $+2
    goto    Store               ;stop at 15 steps. store files 30h to 5Fh in EEPROM
    clrf    gpio
    decf    gpio,1              ;turn off al LEDs
    goto    _r1

    ;sequences:

    ;seq1 Self-Programmed sequence
    ;1St file:LEDs  2nd file:OFF time  3rd file:On time

seq1    bsf     status,rp0
        clrf    EEADR
        bcf     status,rp0
        bsf     status,rp0
        bsf     EECON1,0        ;starts EEPROM read operation storing result in EEDATA
        movf    EEDATA,w        ;move read data into w
        bcf     status,rp0
        movwf   gpio
        bsf     status,rp0
        incf    EEADR,1
        bsf     EECON1,0        ;
        movf    EEDATA,w        ;move read data into w
        bcf     status,rp0
        movwf   temp4           ;this is OFF time. Store it
        bsf     status,rp0
        incf    EEADR,1
        bsf     EECON1,0        ;
        movf    EEDATA,w        ;move read data into w
        bcf     status,rp0
        movwf   sw_duration     ;this is ON time
        call    _5mS
        decfsz  sw_duration,1
        goto    $-2
        clrf    gpio
        decf    gpio,1          ;turn off all LEDs
        call    _5mS
        decfsz  temp4,f         ;create OFF duration
        goto    $-2
        bsf     status,rp0
        incf    EEADR,1
        bsf     EECON1,0        ;
        movf    EEDATA,w        ;move read data into w
        bcf     status,rp0
        xorlw   0FFh            ;look for 0FFh - end of routine
        btfss   03,2
        goto    $-32
        retlw   00


    ;seq1A cycles through most of the colours for an RGB LED
    ;sub-routine starts with blue 50%   green 0% and fades red up/down
    ;the on-off time for each loop of red is the same, so it is separated into
    ;two parts and blue is turned on for first loop and off for
    ;second loop to create 50%.  Must make sure fadeDwn goes to zero to exit



seq1A   clrf    fadeUp      ;
        clrf    fadeDwn
        incf    fadeUp,f    ;to create 1 (delay routine does not like 00)
        bcf     gpio,0      ;turn on red LED
        bcf     gpio,2      ;turn on blue LED
        movf    fadeUp,w
        call    _xuS
        bsf     gpio,0      ;turn off red LED
        movf    fadeDwn,w
        call    _xuS
        decf    fadeDwn,f   ;
        incf    fadeUp,f    ;
        bcf     gpio,0      ;turn on red LED
        bsf     gpio,2      ;turn off blue LED
        movf    fadeUp,w
        call    _xuS
        bsf     gpio,0      ;turn off red LED
        movf    fadeDwn,w
        call    _xuS
        decfsz  fadeDwn,f   ;
        goto    $-18

        incf    fadeDwn,f   ;removes glitch between fade up and fade down
        incf    fadeDwn,f

        bcf     gpio,0      ;turn on red LED  .
        bcf     gpio,2      ;turn on blue LED
        movf    fadeUp,w
        call    _xuS
        bsf     gpio,0      ;turn off red LED
        movf    fadeDwn,w
        call    _xuS
        incf    fadeDwn,f   ;
        decf    fadeUp,f    ;
        bcf     gpio,0      ;turn on red LED
        bsf     gpio,2      ;turn off blue LED
        movf    fadeUp,w
        call    _xuS
        bsf     gpio,0      ;turn off red LED
        movf    fadeDwn,w
        call    _xuS
        decf    fadeUp,f
        incfsz  fadeDwn,f   ;
        goto    $-18

        clrf    fadeUp      ;
        clrf    fadeDwn
        incf    fadeUp,f    ;to create 1 (delay routine does not like 00)
        bcf     gpio,0      ;turn on red LED
        bcf     gpio,1      ;turn on green LED
        movf    fadeUp,w
        call    _xuS
        bsf     gpio,0      ;turn off red LED
        bsf     gpio,1      ;turn off green LED
        movf    fadeDwn,w
        call    _xuS
        decf    fadeDwn,f   ;
        incf    fadeUp,f    ;
        bcf     gpio,0      ;turn on red LED
        bsf     gpio,1      ;turn off green LED
        movf    fadeUp,w
        call    _xuS
        bsf     gpio,0      ;turn off red LED
        movf    fadeDwn,w
        call    _xuS
        decfsz  fadeDwn,f   ;
        goto    $-19
        incf    fadeDwn,f   ;removes glitch between fade up and fade down
        incf    fadeDwn,f
        bcf     gpio,0      ;turn on red LED  .
        bcf     gpio,1      ;turn on green LED
        movf    fadeUp,w
        call    _xuS
        bsf     gpio,0      ;turn off red LED
        bsf     gpio,1      ;turn off green LED
        movf    fadeDwn,w
        call    _xuS
        incf    fadeDwn,f   ;
        decf    fadeUp,f    ;
        bcf     gpio,0      ;turn on red LED
        bsf     gpio,1      ;turn off green LED
        movf    fadeUp,w
        call    _xuS
        bsf     gpio,0      ;turn off red LED
        movf    fadeDwn,w
        call    _xuS
        decf    fadeUp,f
        incfsz  fadeDwn,f   ;
        goto    $-19
        retlw   00


seq2
        movlw   .50         ;produce red @50% PWM
        movwf   loops
        bcf     gpio,0
        call    _5mS
        bsf     gpio,0
        call    _5mS
        decfsz  loops,1
        goto    $-5
        bsf     gpio,0
        retlw   00


seq3
        movlw   .50         ;produce green @50% PWM
        movwf   loops
        bcf     gpio,1
        call    _5mS
        bsf     gpio,1
        call    _5mS
        decfsz  loops,1
        goto    $-5
        bsf     gpio,1
        retlw   00

seq4
        movlw   .50         ;produce blue @50% PWM
        movwf   loops
        bcf     gpio,2
        call    _5mS
        bsf     gpio,2
        call    _5mS
        decfsz  loops,1
        goto    $-5
        bsf     gpio,2
        retlw   00



seq5
        movlw   .50         ;produce white @50% PWM
        movwf   loops
        clrf    gpio        ;makes gpio all LOW
        call    _5mS
        decf    gpio,1      ;makes gpio all HIGH
        call    _5mS
        decfsz  loops,1
        goto    $-5
        bsf     gpio,2
        retlw   00

seq6
        movlw   .85         ;produce red @20% PWM
        movwf   loops
        bcf     gpio,0
        call    _1mS
        bsf     gpio,0
        call    _5mS
        decfsz  loops,1
        goto    $-5
        bsf     gpio,0
        retlw   00

seq7
        movlw   .85         ;produce green @20% PWM
        movwf   loops
        bcf     gpio,1
        call    _1mS
        bsf     gpio,1
        call    _5mS
        decfsz  loops,1
        goto    $-5
        bsf     gpio,1
        retlw   00

seq8
        movlw   .85         ;produce blue @20% PWM
        movwf   loops
        bcf     gpio,2
        call    _5mS
        bsf     gpio,2
        call    _5mS
        decfsz  loops,1
        goto    $-5
        bsf     gpio,2
        retlw   00


seq9
        movlw   .85         ;produce white @20% PWM
        movwf   loops
        clrf    gpio        ;makes gpio all LOW
        call    _1mS
        decf    gpio,1      ;makes gpio all HIGH
        call    _5mS
        decfsz  loops,1
        goto    $-5
        bsf     gpio,2
        retlw   00




        ;seq10  slow colour change for RGB LED @100% PWM


seq10   bcf gpio,0  ;
        call    _250mS
        call    _250mS
        bsf gpio,0
        bcf gpio,1
        call    _250mS
        call    _250mS
        bsf gpio,1
        bcf gpio,2
        call    _250mS
        call    _250mS
        bsf gpio,2
        retlw   00


        ;seq11  slow colour change for RGB LED @50% PWM


seq11
        movlw   .50         ;produce red @50% PWM
        movwf   loops
        bcf     gpio,0
        call    _5mS
        bsf     gpio,0
        call    _5mS
        decfsz  loops,1
        goto    $-5
        bsf     gpio,0
        movlw   .50         ;produce green @50% PWM
        movwf   loops
        bcf     gpio,1
        call    _5mS
        bsf     gpio,1
        call    _5mS
        decfsz  loops,1
        goto    $-5
        bsf     gpio,1
        movlw   .50         ;produce blue @50% PWM
        movwf   loops
        bcf     gpio,2
        call    _5mS
        bsf     gpio,2
        call    _5mS
        decfsz  loops,1
        goto    $-5
        bsf     gpio,2
        movlw   .50         ;produce white @50% PWM
        movwf   loops
        clrf    gpio        ;makes gpio all LOW - ledS on
        call    _5mS
        decf    gpio,1      ;makes gpio all HIGH - ledS off
        call    _5mS
        decfsz  loops,1
        goto    $-5
        retlw   00


         ;seq12  slow colour change for RGB LED @20% PWM


seq12   movlw   .85         ;produce red @20% PWM
        movwf   loops
        bcf     gpio,0
        call    _1mS
        bsf     gpio,0
        call    _5mS
        decfsz  loops,1
        goto    $-5
        bsf     gpio,0
        movlw   .85         ;produce green @20% PWM
        movwf   loops
        bcf     gpio,1
        call    _1mS
        bsf     gpio,1
        call    _5mS
        decfsz  loops,1
        goto    $-5
        bsf     gpio,1
        movlw   .85         ;produce blue @20% PWM
        movwf   loops
        bcf     gpio,2
        call    _5mS
        bsf     gpio,2
        call    _5mS
        decfsz  loops,1
        goto    $-5
        bsf     gpio,2
        movlw   .85         ;produce white @20% PWM
        movwf   loops
        clrf    gpio        ;makes gpio all LOW - ledS on
        call    _1mS
        decf    gpio,1      ;makes gpio all HIGH - ledS off
        call    _5mS
        decfsz  loops,1
        goto    $-5
        retlw   00


        ;seq13  RED BLUE  RED BLUE

seq13   bCf gpio,0
        call    _150mS
        bSf     gpio,0
        bCf     gpio,2
        call    _150mS
        bSf     gpio,2
        retlw   00


        ;seq14  red on   red off

seq14   bcf     gpio,0
        call    _150mS
        bsf     gpio,0
        call    _150mS
        clrf    gpio
        decf    gpio,1
        retlw   00


        ;seq15  green on   green off

seq15   bCf     gpio,1
        call    _150mS
        bSf     gpio,1
        call    _150mS
        clrf    gpio
        decf    gpio,1
        retlw   00



        ;seq16  blue on  blue off

seq16   bCf     gpio,2
        call    _150mS
        bSf     gpio,2
        call    _150mS
        clrf    gpio
        decf    gpio,1
        retlw   00


        ;seq17  white on  white off

seq17   movlw   .15     ;produce white @50% PWM
        movwf   loops
        clrf    gpio    ;makes gpio all LOW - ledS on
        call    _5mS
        decf    gpio,1    ;makes gpio all HIGH - ledS off
        call    _5mS
        decfsz  loops,1
        goto    $-5
        call    _150mS
        retlw   00


        ;seq18  police flasher  3 times red 3 times blue

seq18   bcf     gpio,0
        call    _50mS
        bsf     gpio,0
        call    _50mS
        bcf     gpio,0
        call    _50mS
        bsf     gpio,0
        call    _50mS
        bcf     gpio,0
        call    _50mS
        bsf     gpio,0
        call    _50mS
        bcf     gpio,2
        call    _50mS
        bsf     gpio,2
        call    _50mS
        bcf     gpio,2
        call    _50mS
        bsf     gpio,2
        call    _50mS
        bcf     gpio,2
        call    _50mS
        bsf     gpio,2
        call    _50mS
        retlw   00

        ;seq19  random flicker - white light

seq19   movlw   .32         ;start at bottom of table
        movwf   jump
        clrf    gpio        ; . back to here - turn on all LEDs
        movf    jump,w      ;put table jupmp value into w
        call    table1
        call    _xmS
        clrf    gpio
        decf    gpio,1      ;turn off all LEDs
        decfsz  jump,f
        goto    $+2
        retlw   00          ;top of table found
        movf    jump,w      ;put table jupmp value into w
        call    table1
        call    _xmS
        goto    $-12        ; .





        ;seq20  slow fade up down red

seq20   clrf    fadeUp      ;
        clrf    fadeDwn
        incf    fadeUp,f    ;to create 1 (delay routine does not like 00)
        bcf     gpio,0      ;turn on red LED   .
        movf    fadeUp,w
        call    _xuS
        bsf     gpio,0      ;turn off red LED
        movf    fadeDwn,w
        call    _xuS
        decfsz  fadeDwn,f
        goto    $-8
        incf    fadeDwn,f   ;to produce 1
        bcf     gpio,0      ;turn on red LED  .
        movf    fadeUp,w
        call    _xuS
        bsf     gpio,0      ;turn off red LED
        movf    fadeDwn,w
        call    _xuS
        decf    fadeUp,f
        incfsz  fadeDwn,f
        goto    $-8
        retlw   00


        ;seq21  slow fade up down green

seq21   clrf    fadeUp      ;
        clrf    fadeDwn
        incf    fadeUp,f    ;to create 1 (delay routine does not like 00)
        bcf     gpio,1      ;turn on green LED   .
        movf    fadeUp,w
        call    _xuS
        bsf     gpio,1      ;turn off green LED
        movf    fadeDwn,w
        call    _xuS
        decfsz  fadeDwn,f   ;
        goto    $-8
        incf    fadeDwn,f   ;to produce 1
        bcf     gpio,1      ;turn on green LED  .
        movf    fadeUp,w
        call    _xuS
        bsf     gpio,1      ;turn off green LED
        movf    fadeDwn,w
        call    _xuS
        decf    fadeUp,f
        incfsz  fadeDwn,f
        goto    $-8
        retlw   00


        ;seq22  slow fade up down blue

seq22   clrf    fadeUp      ;
        clrf    fadeDwn
        incf    fadeUp,f    ;to create 1 (delay routine does not like 00)
        bcf     gpio,2      ;turn on blue LED   .
        movf    fadeUp,w
        call    _xuS
        bsf     gpio,2      ;turn off blue LED
        movf    fadeDwn,w
        call    _xuS
        decfsz  fadeDwn,f   ;
        goto    $-8
        incf    fadeDwn,f   ;to produce 1
        bcf     gpio,2      ;turn on blue LED  .
        movf    fadeUp,w
        call    _xuS
        bsf     gpio,2      ;turn off blue LED
        movf    fadeDwn,w
        call    _xuS
        decf    fadeUp,f
        incfsz  fadeDwn,f
        goto    $-8
        retlw   00

        ;seq23  slow fade up down white Light

seq23   clrf    fadeUp      ;
        clrf    fadeDwn
        incf    fadeUp,f    ;to create 1 (delay routine does not like 00)
        clrf    gpio        ;turn on LEDs   .
        movf    fadeUp,w
        call    _xuS
        clrf    gpio
        decf    gpio,1      ;turn off LED
        movf    fadeDwn,w
        call    _xuS
        decfsz  fadeDwn,f   ;
        goto    $-9
        incf    fadeDwn,f   ;to produce 1
        clrf    gpio        ;turn on LEDs  .
        movf    fadeUp,w
        call    _xuS
        clrf    gpio
        decf    gpio,1      ;turn off LEDs
        movf    fadeDwn,w
        call    _xuS
        decf    fadeUp,f
        incfsz  fadeDwn,f
        goto    $-9
        clrf    gpio
        retlw   00

        ;seq24  fast fade up down white light


seq24   clrf    fadeUp      ;
        clrf    fadeDwn
        incf    fadeUp,f    ;to create 1 (delay routine does not like 00)
        clrf    gpio        ;turn on LEDs   .
        movf    fadeUp,w
        call    _ZuS
        clrf    gpio
        decf    gpio,1      ;turn off LED
        movf    fadeDwn,w
        call    _ZuS
        decfsz  fadeDwn,f   ;
        goto    $-9
        incf    fadeDwn,f   ;to produce 1
        clrf    gpio        ;turn on LEDs  .
        movf    fadeUp,w
        call    _ZuS
        clrf    gpio
        decf    gpio,1      ;turn off LEDs
        movf    fadeDwn,w
        call    _ZuS
        decf    fadeUp,f
        incfsz  fadeDwn,f
        goto    $-9
        clrf    gpio
        retlw   00


        ;Store   Store the 15 steps in EEPROM

Store   bsf     status,rp0  ;select bank1
        clrf    eeadr
        bcf     status,rp0  ;select bank0
        movlw   .48
        movwf   temp1
        movlw   2Fh
        movwf   fsr
        incf    fsr,f       ;fsr starts at file 30h
        movf    indf,w      ;retreive data in file 30h
        bsf     status,rp0  ;select bank1
        movwf   eedata      ;
        bcf     status,rp0  ;select bank0
        call    write
        bsf     status,rp0  ;select bank1
        incf    eeadr,1
        bcf     status,rp0  ;select bank0
        decfsz  temp1,f
        goto    $-10
        goto    Main


write   bsf status,rp0      ;select bank1
        bsf eecon1,wren     ;enable write
        movlw   55h         ;unlock codes
        movwf   eecon2
        movlw   0aah
        movwf   eecon2
        bsf eecon1,wr       ;write begins
        bcf status,rp0      ;select bank0
writeA  btfss   pir1,eeif   ;wait for write to complete
        goto    writeA
        bcf     pir1,eeif
        bsf     status,rp0  ;select bank1
        bcf     eecon1,wren ;disable other writes
        bcf     status,rp0  ;select bank0
        retlw   00


;************************
;* Main                 *
;************************

Main    clrf    sequences
        movf    sequences,w
        call    table2
        btfss   gpio,5      ;Is swA still pressed?
        goto    $-3         ;SwA still pressed
        movf    sequences,w ;SwA released
        call    table2
        btfss   gpio,4      ;SwB puts current sequence at turn-on
        goto    Attract
        btfsc   gpio,5
        goto    $-5         ;SwA not pressed
        incf    sequences,f
        movlw   .25
        xorwf   sequences,w
        btfss   03,2
        goto    $-12
        goto    Main


;************************
;*EEPROM                *
;************************

    org     2100h

    END

GOING FURTHER

We have not produced all the possible sequences and you can add more by simply creating a new sub-routine.
You need to add it to the table and make sure you end with retlw 00 to send the micro back to Main.
We have provided all the hardware and software for you to do this. Now it’s now up to you.

RGB LED FX Parts List

Cost: au$15.00 plus postage
[Kits are available](mailto:colin@elechelp.com?Subject=Buying RGB LED FX kit&Body=Please e-mail the cost RGB LED FX kit by air mail to my country:****___**** and send details of how I can pay for it. My name is:____)

  • 2 - 220R (221) SM resistors

  • 1 - 270R (271) SM resistor

  • 3 - 47k (473) SM resistors - not needed

  • 1 - 100n SM capacitor

  • 1 - 100u electrolytic

  • 1 - SPDT mini slide switch

  • 1 - 1N4148 diode

  • 1 - LM78L05 voltage regulator

  • 1 - PIC12F629 chip (with RGB LED FX)

  • 1 - 8 pin IC socket

  • 1 - RGB LED - common anode

  • 3 - mini tactile switches

  • 1 - 9v battery snap

  • 1 - 2cm fine tinned copper wire for link

  • 1 - 20cm very fine solder

  • 1 - RGB LED FX PC board


Colin Mitchell

Colin Mitchell

Expertise

electronics
writing
PIC-Chips

Social Media

instagramtwitterwebsite

Related Posts

TODO
Transistor Test
© 2021, All Rights Reserved.

Quick Links

Advertise with usAbout UsContact Us

Social Media
