PROGRAMMING A PIC12C508A CHIP

One of the biggest hurdles to overcome is the “image” of the PIC12C508A chip. We tend to think of it as a single chip, just like any other 8-pin chip. But it’s not. It’s really equivalent to 5, 6, 8 or even more chips in a single package! And each chip can be programmed to do almost exactly what you want!
If you have this concept, you will realize the project we are describing is using only a fraction of the capabilities of the chip. Some of the games we have designed for the PIC16F84 could be squeezed into the 508A and they show the enormous power of a microcontroller.
So, don’t under-estimate what you are working with. It’s the start of something big and once you get a firm foundation, it’s like building a house on stone.
Our approach to programming this amazing little microcontroller has never been presented in any other article before.
We hold the “first rights” to the presentation of this approach and the best part is: “It’s FREE!”
The PIC12C508A is one of the most amazing devices but because it does not come in a low-cost re-programmable form, it has never been presented in a “designers article.” It is a one-time programmable device (OTP) and once it is programmed, it cannot be re-programmed.
To develop with this chip is not an economical decision as it may take 30 to 100 modifications before you are completely happy with the operation of the software. That’s 99 wasted chips!
The only way to carry out experimentation is with the EPROM version (window version). These carry the part number PIC12C508A-JW and are about 10 times the cost of a normal PIC12C508A.
To remove the program, they must be erased under an ultra-violet lamp for about 20 minutes. When you are in the process of developing, this time-delay is very annoying and it usually takes about 10 units to keep the development process active.
Adding up the costs, makes this process slow, cumbersome and costly.
We have got around this problem by using a PIC16F84 to hold the development program and when you are completely satisfied with the operation, the EXACT SAME program is burnt into a PIC12C508A.
All you have to do is select “12C508A” in the chip list on MPASM and the program will be assembled with a .hex file to suit a 508A. Click on ICProg, select 508A as the chip to be programmed, insert a 508A into the Multi Chip Programmer and the program will be burnt into the 8 pin chip. The .hex files for the two chips are entirely different as the “core” of each is different, but that does not involve us. The programming instructions are the “same” and the circuit-operation is the same.
The secret to this approach is to use only the instructions and files that are common to both chips.
Fortunately nearly all the instructions for the 16F84 can be used by the 508A and nearly all the files are common. The table above shows the similarities etc.
They are about 95% compatible and all the in/out lines of the 508A are identical to port B lines on the F84. In/out lines GP0 to GP5 on the PIC12C508A are common to in/out lines RB0 to RB5 for the PIC16F84. The only thing to remember is line GP3 (RB3). It is an input-only line and this is where you normally place a push-button or some other input device.

RE-BURNING A ‘508A

The PIC12C508A chip is theoretically a One Time Programmable device, but it can be re-burnt, providing a number of points are remembered.
Any location can be re-burnt “down.” This means any bit in any location can be changed from a “1” to “0.”
This gives a wide range of possibilities for any byte but it will be very rare that a byte will need to be changed like this.
The other method is to place the new routine after the old program and “NOP” out the old program.
This is easily done by counting the bytes in the old program and placing the same number of NOP’s above the new program you are burning. Add say an extra 3 - 10 NOPs just to be sure that no old instructions remain.
The micro will quickly run though the NOPs before coming to the new program, each time the project is turned on and everything will run as before.
There are only two things you have to be aware of.
The interrupt vector (location 004) will not be available.
The program must not have any CALL instructions (if you have any locations higher than 0FFh - that need to be “jumped to” via a CALL instruction). The PIC12C508A has 1FFh locations (512) - minus the last location as it is the oscillator calibration byte and is not available for a program instruction.
CALL instructions only work to the first 0FFh (256) locations (half the memory of a 508A).
One of the solutions is to place sub-routines in Main and use only GOTO instructions.
This may increase the length of the program but it is one way to get around the problem.
If the program does not work perfectly on the second burn, it can be NOP’ed and the new program added below, until the whole memory has been used.
Depending on the length of the program, this can give you 3 or more “burns” from a single 508A.
Here is a quick run-down on the procedure:
Create your program in NotePad or WordPad.
Make sure the number of NOPs (above the program) will push the program into a new section of memory.
Assemble the program with MPASM and save it with a new name such as:
Try508-X or Try508-Y.
Use IC-Prog and our Multi Chip Programmer to “burn” the chip.
Select PIC 12c508A as the processor.
Open the folder on the left-hand side (when in IC_Prog) and locate the .hex file you want to burn.
Select IntRC as the oscillator
Untick WDT, CP and MCLR. The Config word should be: 0FEAh
Fit the chip into the Multi Chip Programmer on the left-end of the 18 pin socket.
Click on the IC icon with the “lightening” in IC-Prog and a box will appear: “Do you really want to program the device?” Click yes, and the chip will be programmed.

THE ADAPTER SOCKET - type B

This adapter is available as a kit containing the two IC sockets, a small PC board, two components for the RC oscillator and an 8-pin header to connect the 8-pin IC socket to the adapter. The adapter can also be “fabricated” by using tinned copper wire and two IC sockets.
It will allow a PIC16F84 to be plugged into a project designed for a PIC12C508A, so you can create a program.
The adapter is a bit top-heavy but it does the job perfectly.
The 508A has a built-in 4MHz oscillator and so the two oscillator components for the PIC16F84 must be added as shown in the diagram.
By fitting a PIC16F84 to the socket, you have a PIC12C508A!

It takes a little bit of skill to solder to the 8-pin socket without damaging the plastic surrounding the pins but with a fine-tipped soldering iron it can be done.
Keep the sockets 1cm (3/8”) apart to make it easy to get the soldering iron tip onto the lower pins.
The 4k7 and 22p are mounted in the space under the 18-pin socket.
The adapter socket is available as a kit and is made on a small printed circuit board as shown in the photos below:

Underside of adapter

The 8 pin socket is pushed onto the header pins

Completed adapter

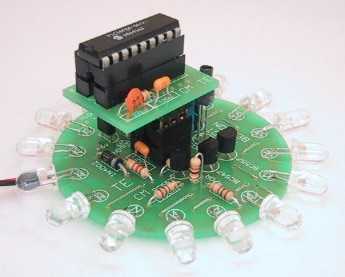

Adapter with chip fitted

WRITING A PROGRAM

The program we have written for this project uses the 35 instructions supplied by the manufacturer of the chip.
This is called the “lowest” form of programming as there are other ways to program the chip using instructions that sometimes perform a more-complex operation with a single command. This type of programming is called “high level” or “higher level” as it is “distant” from the actual instructions carried out by the chip.
These “higher level” languages are supposed to be easier to understand and easier to work with.
This is (can be) true, but the object of this project is to show how to program a chip in the cheapest, simplest way.
Some of the things we do in our other projects appear to be very simple but some sub-routines are checking and setting flags etc and the order of these operations is very important. And it is very important that you have control over where these instruction are placed in a program. High-level languages may or may not produce instructions in the order you intended.
Everything is wonderful until a fault develops and that’s when you appreciate the ability to see the whole program laid out in the same way it will be executed by the micro.
The author only takes on a project or design if he knows he can complete the task without any external input. And that’s what you should do too.
That’s why the “hand-assembly” approach has been presented.
You can see exactly what is happening.
Once you learn the 35 instructions you can perform absolutely every task the micro is capable of carrying out. Not only this, but the program will occupy the smallest amount of memory and you can visually fault-find the program.
This approach has been successful up to a 1,000-instruction program (about 15 A4 pages!). Believe me, a 1,000 line program is quite complex as many of the previously-written sub-routines can be CALLed and the program gets more powerful as it builds up.
We will let you know when this approach gets too difficult to handle.
Until that time comes, our approach has been shown to be the only way to learn programming, and is an ideal way of creating a project or product for commercial sale.

The adapter fitted to Robot Beacon while creating the program.

THE PROGRAM

The program has a simple “linear” layout with the micro advancing down the program. There are no sub-routines. The only loops are the delay routines and the loop at the end. This loop checks the illumination on the photo darlington transistor. Light falling on the device will cause it to conduct and the voltage on the input line of the micro will be low. The micro looks for a HIGH on this input line to cycle Main. Otherwise it remains in a loop at the end of Main.
The diagram below shows how the program flows:

The following program is “burnt” into a PIC16F84 and the chip is fitted to the project via the adaptor socket described above. The instructions in SetUp (such as TRIS 06 and OPTION 0DFh) are for the PIC12C508A but do not upset the operation of the PIC16F84. Don’t worry about the comments generated by MPASM when using TRIS. The instruction “GOTO Main” is not needed but it shows what is happening in the program. It also allows routines to be placed between SetUp and Main.

   ;Beacon-1.asm
                    ;Project: "Rotating Beacon"
List P = 16F84
#include <p16F84.inc>
__CONFIG 1Bh    ;_CP_OFF & _PWRTE_ON & _WDT_OFF & _RC_OSC

        ORG 0               ;Start of memory for program
SetUp   MOVLW 08            ;Load W with 0000 1000
        TRIS 06             ;Make RB3, (GP3) input
        OPTION 0DFh         ;Make GP2 an output & disable weak pullups
        MOVLW 17h           ;Make GP0, GP1, GP2, GP4, GP5 HIGH
        MOVWF 06
        GOTO Main






Main  BSF 06,5
NOP
NOP
BCF 06,0
MOVLW 42h
MOVWF 1B





Del1









Del2









Del3









Del4










Del5









Del6









Del7









Del8






Loop


ORG 0
MOVLW 08
TRIS 06
OPTION 0DFh
MOVLW 17h
MOVWF 06
GOTO Main

BSF 06,5
NOP
NOP
BCF 06,0
MOVLW 42h
MOVWF 1B
DECFSZ 1A,1
GOTO Del1
MOVLW 01h
XORWF 06,1
DECFSZ 1B,1
GOTO Del1
BSF 06,0
BCF 06,1
MOVLW 42h
MOVWF 1B
DECFSZ 1A,1
GOTO Del2
MOVLW 02h
XORWF 06,1
DECFSZ 1B,1
GOTO Del2
BSF 06,1
BCF 06,2
MOVLW 42h
MOVWF 1B
DECFSZ 1A,1
GOTO Del3
MOVLW 04h
XORWF 06,1
DECFSZ 1B,1
GOTO Del3
BSF 06,2
BCF 06,4
MOVLW 42h
MOVWF 1B
DECFSZ 1A,1
GOTO Del4
MOVLW 10h
XORWF 06,1
DECFSZ 1B,1
GOTO Del4
BSF 06,4
BCF 06,5
BCF 06,0
MOVLW 42h
MOVWF 1B
DECFSZ 1A,1
GOTO Del5
MOVLW 01h
XORWF 06,1
DECFSZ 1B,1
GOTO Del5
BSF 06,0
BCF 06,1
MOVLW 42h
MOVWF 1B
DECFSZ 1A,1
GOTO Del6
MOVLW 02h
XORWF 06,1
DECFSZ 1B,1
GOTO Del6
BSF 06,1
BCF 06,2
MOVLW 42h
MOVWF 1B
DECFSZ 1A,1
GOTO Del7
MOVLW 04h
XORWF 06,1
DECFSZ 1B,1
GOTO Del7
BSF 06,2
BCF 06,4
MOVLW 42h
MOVWF 1B
DECFSZ 1A,1
GOTO Del8
MOVLW 10h
XORWF 06,1
DECFSZ 1B,1
GOTO Del8
BSF 06,4
BTFSC 06,3
GOTO Main
NOP
GOTO Loop

END

;Start of memory for program
;Load W with 0000 1000
;Make RB3, (GP3) input
;Make GP2 an output & disable weak pullups
;Make GP0, GP1, GP2, GP4, GP5 HIGH



;Turn on LHS sinking transistor



;Create 50mS delay









;Create 50mS delay









;Create 50mS delay









;Create 50mS delay








;Turn on RHS sinking transistor

;Create 50mS delay









;Create 50mS delay









;Create 50mS delay









;Create 50mS delay













;Tells assembler end of program


;Start of memory for program
;Load W with 0000 1000
;Make RB3, (GP3) input
;Make GP2 an output & disable weak pullups
;Make GP0, GP1, GP2, GP4, GP5 HIGH



;Turn on LHS sinking transistor



;Create 50mS delay









;Create 50mS delay









;Create 50mS delay









;Create 50mS delay








;Turn on RHS sinking transistor

;Create 50mS delay









;Create 50mS delay









;Create 50mS delay









;Create 50mS delay













;Tells assembler end of program


Once the project is working perfectly, a PIC12C508A chip can be burnt. Make sure the settings are changed on MPASM and IC-Prog to suit the 508A chip. The .hex file **Bcon508A.hex** can be found in **Beacon Files**.


 ;Bcon508A.asm
      ;Project: "Rotating Beacon" - for 508A
List P = 12C508A, F = INHX8M
#include <p12C508A.inc>
__CONFIG 09h _MCLRE_OFF & _CP_OFF & _WDT_OFF & _IntRC_OSC


SetUp






Main





ORG 0
MOVLW 08
TRIS 06
OPTION 0DFh
MOVLW 17h
MOVWF 06
GOTO Main

BSF 06,5
NOP
NOP
etc
etc
etc

;Start of memory for program
;Load W with 0000 1000
;Make RB3, (GP3) input
;Make GP2 an output & disable weak pullups ;Make GP0, GP1, GP2, GP4, GP5 HIGH

If the operation of the program in a PIC12C508A is not exactly what you want, a second “burn” can be carried out by referring to Try2-508.asm The program has been located 110 bytes down memory. It has 110 NOPs above the program and ORG 0 is removed.

 ;Try2-508.asm
      ;Project: "Rotating Beacon" - for 508A
List P = 12C508A, F = INHX8M
#include <p12C508A.inc>
 __CONFIG 09h _MCLRE_OFF & _CP_OFF & _WDT_OFF & _IntRC_OSC












SetUp






Main





NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP etc etc etc


MOVLW 08
TRIS 06
OPTION 0DFh
MOVLW 17h
MOVWF 06
GOTO Main

BSF 06,5
NOP
NOP
etc
etc
etc












;Load W with 0000 1000
;Make RB3, (GP3) input
;Make GP2 an output & disable weak pullups ;Make GP0, GP1, GP2, GP4, GP5 HIGH

Before using this program, two things have to be remembered.
Read the chip you want to re-burn by placing it in the Multi Chip programmer and click the “IC icon with the arrow emerging from it.” Make sure memory at 6Eh onwards is unburnt (contains 3FFh). If not, add NOPs to your program to push it further down memory.
Make sure the program you are re-burning does not extend past the end of memory (511 bytes). This is highly unlikely, but must be taken into account when using Try4-508.asm as the program has been pushed 400 bytes down memory and only a 110 byte program can be burnt.
You will notice Try3-508.asm has not been supplied. It burns a program at approx 300 bytes from the top of memory. These are concepts you can work with yourself and will depend on the number of bytes in a program.

The files in Beacon Files are:

• Beacon-1.asm Beacon program at the top of memory for a PIC16F84 chip - also .hex
• Bcon508A.asm Beacon program at the top of memory for a PIC12C508A chip - also .hex
• Try2-508.asm Beacon program at 110 bytes down memory for a PIC12C508A chip
• Try4-508.asm Beacon program at 400 bytes down memory for a PIC12C508A chip

GOING FURTHER

The program we have written can be changed or modified in any way and the concept of re-burning can be applied to any other program you are developing.
It can be modified to take an audio input as well as light-detection, on a single input.

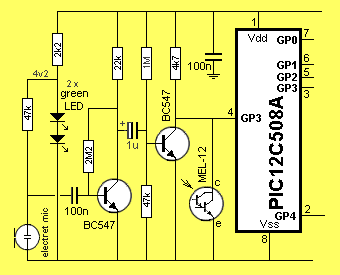

The circuit below shows how to connect the two detectors to the input line:

Audio and light on same input-line

The first transistor is a standard audio amplifier but the second stage converts analogue signals into a digital signal. The operation of these stages has been discussed in the PIC LAB-1 project.
The display can be activated or reversed when it detects audio and shut-down when light is detected.
You will need to write your own program for this. You will need to differentiate between a constant LOW and LOW-PULSES. If the input is LOW for a long period of time, the photo transistor will be detecting light from the surroundings. If the input is receiving pulses, the program will go to a different routine.
The detection-routine can be contained inside a delay routine.
Use this project to advance your programming skills and you will come up with something you can say: “I designed this!”
