The amount of material being added to the internet is phenomenal.
It is claimed 300 hours of videos is uploaded to YouTube every minute.
But the biggest change has been the decline in magazine sales.
This doesn’t seem apparent as most magazines still strive to present a successful approach by keeping up appearances and maintaining a reasonable thickness to their monthly edition.
But the underlying facts are different. Sales are declining with each issue and it comes to a point where the readership is so low that advertisers are simply “supporting a sinking ship.”
Nearly every magazine is now available on the web as a free download and after thumbing through the pages, it can be deleted and “returned to the clouds.”
I have reduced my huge pile of magazines by saving the articles and discarding the rest.
A 3 metre pile is now less than 10cm.
You have to get savvy with everything you do and realise a magazine is a vehicle for advertisements that you don’t need, with a few pages of articles that can be retained, providing you can access them at a later time.
This was done by Kendall Webster Sessions in his books of 1,000 circuits, but many of these circuits used old-style components and you have to update transistors and IC’s with presently available components to get the circuits to work.
It would be a very valuable exercise to collect all the projects from defunct magazines and present them in indexed form so readers can see what has been presented.
The closest I have done is gather together hundreds of websites where thousands of circuits have been presented: Page 1 Page 2 Other authors
The microcontroller has made many of these circuits “redundant” by decreasing the complexity of 5 or 6 chips to a single 8 pin micro.
And the release of new chips has made the old-style chips slow, current-hungry and difficult to obtain.

I thought I was the only one noticing the number of mistakes in text books.
But there are a number of groups on the web with a list of mistakes in many of these “bibles.”
Everything would be fine if the author and/or publisher had the gumption to admit to the mistakes and provide a set of errata.
But, not only does the author fail to respond, but the publishing house also fails to reply.
Some of these texts have numerous mistakes on each page and I would be furious if I trusted a piece of information that was incorrect.
I know it’s nice to have a physical book in your hands, but most of these text books provide very little information on each particular topic and you are best to Google what you want and get 100 resources.

These pages allow me to describe all sorts of things that don’t fit into normal articles on circuit designing.
They allow such topics as “if it doesn’t work” and “why it doesn’t work.”
These are things that are NEVER mentioned in any text book and are actually the MOST IMPORTANT part of learning.
This concept came about after fixing more than 24,000 TV sets and associated electronic gear and finding circuits that failed after a long period of time.
Things that you would never expect to go faulty, such as a 27p ceramic in the tuner of a TV or a vertical transformer causing the vertical control to run out or range and cause the picture to roll.
Or the 27k resistor missing in an HMV power supply that allowed the supply to start up when the main transistor lost some of its gain.
These sorts of things were never taught in University or trade-school and made servicing a challenging occupation.
Unless you can “see” a circuit working, you have no idea where to look or visualise how a faulty component will affect the operation.
That’s what Talking Electronics is all about.
It aims to show the concept of seeing a circuit working and thereby designing it correctly in the first place or allowing the technician to fix it.
As you can see from these pages, the designers of many circuits do not have the ability to do this and when they say it is not possible to have the ability to “see” a circuit working, you can see why they are making these mistakes.
It’s only by reading lots of articles and studying many different circuits that you will improve your capability.

There are actually two different requirements for a text-book.
No-one has actually thought of this before.
Students source information for two different reasons.
In most cases a student wants to cover a topic completely … starting from the beginning and covering EVERYTHING.
But another requirement is for an answer to a specific question.
That’s where Google comes in.
You simply type in your question and 10,000 answers appear in 0.1 seconds.
That’s the brilliance of the internet.
And that’s why text books are being relegated to the book-shelf.
I have donated my $4,000 set of Encyclopedia Britannica to the op-shop.
They were just taking up shelf space.
The same with many electronics text books.
You can find the answer quicker on the web.
To do this, just type: talking electronics and then your question, into Google and it will immediately provide the results. Google has cached every single paragraph on Talking Electronics website and it can provide an answer faster than any indexing by me.
It’s through these searches that the website gets 6,000 visitors each day.
And it’s through all sorts of odd questions from visitors that new topics can be written.
That’s how the website expanded into its 180MB present form.

Some of the most important concepts for understanding electronics is contained in these pages.
You can learn more from a faulty circuit than a hundred pages of text.
The author has serviced hundreds of TV’s and electronic appliances that failed after a week, month or year due to a circuit being on the “brink of failure” due to components or values that were just NOT GOOD ENOUGH.
Some of these faults were responsible for the collapse of some companies and certainly of some product-lines.
You can learn so-much from other peoples mistakes and this can turn you into a brilliant engineer.
That’s what these pages are all about.

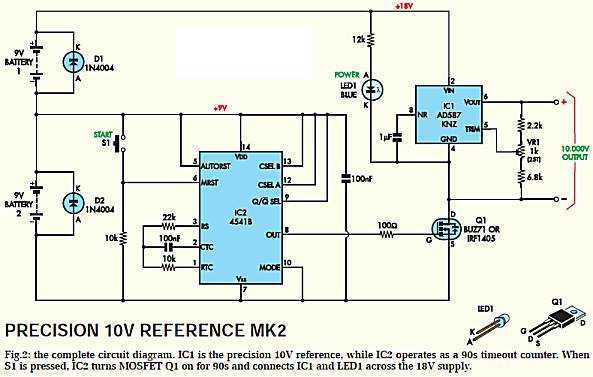

Here’s one of the stupidest projects imaginable.
It is a 10v reference to check the accuracy of a Digital Multimeter.

Firstly, most digital meters do not have any adjustment and it is pointless building an accurate voltage reference.
However I have found the reading from different meters to have a wide variation and I don’t know if the fault develops over a period of time or due to the inherent inaccuracy of the meter when purchased.
Instead of spending money on a complex project, you can simply use a few mercury cells or silver oxide cells to determine the accuracy of a reading.
Fresh mercury cells have a terminal voltage very close to 1.356v at 20°C and silver oxide cells have a voltage very close to 1.55v
You can use 2 or more of these in series to get a reading of say about 5v and check your meter accurately for a few dollars. You can then use the cells in a piece of equipment and not waste them.
The other problem with the circuit is this: the 4541 is connected to the battery AT ALL TIMES and the battery goes flat after a few months !

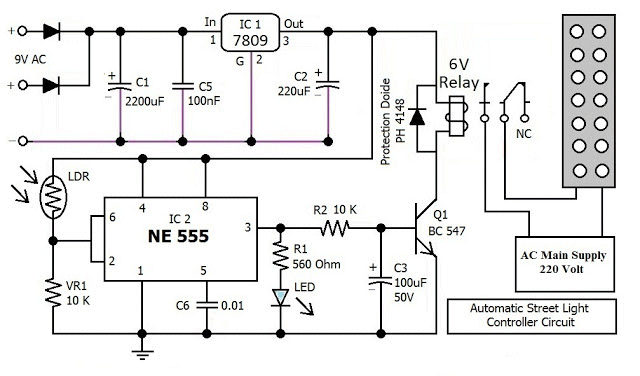

STREET LIGHT

http://hobbyelectron.blogspot.com.au/2012/03/automatic-street-light-controller.html

What are the 9v AC connections ????? How is the AC connected ???
Why use a 2200u for 100mA circuit ????
Why have a transistor buffer when the 555 will deliver 100mA !!!!
Why is C3 50v when the voltage will be 0.7v MAXIMUM !!!!
Why use a 7809 regulator when a 9v zener diode can be used.
VR1 is not a variable resistor. VR is used for a VARIABLE RESISTOR.

STREET LIGHT

The 555 IC takes 10mA ALL THE TIME and the battery will be flat in a few weeks !!! The 1k is constantly across the supply. The 555 will not “turn-ON” when pin 4 is floating.

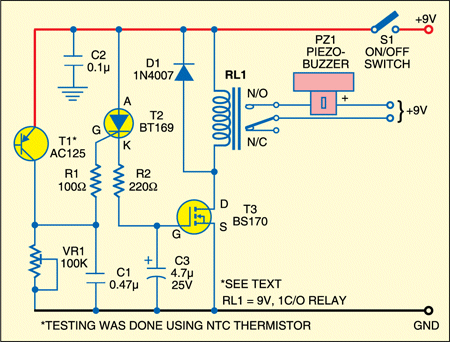

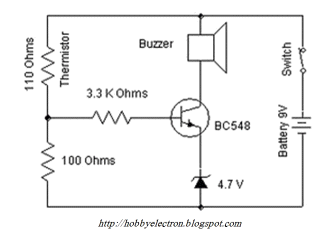

Here’s another circuit that may not / does not work:

Here is the poor description of the circuit as presented in Hobby-electron:
The thermistor resistance value is 110 ohms. Suppose the resistance becomes 90 ohms after heating the thermistor. Then the voltage across one resistor of the voltage divider circuit equals the ratio of that resistor’s value and the sum of resistances of the voltage across the series combination. This is the concept of a voltage divider. The final output voltage of the voltage divider circuit is now applied to the NPN transistor (BC548) through the base resistor (3.3k ohms). The emitter has a 4v7 zener diode. Emitter voltage is maintained at 4.7volts via the zener diode. This voltage is used to compare voltage. Transistor conducts when base voltage is greater than the emitter voltage. Transistor conducts if it gets more than 4.7volt of base voltage. Then the circuit is completed through buzzer and it gives sound.

The above statement is correct, but the voltage on the base has to be 4.7v plus 0.6v = 5.3v.

To get 5.3v on the join of the two resistors, means the thermistor has to drop to 70R.
At 5.3v, the transistor just turned ON and the thermistor will have to go to a lower resistance to allow the transistor to deliver CURRENT to the buzzer. It will be difficult for the circuit to work successfully.

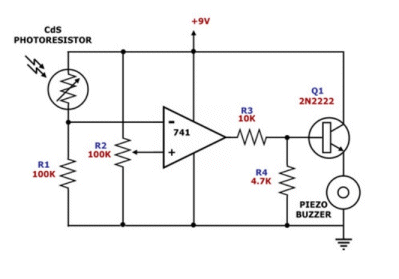

Here’s another circuit that may not / does not work:

The voltage available for the piezo buzzer is less than 9v.
The output of the op-amp will be a maximum of 8.5v.
The voltage divider will drop this to 4v.
The emitter will be 3.4v The piezo buzzer will not be very loud !! But some buzzers produce an output when the supply is 5v, so get a 5v buzzer and remove R4.

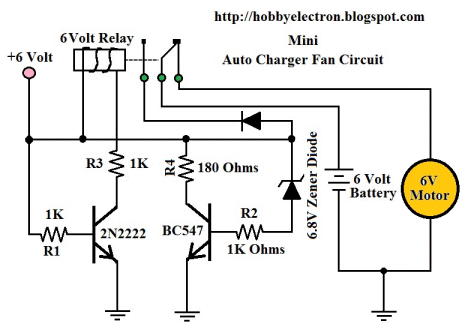

http://hobbyelectron.blogspot.com.au/2011/08/mini-auto-charger-fan-circuit.html

The BC547 is supposed to control the charging of the battery.
The 6v input voltage will NEVER charge a 6v battery.
The BC547 transistor and 180 ohm resistor will simply add a small load to the 6v (should be about 9v) supply.
It will have NO effect on adjusting the current to the battery.

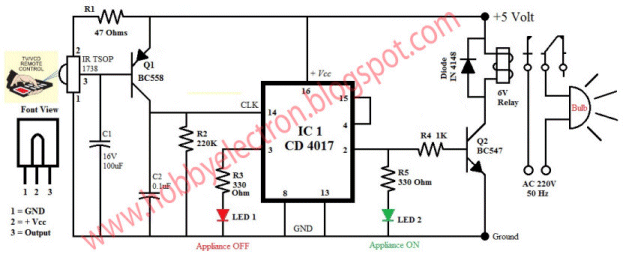

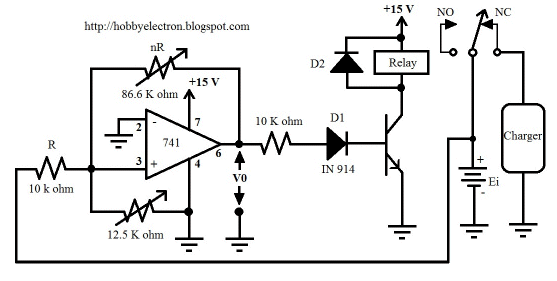

This is another circuit that DOES NOT WORK. It has never been built or tested.

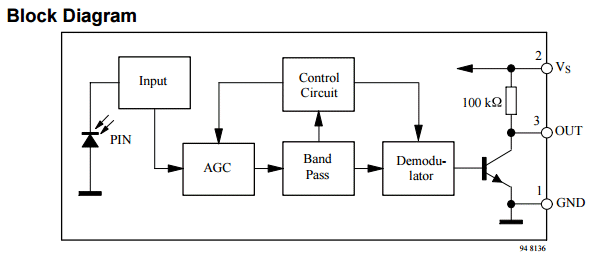

When the TSOP1738 turns ON, the transistor inside the detector and the BC558 will allow a very high current to flow because there is no current-limiting resistor.

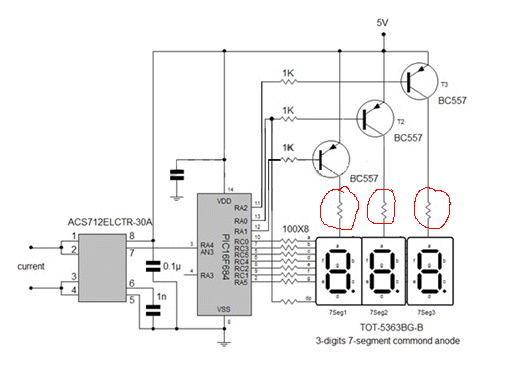

Another circuit that has never been tested.

You don’t need the digit resistors as well as the resistors for the segments. In fact the digit resistors will make the segments very dull when all the segments are illuminated. Another circuit that has not been tested.
The project does not provide information for the program for the PIC chip, so it cannot be constructed.

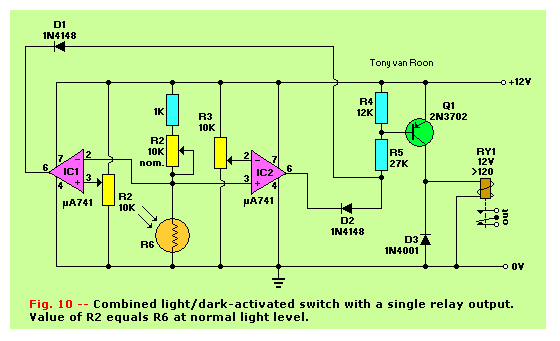

Let’s look at this circuit.
The op-amp is not needed.
The two diodes are not needed.
The circuit can be simplified to a voltage-divider that detects the upper voltage and activates the relay.
This is how the circuit can be designed:

Always check each component to see if it is necessary and look on the web to see if the same function has been done is a simpler way.

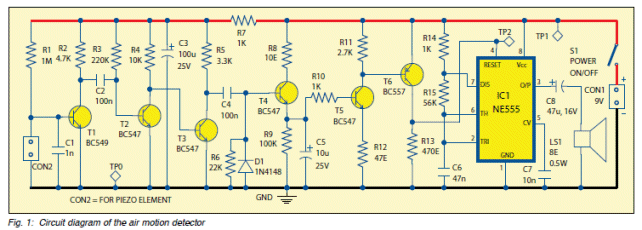

WIND CIRCUIT

Let’s look at this WIND CIRCUIT.
It produces a tone when a strong wind blows across a piezo element.
It has been designed by some who knows very little about electronics, but let’s look at the design-faults.
Firstly, the gain of a transistor is about 70 - 100 so you only need 3 transistors to convert the 10mV to about 2v.
There is no CURRENT REQUIREMENT because pin 4 of the 555 is a high impedance pin.
You only need to raise pin 4 two volts for the chip to turn ON - it does not have to rise to 9v. Pin 4 has to drop to 0.5v to turn the chip OFF. But when it is turned OFF, the chip still takes 10mA and that’s one of the reasons why a 555 should not be used.
The piezo element is equivalent to 22n, so C1 (1n) is NOT needed.
The piezo element is a very high impedance device and the 1M base-bias resistor is effectively acting as a LOAD. This is because the positive and negative rails are technically connected together as far a signal is concerned, due to the battery having a low impedance and the 100u across the rails.
If the 1M is changed to 2M2, the circuit becomes more sensitive.
The next important point to understand is the fact that the transistor effectively multiplies the collector resistor by 100 (the gain of the transistor) and if this resistor is increased to 47k, the stage will be more sensitive.
This means we can eliminate the second transistor. (actually the third transistor)
The fourth transistor is not needed as we can charge the 10u from the second transistor.
This electrolytic can be taken directly to pin 4 as pin 4 is a high impedance pin and the chip will turn ON.
Charging the 10u is not a high impedance operation, but we are using the TIME DELAY in charging it, to produce a delay before the 555 turns ON.
The 6 transistor circuit can be reduced to 2 or 3 transistors.
Two more components that show the designer has no understanding of electronics:
The 10R resistor R8 is not needed.
The 470R R13 is a low value across a high impedance pin. This can be increased to 1M.
This circuit shows a complete lack of understanding of IMPEDANCE VALUES.
Impedance values are effectively resistance values and both the detecting device and pin 4 are high impedance.
The surrounding circuit should also be high impedance. That’s the skill of being a design-engineer.
Read the article: THE TRANSISTOR AMPLIFIER.

MAINS INDICATOR

Neutral must NEVER be connected to ground.
The actual project does not connected the neutral lead to ground (earth) and the circuit diagram is INCORRECT.
If you connect the neutral lead to the earth lead on a project, the fuse will blow if the active and neutral are swapped.
They may get swapped if you use an extension lead that has been wired incorrectly.
The circuit will deliver about 35mA. The LED will take 10mA.

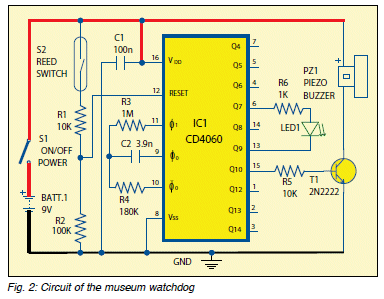

MUSEUM ALARM

Another badly designed circuit from T.K. Hareendran

Why have a circuit taking power all the time. ????
You can get reed switches that are change-over or have two contacts that are separate when a magnet is present and make contact when the magnet is removed. This way the circuit takes NO POWER.
What is the purpose of R1. ?? The reset line is high impedance and does not need a 10k resistor.
Using Q7 and Q9 to blink the LED will put a reverse voltage on the LED. Use one output and 0v.
The battery will be flat in a few months.

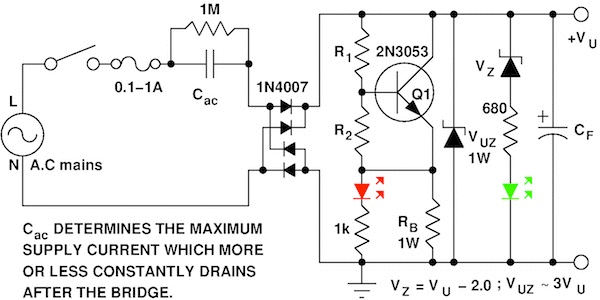

CAPACITOR SUPPLY

Here is a capacitor-fed supply, dressed-up to look impressive, by using a few “uz” values, on an Electrical Design Network website, from Raju Baddi:

But is just another over-designed piece of RUBBISH and none of the 56 replies from the readers had any understanding of the dangers of this project.
The circuit is classified as a CONSTANT CURRENT CIRCUIT. What is the purpose of the transistor???? It does nothing AT ALL.
I can’t blame Raju Baddi for this rubbish circuit as none of the readers (except 3) realised the dangers of this type of supply.

There are so many mistakes with this circuit, that is should never be built.
Here are 5 faults:
A 100R to 220R safety resistor should be included in the AC line.
The earth symbol should be removed.
The circuit is overly complex.
The circuit will deliver 7mA for each 100n of the X2 rated AC capacitor for a 240v mains.
This is all that is required and not all the rigmarole of a formula.
The circuit will not drive a 555 using a 0.068u as the 555 requires 10mA! There is nothing left to drive the LED
Transformerless circuits like this are very dangerous and BANNED in Australia.
There is no point in using a 2N3053 when Rb is only 1 watt!
There is no point in using zener Vz when a current limiting resistor is also employed.
The Engwish used in the text is undecipherable. What does: “Cac constantly drains after the bridge” mean????
Just a bad circuit with NO technical expertise behind it.

This is my reply to the project on the Network website:

This is an extremely dangerous circuit.
All the comments such as: “I’m a little surprised to see so many comments that call this type of reactive supply unsafe ” are quite ABSURD.
As soon as the wires to the mains are reversed, the device being charged is at a potential of 180v or 345v.
There is no such thing as 120v or 240v (This is another fact that all readers have overlooked). The power supply may be insulated, but no mobile phone or toy is insulated to this degree.

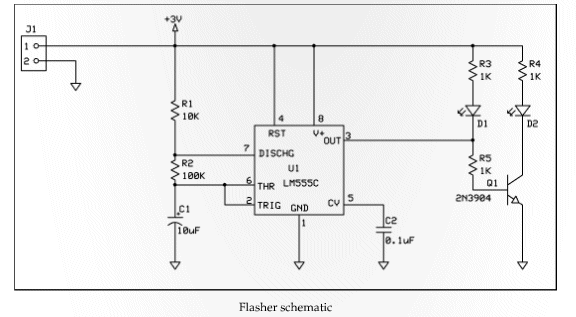

FLASHER

What is the purpose of the transistor ??
Remove the transistor and connect the LED between the lower lead of R5 and the 0v rail.

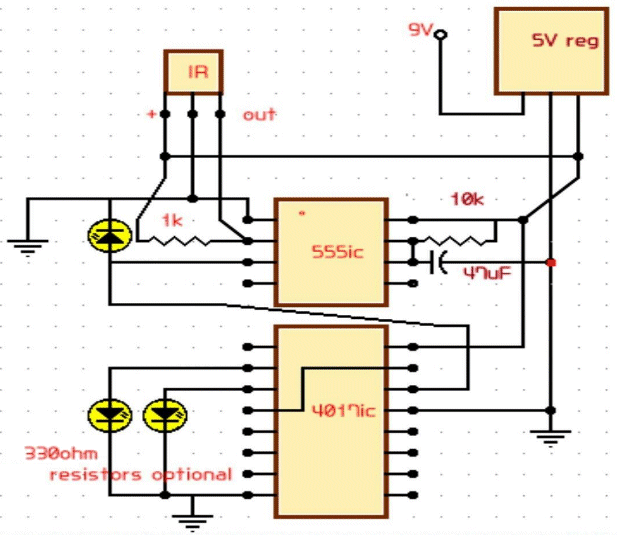

Here’s a project for beginners from Jameco Electronics:

It is filled with mistakes. I could not build it and I’ve had 50 year experience in electronics.
What is a 3-pin “IR” ???? The text says it is an IR transistor.
Pin 4 of the 555 is not connected.
No 330R current limiting resistors on the LEDs.
The diagram is NOT a circuit diagram. It is very difficult to work out what is happening if you don’t draw a CIRCUIT DIAGRAM.
The 4017 will never “clock” with a LED on the clock-line.
Just another JUNK circuit - not to be constructed.

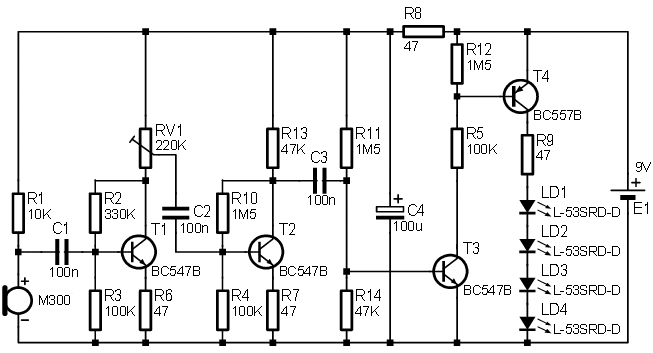

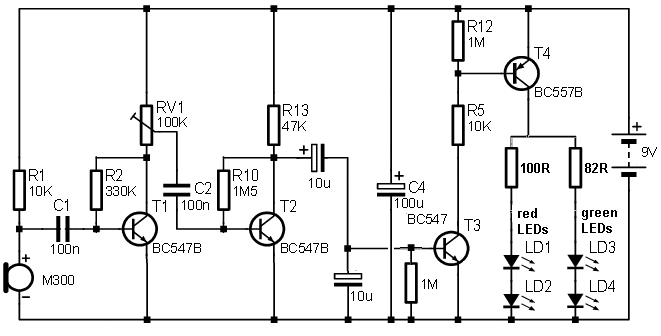

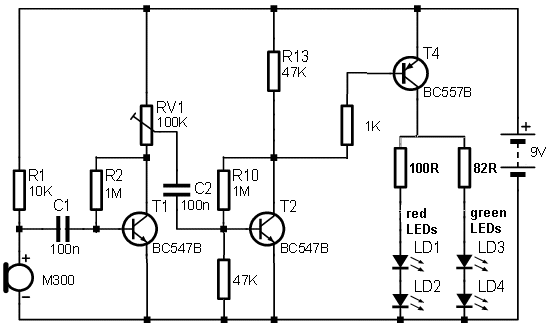

AUDIO LEDs

Here’s a poorly designed circuit from Velleman. It is over-designed. You don’t need to bias the transistors into their “linear range” for a simple amplification requirement. This is not an AUDIO AMPLIFIER. It is just a SIGNAL AMPLIFIER.

The second diagram allows the battery voltage to drop to 5v before the circuit fails to work.
It also has a slight delay to create after-fade for the LEDs.
All the unnecessary components have been removed.
This project show the lack of circuit-understanding on the part of Velleman engineers.
The whole secret of designing a circuit is to use the least number of components and avoid as many mistakes as possible.
The original circuit will stop working at 7v and the third 100n should be increased to 1u to 10u as the current increases through the circuit.
The 100k on the base of the base of the 4th transistor is far too high. The 47R as the current limit resistor shows a complete lack of understanding “head-room” for strings of LEDs.

The circuit can be reduced to 3 transistors and fewer components.
The original circuit did not take full advantage of the gain of each stage and the revised circuit is just as sensitive with 3 stages:

The final circuit uses just 3 transistors and fewer components

We have had to reduce the sensitivity of the second stage so the LEDs do not turn on due to the background noise.
The first stage in the circuit is really the microphone and 10k as the microphone contains a FET transistor and this is effectively an amplifying component.
The 10k resistor is far too low for a microphone in a normal audio amplifier as our electret microphones need 47k current limiting resistor for 9v. When using 10k, the output is far too loud and completely distorted because the 10k is allowing far too much current to flow through the microphone .
For this circuit we only need a signal and the quality of the signal is not important.
The next stage is a self biased transistor with a gain of about 70 to 100. It does not matter what type of transistor you put in this stage. The gain of most transistors is above 100 but the 1M between the base and collector is effectively a feedback resistor that reduces the gain.
The output is taken to another self-biased stage with the biasing on the base creating less than 0.6v so the transistor is NOT TURNED ON.
The actual voltage is about 400mV. This means the signal coming from the microphone and through the first amplifying transistor has to be about 300mV or more, to increase the voltage on the base to above 600mV to turn the transistor ON. The slightest noise produces this type of signal.
Once the second transistor is turned ON, it pulls the base of the third transistor low via the 1k resistor and this allows it to illuminate the LEDs.
The circuit consumes less than 0.5mA when “sitting around” - this is called the QUIESCENT STATE.

See our 30 LED Projects for more circuits like this.

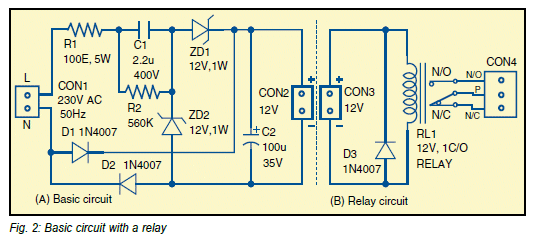

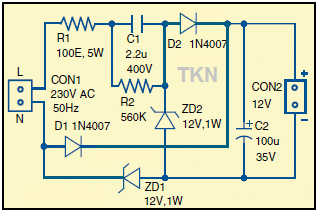

FAULTY BRIDGE

Look at the blurb T. K Hareendran says about himself and yet he cannot draw a bridge rectifier circuit. Almost all his circuits have faults. He knows practically NOTHING about electronics and you can see some of his other faults in previous pages. Here is his blurb:

T.K.HAREENDRAN I am an Internationally Certified/Technically Qualified Professional Freelance electronics circuit designer, technical writer, columnist, consultant, domain expert&trainer based in Kadakkal (Kollam-Kerala) India.My works have appeared in leading print&online media, in India and abroad, since 1988.I write on varied topics including Electronics, Computer, Technology, Business, Healthcare, Astrology and Life, etc. My articles have appeared/scheduled to be appeared in Electronics For You(I), Elektor Electronics(UK), Silicon Chip(AU), Nuts&Volts(UK), Everyday Practical Electronics(UK), Electronics Maker(I), Electronic Design(UK), Infokairali(I), Electronics Cable Chip(I), Television For You(I), Electronics Hobby Circuits(I), Malayala Manorama(I), Mathrubhumi(I), Deshabhimani(I), Balabhumi(I), Mangalam(I), Labour India (I), Kunkumam(I), Hasyakairali (I), Techvidya(I), Cartoon plus(I), Madhyamam (I) and several other publications. I have authored a number of best seller books, e-books, electronics/computer repair manuals and interactive tutorial CD/DVDs. One of my best seller print in Malayalam is “Electronics”- Published by Infokairali(I). Follow me on http://twitter.com/tkhareendran

I have mentioned on many occasions, DON’T DRAW CIRCUITS IN A NON-CONVENTIONAL WAY.
The circuit above is just a MESS and no-one will be able to see the mistake because of the way it is drawn.

Here’s an explanation why the circuit WILL NOT WORK.

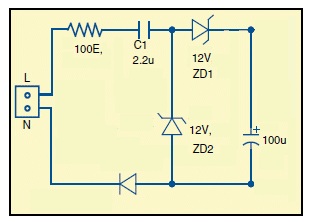

Firstly we draw the circuit with the “L” wire producing a POSITIVE waveform:
I have removed all the unnecessary writing and components that are not involved.
At this point in time I do not know if the circuit will work, so let’s go through the situation.
Basically the current runs around the outside with the resistor, capacitor, zener, electrolytic and lower diode.
The 100u would normally see 345v across it but ZD2 reduces the voltage to 12v. This means the maximum voltage produce by the circuit is 12v across ZD2. If we now have ZD1 removing 12v from the “supply” the electrolytic will see ZERO VOLTS !!!

The 100u sees ZERO VOLTS !!

Now we go to the second half of the “charging cycle.”

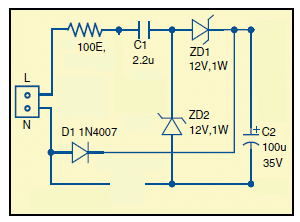

Here is the circuit:

Everything looks good until you analyse the circuit and re-draw it so you can see what is happening:

The Neutral is now producing a POSITIVE waveform and this passes through diode D1 to the 100u and via ZD2 to the 2u2 and 100R current limiting resistor.
But ZD1 limits the voltage across the 100u to 12v and if ZD2 removes 12v from this “supply” there is no voltage available to charge the 100u !!
It’s a simple as that.
But to see these faults, you MUST draw the circuit in the CONVENTIONAL WAY so you can “SEE” what is happening. I had no idea the circuit would not work until I re-drew it.
I am not “Mr Marvel Man.” I cannot see through buildings or see how a circuit works unless it is drawn correctly.
But just seeing a project by T. K Hareendran makes me look closely and analyse things thoroughly. His junk circuits can be seen everywhere.

Here is his reply:

The prototype is working well here since the last 90 days. However, I will send you an explanation after reading your fantasy posted in spot the mistakes.

Writers like this should be exposed for their total lack of understanding electronics. Even when you explain why a circuit does not work, they fail to comprehend the facts.

He has now provided a correct circuit. But no mention of the mess he produced in the magazine, messing up the readers who will try to get the circuit working.

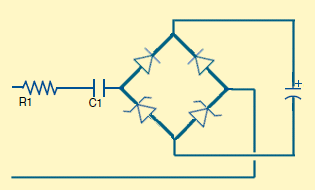

Correct Bridge Circuit

But he still hasn’t learnt how to draw a circuit correctly, so you can what is happening. It’s no wonder he doesn’t understand electronics.
I wouldn’t understand electronics either if I produced jumbled circuits.

Here is the correct layout for the circuit so you can understand what is happening:

CORRECTLY DRAWN CIRCUIT

You can see the positives of the diodes are at the top and you can quickly trace through the circuit to see the two charging paths.
There is always one zener across the supply to create a maximum of about 12v (actually 12v - 0.7v). If you draw a circuit like this, you CANNOT make a mistake.

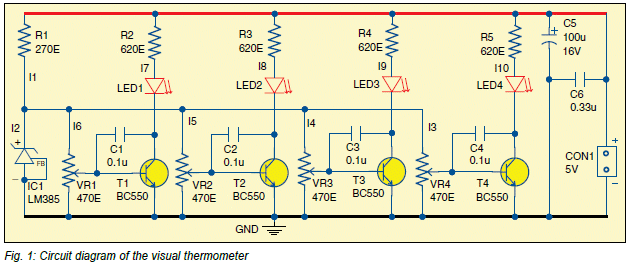

Here’s another circuit from Electronics For You June 2015, that does not work:

The voltage on the top of the LM385 is determined by the 270R resistor and the four 470R pots in parallel.
The combined resistance of the 4 pots is 117R. The voltage at the join of the 270R and the 4 pots will be (5 / 387) x 117 = 1.51v
The LM385 is an accurate voltage source that produces 2.5v. But ONLY 1.51v is available !!!!
Another untried, untested, circuit from: Petre tzv. Petrov.
Electronics For You never tests anything and most of the circuits they publish in their magazine DO NOT WORK or are too complex for the required task.

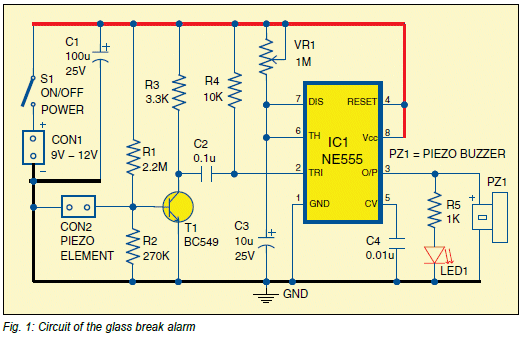

Here’s another circuit from Electronics For You June 2015, that does not work:

The biasing of the transistor will always produce more than 0.7v and it will be TURNED ON.
The 0.1u will be charged.
To activate the 555, pin 2 must be taken LOW and for 12v supply, this will be less than 4v.
In other words the 100n must discharge via the 10k and then the transistor must pull the 100n to a low voltage (before it gets charged again) so pin 2 activates the 555.
This is a very MESSY situation and the circuit is poorly designed.
Firstly the piezo has to work against the 2M2 to turn off the transistor. Then the 100n has to work against the 10k to pull pin 2 low before it gets charged via the 10k.
I would consider this circuit to be very unreliable in picking up the short sharp pulse of a breaking window.
In addition, if the pot is turned fully clockwise, pin 7 will create a short-circuit and damage the pot.

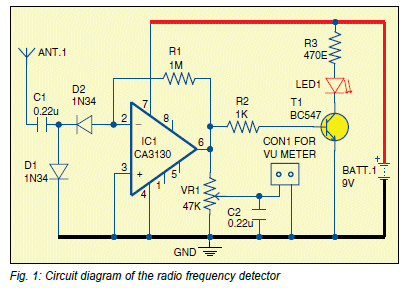

This circuit by D. Mohan KUMAR shows a complete lack of understanding of electronics.

The 220n at the front end can be as low as 100p. It certainly does not have to be 220n as the front end is high impedance and the germanium diodes allow voltages as low as 200mV to be passed to the IC.
The impedance of 100p at 1MHz is 1k6 but if little or no current flows through the capacitor, little or no voltage will be dropped across it and thus it will produce little or no loss. So, any value above 1n is unnecessary.
It just shows the lack of understanding to use 220n. And of course, D. Mohan KUMAR has NO electronics understanding and produces a myriad of JUNK circuits that either do no work or use incorrect value components.
That’s why it is so difficult for Indian students to get a good grounding in electronics, when you have magazines and “Professors” who publish rubbish circuits.

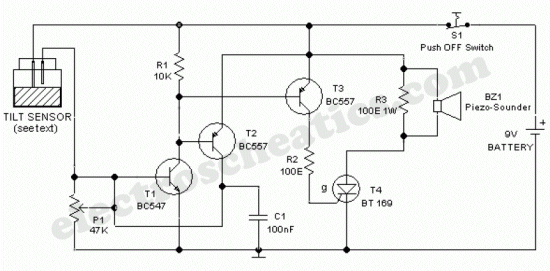

Here’s another junk circuit from T. K Hareendran.

The main design-fault is the fact that the “k” of the BT169 is effectively 0v when the circuit is at rest and when the gate voltage rises, the “k” lead rises too and the BT169 has great difficulty in trying to turn ON.
It may turn ON due to the 4u7 slowing down the rise of the “k” lead but this is not the correct way to operate a thyristor.
Secondly, since we have turned ON the thyristor, we can use it to turn on the relay. So why use a FET to drive the relay ??
Where are you going to buy a AC125 germanium transistor?

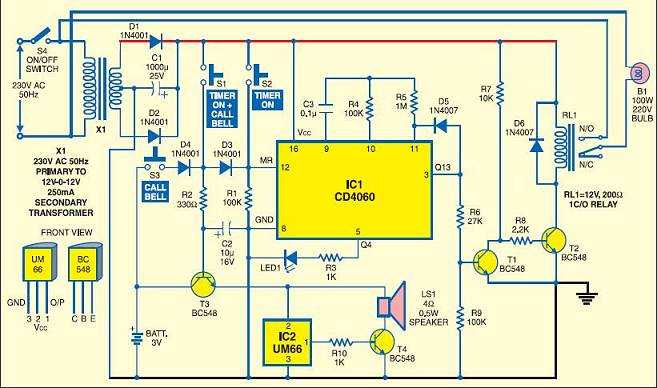

Here’s a stupid circuit from SURESH KUMAR K.B:

Why use a separate 3v battery when you have a transformer driving the circuit?
Why connect the speaker to 3v - 0.6v = 2.4v ???
Push the CALL BELL switch. What is it going to do??? T3 will turn ON with 2.4v on the base and 1.8v on the emitter. The UM66 and speaker will see 1.6v !!!!
Push the TIMER ON + CALL BELL switch and the base of T3 will see 17v and the UM66 will see 17v via 330R - It must not see more than 3v. What do you think will happen !!!!!!!
There are other faults such as supplying more than 18v to the CD4060 and what’s the purpose of R8 ? (2k2).
Just an untried, untested circuit from SURESH KUMAR K.B.

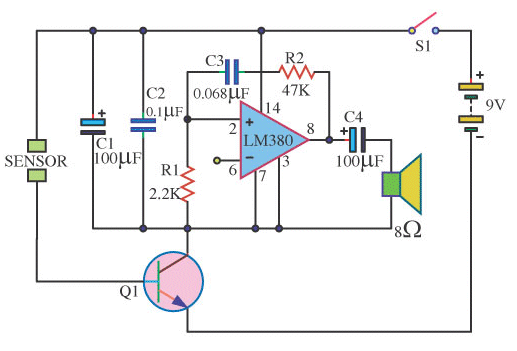

Here is a circuit that needs careful attention.

There is no information on the sensor. In fact there is almost NOTHING you can connect to the sensor connections.
If you connect a switch to the sensor connections, the transistor will BLOW UP !!! The current through the base-emitter junction will damage the transistor.
If you put your finger on the sensor pads, the transistor will not turn on sufficiently for the amplifier to drive the speaker.
In fact there is nothing you can connect to the sensor. Who designed the circuit ????

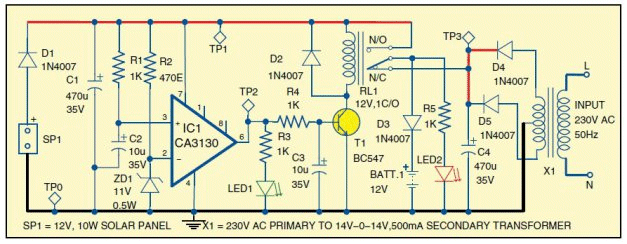

Here’s another junk circuit from D. Mohan KUMAR

Two major faults with the circuit. Charging via the solar panel just needs a 11v zener connected to the transistor.
The output of the 14v transformer will be 20v DC and a 100R resistor is needed to prevent the current rising to more than 500mA.

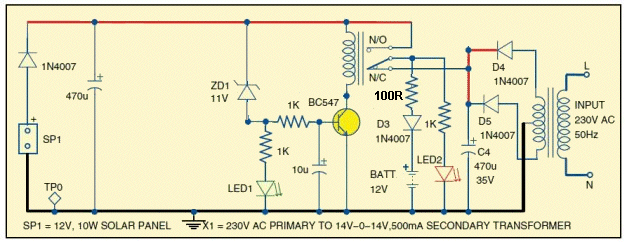

The corrected circuit is:

Electricity is so cheap. I don’t see the point in buying a 10watt panel when the battery can be charged from the mains. 10 watts x 8 hours x 360 = $6.00 per year !!

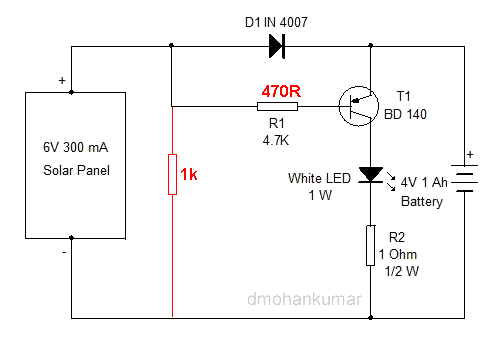

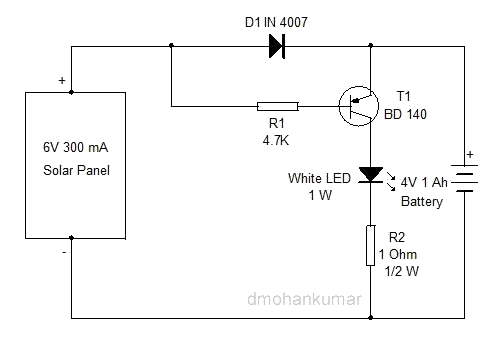

Here’s another untried, untested, “dreamed-up” circuit from “Professor” D. Mohan KUMAR:

When a solar panel does not received any illumination, the output becomes ZERO but the resistance (impedance) across the terminals does not become a low resistance. It is effectively a very HIGH resistance.
The 1N4007 prevents the voltage from the battery entering the solar panel and delivering a small current. But this current is very small and when the battery voltage is less than the voltage that is capable of being generated by the panel, this current becomes EXTREMELY SMALL. Each 0.6v generated by the panel is derived from a sol cell and when a number of these are in series and not producing a voltage, the effective resistance to an incoming voltage is very high until the incoming voltage overcomes the “junction resistance” produced by each cell.
In the circuit above, the 4v battery was TESTED and it delivered NO CURRENT into a 5v or 6v solar panel.
This means NO CURRENT will flow in the 4k7 when the panel is not illuminated.
This mans the circuit will NOT turn ON during the night.

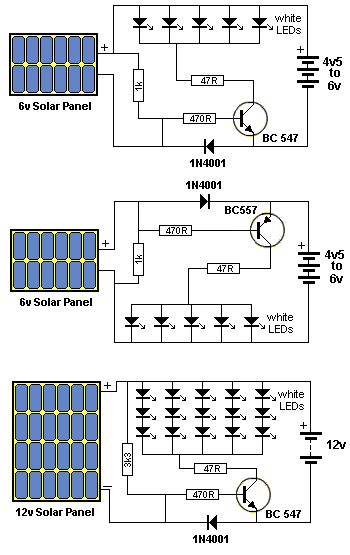

The circuit needs a 1k across the panel and the 4k7 needs to be 470R as shown in red.
This will allow about 3mA to flow in the base and if the transistor has a gain of 100, about 300mA will flow in the LED.
The original circuit WILL NEVER WORK.

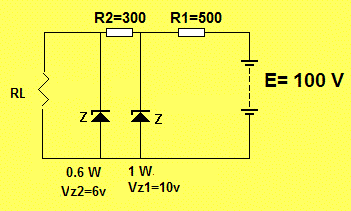

Here is a homework question from an instructor:

The power rating and the zener voltage of the two zener diodes (Z1 & Z2) used in the circuit are 1 watt & 10v and 0.6 watt & 6v. Minimum zener current needed for the satisfactory operation of both zener diodes is 2 mA.
Find the range of RL values in which the circuit can be used as a voltage regulator.

The circuit is totally impractical and, as you will see, completely unworkable.

We start by seeing the 500R has 90v across it and this means 90/500 = 180mA will flow.
180mA will flow through the 10v zener and this means 10 x 0.18 watts will be lost in the zener. This is 1.8 watts and the zener is only a 1 watt device. It will BLOW UP.
Let’s pretend it is not damaged.
The voltage across the 300R resistor is 10v minus 6v = 4v.
The current through the 300R resistor is 4/300 = 13.3mA
We can take 11.3mA for RL.
The resistance of RL = 6/.013 = 462 ohms.
RL can be 462 ohms or higher.

This explanation was removed from the FORUM because they do not like homework to be answered.
But after 2 weeks no-one provided any help and the value of the FORUM is WORTHLESS.
The fastest way to learn any subject is to be given all the answers.
You then have a choice of looking at part of the answer to see how you are progressing.
Obviously those in charge of the electronics forum have no idea how to teach.

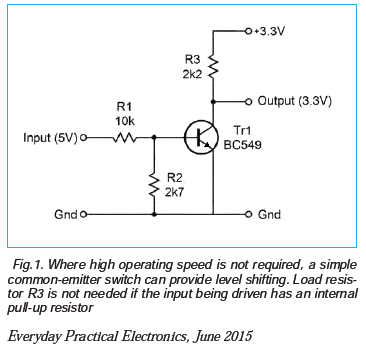

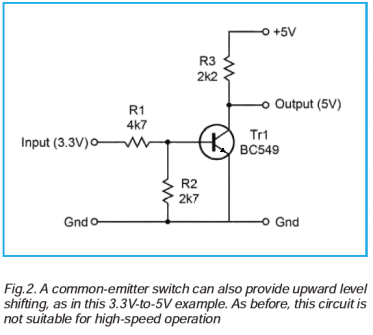

LEVEL SHIFTER

A poor design by Robert Penfold.
This is not a Level Shifter but a Level Shifter AND Inverter

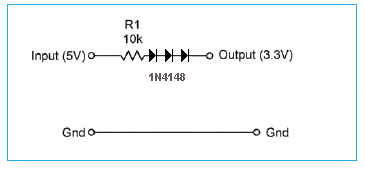

All that is needed is a set of 3 diodes to remove 1.8v from the 5v line to get 3.2v:

This circuit provides LEVEL SHIFT without INVERSION

Figure 2 can be improved by designing a circuit that shifts the level but does not invert:

PIC Books for immediate FAST download without any tricks or traps:

http://pictutorials.com/PIC_books.htm

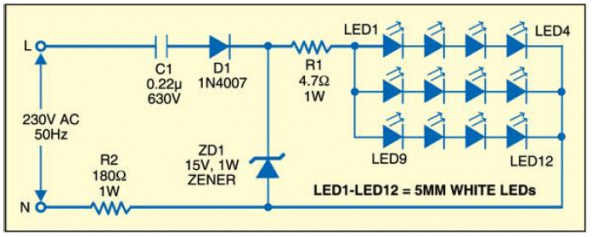

LED LAMP

Two fault with this circuit. How is the 0.22u capacitor discharged? The zener should connect to the capacitor.
The 0.22u will deliver a maximum of 7mA. That’s 2mA for each LED. How bright will they be???
Why use a zener when the capacitor-fed power supply is a constant current supply.
What is the point of adding the 4R7 ??
Just another useless circuit from Electronics For You magazine.

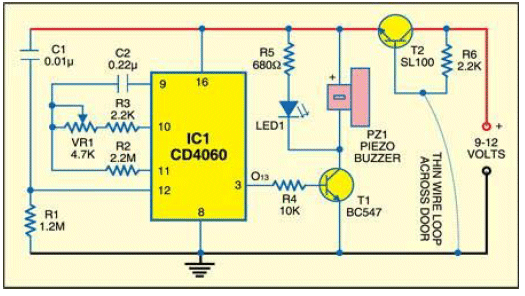

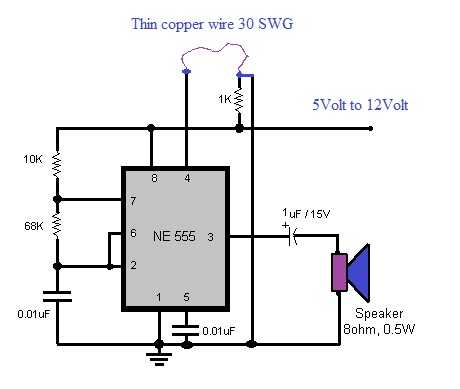

Here’s another stupid circuit from Electronics For You.
The alarm sounds 30 seconds after the thief has broken the wire across the door.

The circuit takes 5mA while sitting around. The battery will be flat in a few months.
The circuit could be re-designed to take a few microamps by freezing the oscillator of the chip.
Why sound the alarm after 30 seconds ??? The circuit is useless !!!!

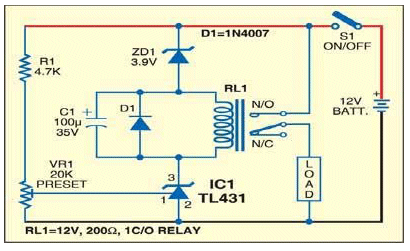

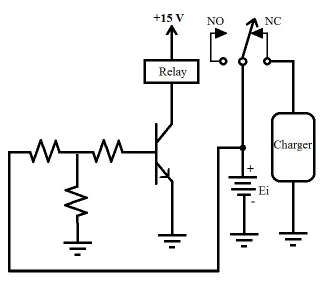

BATTERY PROTECTOR

The life of a battery dramatically reduces when it is discharged below the minimum recommended voltage.
This circuit switched off the load when the battery falls to a certain voltage.

The circuit is too complex. It just needs a zener diode and a relay. You can include an ordinary diode if you want to decrease the set-voltage by 0.6v.

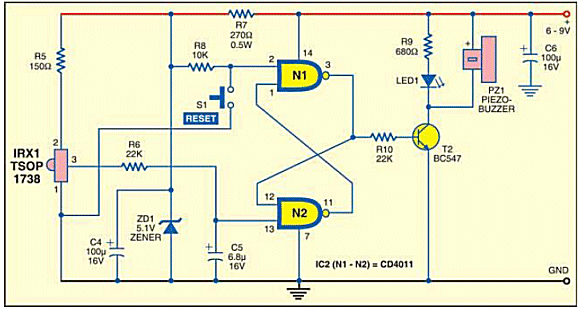

Not a well-designed circuit.
The supply voltage to the IC is 9v. The voltage on the inputs to the gates should be close to 9v to guarantee the IC registering a HIGH.
The TSOP1738 takes a few milliamp and the voltage on pin 2 will be less than 5v. The voltage on pin 13 will also be less than 5v and it is getting very close to the point where the chip will not detect the voltage as a HIGH. A chip really need 66% of rail voltage (nearly6v in this case) and less than 5v is going to be doubtful.
Another circuit from Electronics For You, designed by a reader who has little or no understanding of electronics. Anyone building this circuit would have a hard time detecting why it does not work.

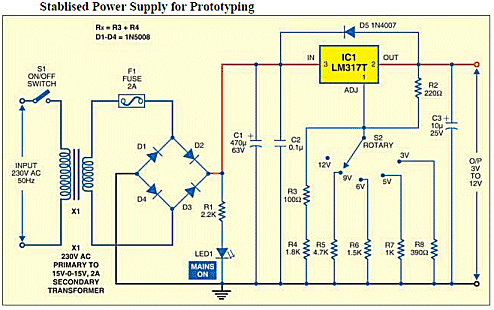

POWER SUPPLY

This is a very BAD and DANGEROUS Power Supply because the output immediately rises to 12v when the switch is changed from one position to the next because the contacts become “open” during the switching-action and the power supply “thinks” you have chosen “12v.”

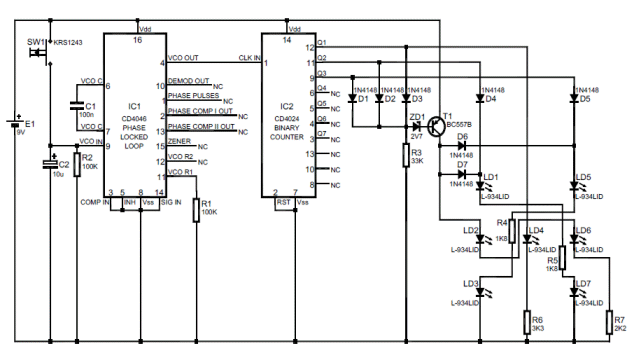

DICE

Here’s a faulty circuit from Velleman

If you go through the logic of the outputs of the CD4024 chip, you will find the sequence is 1, 2, 3, 2, 3, 4, 5, 6.
This is because there are 8 cycles of the first three outputs as 0,0,0 produces a HIGH from the transistor to turn on 6 LEDs and then there are 7 more combinations.
I have never seen a worse DICE circuit. Imagine if a player selected 2 or 3 to WIN.
He would “scoop the pools” and walk away with the jackpot !!

Reply from kit supplier:

Yes, the kit is not a true random number generator, or even a pseudo-random number generator. It is meant only to simulate dice rolls. It has virtually no capacity to predict randomness.

My reply:
Why don’t you say on the kit page that 2 and 3 will appear more often than the other numbers??

It probably doesn’t matter for some board games, but if you are trying to make a DISTRIBUTION CURVE to test the randomness of electronics, the circuit will produce a big mistake.

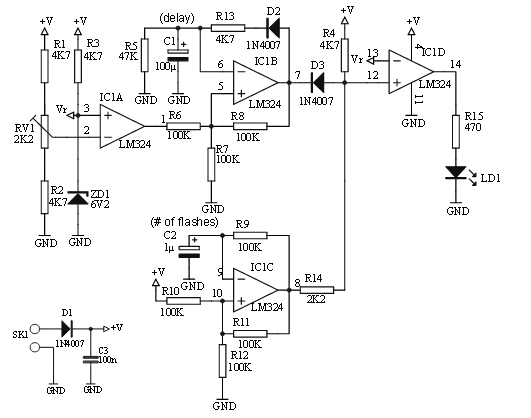

CAR ALARM

Here is a Velleman Car Alarm. It relies on the fact that the voltage on the “electrical system” is slightly higher when the car is running due to the fact that the alternator is charging the battery.

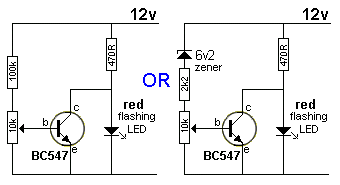

The whole circuit can be simplified to a transistor and RED flashing LED:

The two circuits above are an attempt to make it easier to detect the small change in voltage on the electrical system (across the battery). The second circuit puts a larger voltage-change across the 10k mini trim pot.
The skill in designing a circuit is to make it as simple as possible. Anyone can use a quad op-amp and 50 other components to flash a LED, but if you expect to have any chance of retaining your job, you need to keep things as simple as possible. Otherwise the opposition will come out with a simpler circuit.

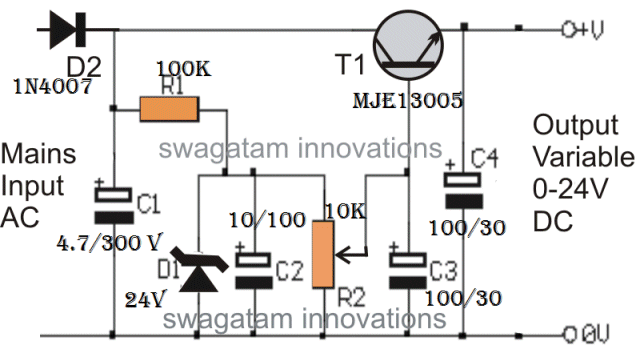

Here is another disastrous circuit from Swagatam.

The 100k and 10k resistors form a voltage divider.
If the Mains voltage is 240v, the peak will be about 300v and you will get about 30v at the join as the two resistors (as they have a ten-to-one ratio). The 24v zener will reduce this to 24v.
The current delivered to the combination will be about 3mA as 300v into a 100k resistor will deliver about 3mA.
24v across a 10k resistor will pass 2.4mA through the resistor. That leaves 0.6mA for the zener.
Now, here’s the problem.
How much current can you “get out of” the 10k resistor ???
The 10k resistor in this circuit is not like any ordinary 10k resistor with 24v across it.
This 10k comes as part of a voltage-divider and only a maximum of 3mA is available.
To work out what happens is VERY COMPLEX but we will simplify the problem by using different values of resistance across the 10k and see what happens.
If you put a 10k resistor across the pot, the resistance will be 5k and we have to work out the voltage divider situation again. 100k and 5k will produce about 15v across the combination - that’s because about 3v is developed across each 1k of resistance).
Immediately you can see the 24v has dropped to 15v and the zener regulator has lost its stability. THIS IS THE FIRST PROBLEM WITH THE CIRCUIT.
About 3mA will pass through the two 10k’s in parallel and each 10k will pass 1.5mA. If we now remove the 10k resistor and try to deliver the 1.5mA to the transistor, here’s what happens:
The transistor has a gain of 50 and this means it will deliver 50 x 1.5 = 75mA.
Another example:
If you put 1k across the 10k pot, about 3mA will flow in the 1k but the voltage across it will about 2v.
The whole circuit is absurd because if you want 3mA, YOU CANNOT GET IT because the voltage keeps dropping to ZERO !!!!

We have simply shown the circuit DOES NOT WORK and if SWAGMAN had built the circuit before making a fool of himself, he would have saved a lot of experimenters being frustrated.
Do not describe anything that has not actually been built, tested and used for a long period of time.
You need to try it with all sorts of load, all sorts of capacitors, all sorts of transistors to be sure it does not fail.
Very few people can “see” the failings in a design by looking at the circuit but these pages are designed to make you aware that this skill CAN BE LEARNED.

ALARM

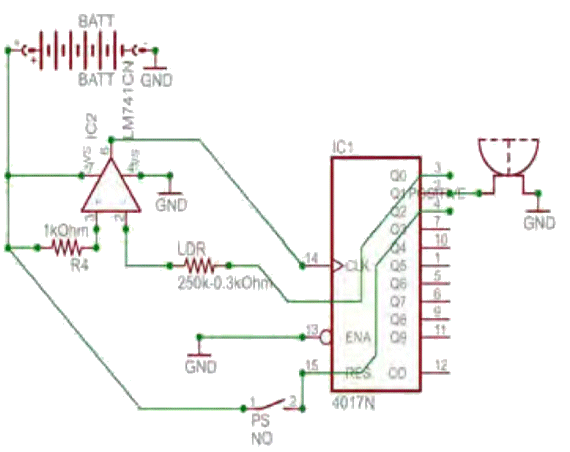

Here’s an alarm circuit with very poor design-features.
A 1k resistor on the input of an op-amp is not going to have any effect because the input is very high impedance and thus very little current will flow through the resistor and thus very voltage will develop across it.
The same applies to the LDR connected to the other input. The input pin is just like connecting the LDR to a nail hammered into a piece of wood. It is called a “floating terminal” or a “high-impedance pin.”
The op-amp will detect a change in voltage on either of the inputs but they are just like two nails hammered into a piece of wood. They effectively “don’t go anywhere.”
If you want the voltage to change on either pin, you must create this change via a VOLTAGE DIVIDER.
If you have a 10k resistor from a 9v supply connected to a nail, the voltage on the nail will be 9v. If you increase the resistor to 1M, the voltage on the nail will still be 9v. Obviously you have to measure the voltage with a very high impedance meter, but it will be 9v.
The input to an op-amp is just like a nail. It does not allow any current to flow though the resistor and thus no voltage-drop is produced across the resistor.
Thus the change in resistance of the LDR will not change the voltage on the input of the op-amp.
In reality, some op-amps might draw a very small current and the voltage will change, but this is not something you can rely on when designing a circuit.
The third fault is the reset button connected to pin 15.
This pin is also connected to pin 4 and at the moment the chip is producing a LOW on pin 4.
It is not a good design to connect an output of a chip directly to the positive rail when it is in a LOW condition. This is called a “conflict” and even though it might not damage the output, it shows poor-design.
The circuit is obviously not designed by a knowledgeable person.

Here a book with 100 simple projects. They have been copied from different magazines and some circuits have faults, but it’s a good book for ideas: MINI ELECTRONIC PROJECTS

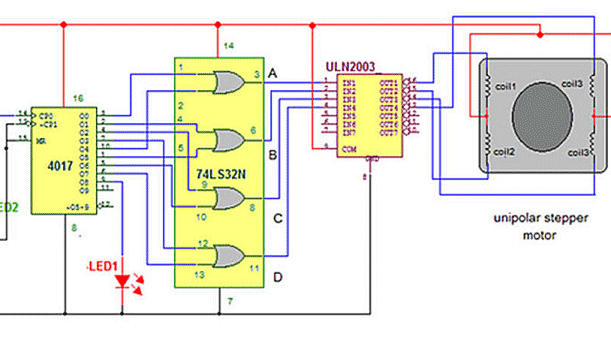

UNIPOLAR MOTOR

This discussion is to show why it is important to analyse each and every component in a circuit and decide if it is not needed.
I have previously shows the fault in a circuit that had 3 extra components and if you are making 100,000 units, this can represent a considerable cost.
The middle IC is a quad OR gate and the output of the 4017 drives A, B, C, D then A, B, C, D HIGH The middle IC can be removed and the first 4 outputs of the 4017 taken directly to the ULN2003 IC and after the 4th output does HIGH, the 4017 is reset and the cycle repeats.
I don’t think the rest of the circuit works efficiently anyway, but that is for another discussion.

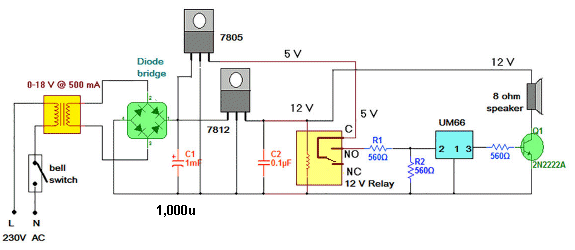

DOORBELL

Here’s a lesson how NOT to design a circuit.
Firstly, the bell switch is in the 230v line. No bell-switch is designed for 230v.It is designed for 12v.
What is the point in turning ON the 5v supply to the IC via a relay? When the switch is pressed, all the components can be activated via very simply circuitry.
The chip is designed for 3.5v. The voltage divider will produce a maximum of 2.5v
But when you look at the output, you see the output-to-ground is 560 ohm and because the supply is derived via a voltage divider, the 2.5v will be reduced further to about 1.7v MAX.
The voltage divider for the chip is classified as a HIGH IMPEDANCE SOURCE because any load on the output up to about 4k7 will reduce the supply noticeably.
The 5v regulator is not needed. The 3.5v can be derived from the 12v regulator using 100R and 39R resistors.

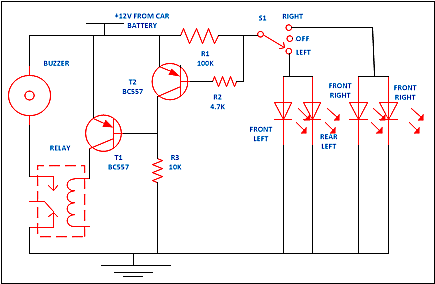

TURNING INDICATOR

Anjali Sethiya

Here is the description of the circuit according to Anjali Sethiya:

When you on the switch S1 for indicator of right or left side this will cause the voltage drop across resistor R1. This will drive the transistor T2 into conduction. And Transistor T1 also conducts which energise the relay and the buzzer connected to it start sounding. If you want you can connect your car indicator light lamp in place of LED’s.
Take care while using the value of resistor R1. It should be chosen according to requirement like if you are using LED its value may vary from 100 ohms to 1 K ohms.

Can you see the BIG MISTAKE?
Transistor T1 is ON all the time and is turned OFF when the LEDs are illuminated.
The turning LEDs should FLASH. The circuit does NOT DO THIS.
The LEDs are turned ON via the 4k7 resistor. They only get 2mA !!!!
R1 should be 100R to 470R NOT 100k.
This is a useless circuit. It is too complex and does not flash the LEDs.

TILT SENSOR CIRCUIT

Let me explain why this is the worst circuit on the internet. Not only has it been designed by

T.K.HAREENDRAN who states he is a “professional electronics engineer” with many circuits in many magazines, but it will blow up the transistors.

The circuit starts by connecting the battery and the 100n prevents voltage appearing on the base of the base of the first transistor.
This means the first transistor is not turned ON and both T2 and T3 are not turned ON.
When the tilt sensor allows current to flow into the base of the first transistor, it is turned ON
The tilt sensor will only turn it on a small amount and will not damage the transistor.
But as the transistor turns ON, a voltage develops across the 10k resistor and this allows T2 to start to turn ON.
It turns ON with a small amount of current into the base but 100 times more current flows in the collector-emitter leads and this current begins to turn on T1.
T1 now receives 100 times more base current and this action continues until both transistors are fully turned ON.
There is no current limiting resistor in the circuit and both transistors WILL BLOW UP.
At the same time T3 is turned on FULLY and it has no current-limiting resistor and it will BLOW UP TOO.
This makes it with worst circuit on the web.

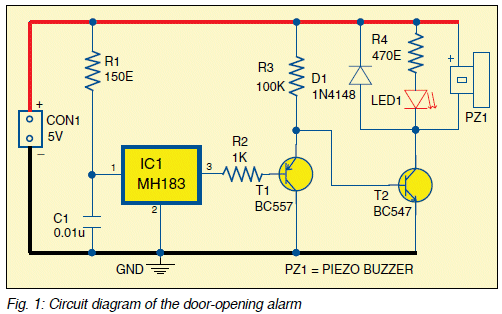

DOOR ALARM

When will Electronics For You Magazine stop publishing JUNK circuits?
If pin 3 is at 0v, the voltage on the base of the PNP transistor will be 0v. The emitter will be 0.6v. This 0.6v will be passed to the NPN transistor and it will be turned ON all the time.
The BC557 is an emitter-follower and the emitter is never less than 0.6v and the piezo will never turn OFF. This is simple, obvious, basic electronics. EFY doesn’t have any technical staff to see this fault. And yet they are running an electronics magazine in India - a country that says they are up with the latest technology!!!

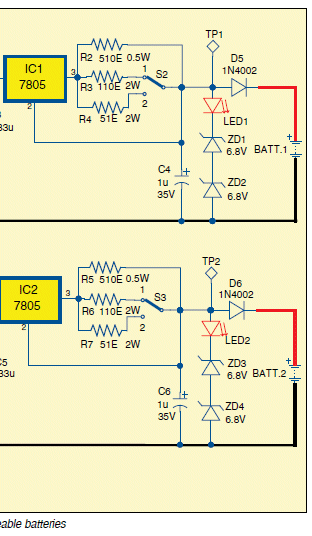

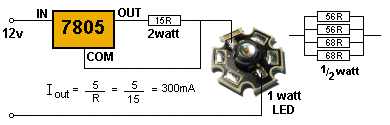

BATTERY CHARGER

The 7805 regulators are in CONSTANT CURRENT or CURRENT LIMIT mode and this means the output will rise and rise and rise until it reaches the input voltage (less 3v). This will happen when the battery is removed and on the output are two zeners and a LED.
These three components create a fixed voltage across them and the voltage cannot rise above 6.8v + 6.8v + 1.7v = 14.3v.
The 7805 is capable of delivering 1amp and the circuit reduces this current but it is still sufficient to damage the LED and when the battery is removed POOF! The LED blows UP !!
No-one at Electronics For You Magazine understands electronics and all the readers are delivered this sort of rubbish.

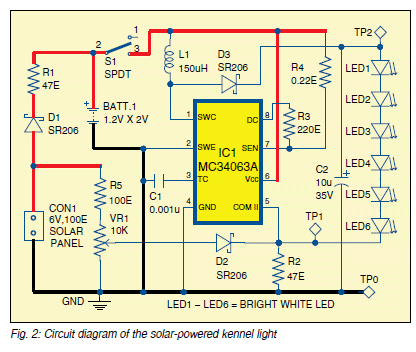

DOG KENNEL LIGHT

The above circuit from Electronics For You Magazine DOES NOT WORK. The chips requires a minimum of 3v. It has almost no capability at 2.4v.
What is the purpose of R1??
What is the purpose of R4 ??
R4 is called a SENSE RESISTOR and it detects a small voltage across it when a high current flows. It has a very low value so it does not reduce the voltage to other parts of the circuit. In other words, there must be a LOAD on the end of the resistor.
In this circuit the “sense” input is HIGH IMPEDANCE and almost no current flows though the 0.22R. It is pointless including this resistor in the circuit.
T.K.HAREENDRAN has no idea about impedance-values and doesn’t know how to design a circuit FOR NUTS.
Can you imagine buying all these exotic components for a DOG KENNEL LIGHT ! What does a dog need a light for? Does he read in bed????

The circuit can be simplified to:

The secret of a good design is to keep everything simple and use readily-available components.

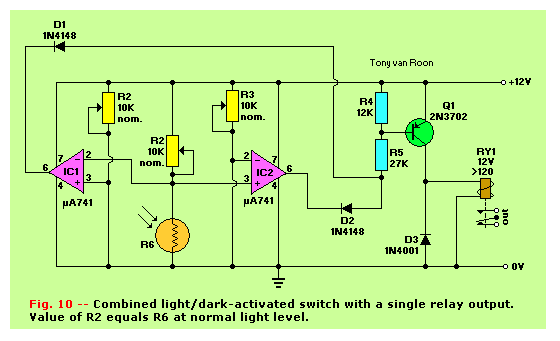

Here is a circuit sent in by a reader:

If the 10k mini trim-pots are turned fully clockwise, the very small resistance between one end and the wiper will cause a very high current to flow and they will be burnt out. The second diagram shows how the trim-pots should be connected to prevent any problem.
A 1k safety resistor can be added to the trim-pot connected to the LDR if you have a type that produces a very small resistance when detecting very bright light.

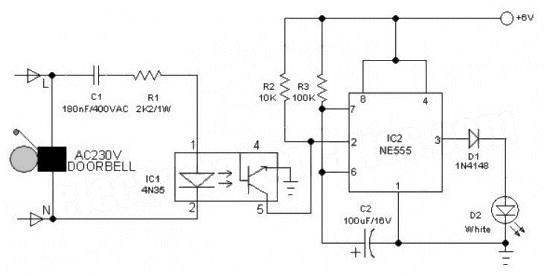

DOORBELL

Another disaster by T.K.HAREENDRAN

The LED inside the opto-coupler will see 250v or more as a reverse voltage and BLOW UP!
No current limiting resistor for the white LED.

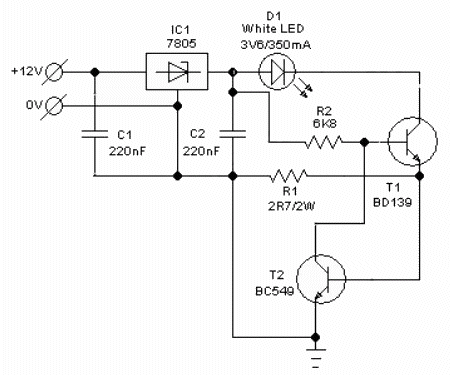

CAR LED LIGHT

Another disaster by T.K.HAREENDRAN This circuit can be replaced with a single resistor!!!!!!!

Before you start to design ANYTHING. Look on the web for circuits and see what has been done by PROFESSIONAL ELECTRONICS ENGINEERS.
This applies to ANYONE designing ANYTHING.
It will save a lot of embarrassment.
It is obvious that T.K.HAREENDRAN does not have a clue about designing a circuit and yet he keeps putting his rubbish into magazines and on the web.
And he keeps annoying me with rude emails about how incompetent I am !!!
I may be incompetent but no-one has emailed me to explain where my incompetency is or where I am wrong.
Until that time comes, you will just have to believe these corrections are factual.

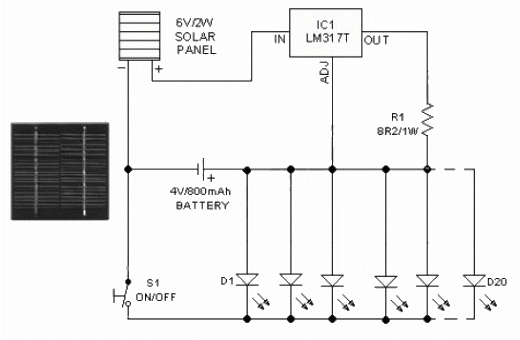

SOLAR CHARGER

Another disaster by T.K.HAREENDRAN

You don’t need the LM317. The small solar panel will not overcharge the battery. But if you get more than 5 hours sunlight, you can add a 22R to 47R in series with the solar panel to reduce the charge-current.
The solar panel needs to produce 4v plus 1.2v called the “floating charge” produced by the battery when it is being charged, plus a small voltage dropped across the 8R2 (1v) plus 2.5v dropped across the LM317. This means the solar panel must produce more than 8.7v so that a current will flow.
Remember this: At 8.7v NO CURRENT will flow because the solar panel is producing exactly the same amount of voltage that is “developed” by the circuit. It is a bit like connecting a 9v battery to another 9v battery. No current will flow from one battery to the other because the voltages are the same.
If the solar panel produces 9v, a current will flow according to the “overhead voltage” of 0.3v. The amount of current cannot be worked out because this current flows through the cells of the solar panel and these cells have a resistance or “impedance” that will limit the current.
So, the solar panel has to produce A LOT MORE VOLTAGE so that a current will flow.
Simply specifying a 6v solar panel is quiet useless. The solar panel needs to produce more than 9v to charge a 4v battery, using this circuit!!!!
The second problem with the circuit is this: The LEDs are connected directly across the 4v battery. White LEDs have a characteristic voltage of 3.2v to 3.6v. They will BLOW UP when connected to 4v !!!!

You will lean MORE through these discussions than any text book.
How do you think I became so clever? I fixed thousands of faults in electronic products and found out how NOT TO DESIGN A CIRCUIT. I found out thousands of things that NO TEXT BOOK ever explained.
