Transistor Test
Colin Mitchell
Colin Mitchell
Make sure to subscribe to our newsletter and be the first to know the news.

Try this test before reading The Transistor Amplifier and see how much you know:

Question 1:
What is the voltage at point “X:”

Choose from:

  1. High Voltage
  2. Mid-rail Voltage
  3. Low Voltage

Answer 1 - Close window before scrolling

Question 2:
What is the voltage at point “X:”

Choose from:

  1. High Voltage
  2. Mid-rail Voltage
  3. Low Voltage

Answer 2

Question 3:
What is the voltage at point “X:”

Choose from:

  1. High Voltage
  2. Mid-rail Voltage
  3. Low Voltage

Answer 3 Question 4:
What is the simplest way to turn this circuit into a DIGITAL CIRCUIT:

Answer 4 Question 5:
Will the voltage at point X rise when the emitter-resistor is added:

Answer 5 Question 6:

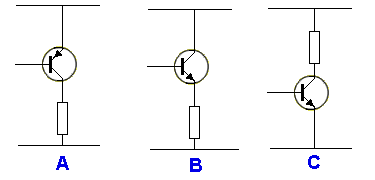

Identify the emitter-follower circuit:

Answer 6 Question 7:

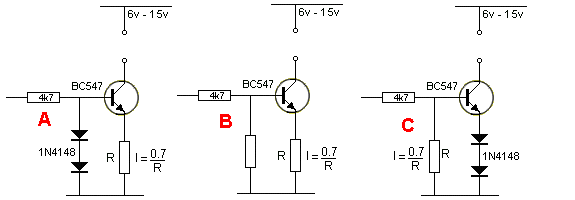

Identify the constant-current circuit:

Answer 7 Question 8:
If you increase the value of the base-bias resistor, what will happen to the collector voltage?

Answer 8 Question 9:
What is the collector voltage:

Answer 9 Question 10:
Draw a NAND gate using a transistor and diodes:

Answer 10

Now go to: THE TRANSISTOR AMPLIFIER and see how much you will learn.
