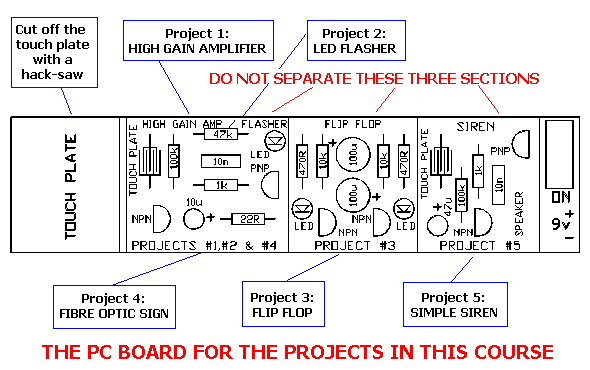

The TOUCH PLATE is cut off the Printed Circuit Board leaving 3 areas for the 5 projects as shown below:
- The HIGH GAIN AMPLIFIER is built on the first section, then two more parts are added to make the LED Flasher on this section.
- The FLIP FLOP is built on the second section.
- The Fibre Optic Display uses the circuit from the first section and the 7x10 matrix board included in the kit.
- The fifth project SIMPLE SIREN, is built on the third section of the board.

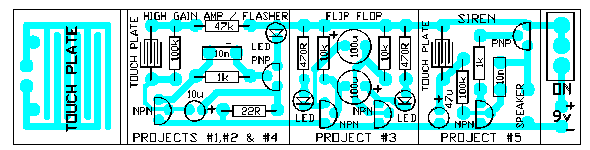

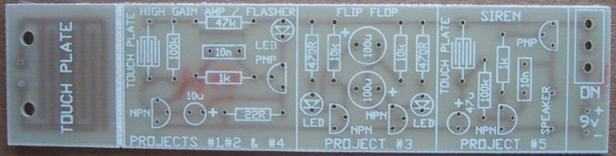

The complete PC board showing the 'break-off' Touch Plate

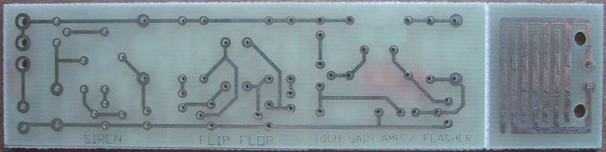

View of the Printed Circuit Board showing the copper tracks under the board:

The underside of the board showing the Touch Plate grid
