Resistor Values Made Easy - 5%
Colin Mitchell
Colin Mitchell
Make sure to subscribe to our newsletter and be the first to know the news.

Table Of Contents

01
NOTES:
02
RESISTORS LESS THAN 10 OHMS
03
COLOUR CODE

Commonly called the “3-colour” system Click HERE for 1% and 2% resistors
Surface Mount identification

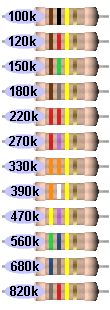

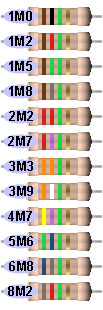

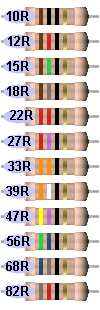

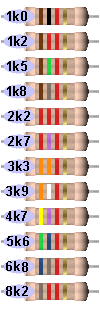

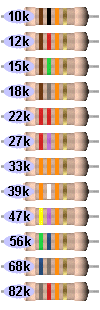

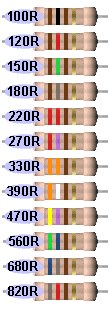

Match the colors to get the value of resistance:

NOTES:

The resistors above are “common value” 5% types.
The fourth band is called the “tolerance” band. Gold = 5% (tolerance band Silver =10% but no modern resistors are 10%!! - they are 5% or 1%) “common resistors” have values 10 ohms to 22M.

RESISTORS LESS THAN 10 OHMS

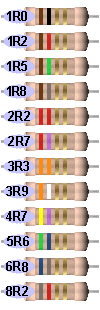

When the third band is gold, it indicates the value of the “colors” must be divided by 10.
Gold = “divide by 10” to get values 1R0 to 8R2
See 1st Column above for examples.

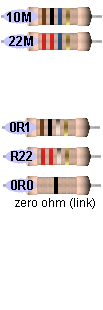

When the third band is silver, it indicates the value of the “colors” must be divided by 100. (Remember: more letters in the word “silver” thus the divisor is “a larger division.“)
Silver = “divide by 100” to get values R1 to R82
e.g: 0R1 = 0.1 ohm 0R22 = point 22 ohms
See 4th Column above for examples.

The letters “R, k and M” take the place of a decimal point.
e.g: 1R0 = 1 ohm 2R2 = 2 point 2 ohms 22R = 22 ohms
2k2 = 2,200 ohms 100k = 100,000 ohms
2M2 = 2,200,000 ohms

COLOUR CODE

HOW TO REMEMBER THE COLOUR CODE:
Each colour has a “number” (or divisor) corresponding to it.
Most of the colours are in the same order as in the spectrum. You can see the spectrum in a rainbow. It is: ROYGBV and the colours for resistors are in the same sequence.

black
brown - colour of increasing temperature
red
orange
yellow
green
blue
violet
gray
white

colourvalueNo of zero’s
silver-2divide by 100
gold-1divide by 10
black0No zeros
brown10
red200
orange3,000 or k
yellow40,000
green500,000
blue6M
violet7
gray8
white9

Here are some common ways to remember the colour code:
Bad Beer Rots Our Young Guts, But Vodka Goes Well
Bright Boys Rave Over Young Girls But Violet Gets Wed
Bad Boys Rave Over Young Girls But Violet Gets Wed with Gold and Silver.
