The experiments start very simple and gradually become more complex. You can use the 5x7 Display Project fully assembled or only with the PIC chip and one row of LEDs. Both versions will work for the first 6 experiments.
If you have fitted only the first column of LEDs, you will have to solder a jumper wire between the collector and emitter of the first transistor so that the column of LEDs will illuminate when the outputs of the PIC chip go HIGH.

Only the first column of LEDs are activated in the first 6 experiments and the “Start” instructions in the program set up the display so that only these LEDs are activated.
After experiment 6 you will need to completely assemble the project to use the full 5x7 matrix.

These are the items you need:

• the 5x7 Display Project with the first row of LEDs (or fully built),
• a 6v battery,
• an interface cable (the components come with the kit)
• a computer.

The 5x7 Display Project comes with a PIC chip containing a test program. This program tests all the features of the project such as the LEDs, the 4017 scan chip and the three push buttons.
As soon as you re-program the chip with the code for the first experiment, you will lose this test program, so you can either use a new chip for the experiments or down-load the test program again, if you need it.
Don’t do any programming unless you you feel you are ready.
Talking Electronics has hundreds of pages of text and projects, both on the web (and in books and magazines) to get you up to the “ready state.”
If you don’t know anything, you can go to our course for beginners, Basic Electronics Course (BEC Theory. From there you will be shown links to our books, magazines and kits.
So, if you are ready, here’s the start of the programming course:

Before doing any of the experiments, the project can be tested by going to the test pages:

• Testing page1,
• Testing page2,
• Testing page3.
  Don’t forget, these test experiments are quite complex, so if you want to start at the beginning, you must start with experiment-1 below:

EXPERIMENT-1 TURN ON A LED

[If the 4017 chip and transistors have not been fitted, a jumper will be required between the collector and emitter of the first transistor as shown in the circuit below]

The first experiment turns on the bottom LED of the first column. That’s all it does. The aim of this experiment is to show you the minimum number of lines of code required to get the PIC microcontroller to do something.
Firstly there are some set-up instructions we have called Start. The first instruction tells the assembler to place the program at the beginning of memory. The second line allows us to access a completely different set of files to the programming files. Programming instructions are placed at page0, but in Start or Set-up, at the beginning of a program, we go to page1 where we find a number of files including files called 05 and 06. These are actually files 85 and 86 and they determine if each pin on port A and B will be input or output. When a bit in file 85 is 1 the line corresponding to the bit in port A will be Input and when the bit is 0 the line will be Output.
We cannot load directly into any file and must firstly put a number (called a literal) into W and then load W into the file. If W is loaded with 00, and then into 85h and 86h, all the lines of port A and port B will be made output.
The sixth instruction closes off this feature and allows programming instructions to be written at page0. Instructions 7 and 8 make line RA1 HIGH to reset the 4017 and keep it in reset for this experiment. Line RA1 is the second lowest line of “A” port and when it delivers a HIGH to the 4017, the first output of the chip will be HIGH and this will be delivered to the base of the first transistor to turn it ON. The result is the cathodes of the first column of LEDs will be connected to the negative rail so they will turn on when the outputs of the PIC chip go HIGH.
This means the actual program to turn on a LED consists of 3 lines. The first line in the LED_ON routine puts 01 into W. The second line moves the value in W to Port6. This port is the output port (actually an input/output port) and when the first line of the PIC micro goes HIGH, the bottom LED (the first LED) will illuminate. The third line loops the program, as the micro must be incrementing through the program AT ALL TIMES.
To learn more about the instructions we have covered, go to our PIC Theory section.

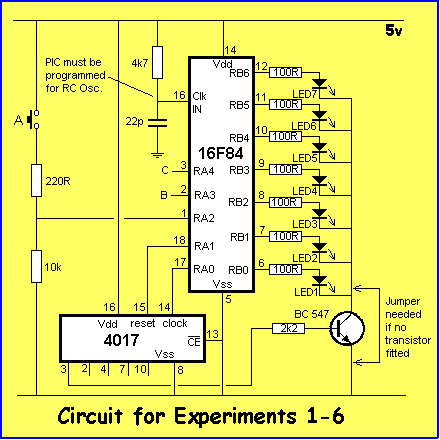

The circuit for the first 6 experiments is shown below:

The circuit above consists of a PIC16F84 microcontroller, a4017 counter chip and a few additional components. The counter chip starts with pin 3 HIGH when the reset line is taken HIGH-to-LOW. When the clock line is taken HIGH-to-LOW, the first output goes LOW and the second output goes HIGH. Each of the first 5 outputs is taken to a “sinking” transistor for the columns.
Port B of the PIC microcontroller has an LED connected to the first seven lines and the 8th line is taken to a transistor and piezo diaphragm (not shown).
The operation of the circuit relies on a program and this program is contained in the chip. When power is applied, the micro starts at the first location in memory and executes the program.
The program must be “burnt” into the micro during programming and at the same time a number of oscillator choices are available. RC osc (Resistor/Capacitor oscillator) must be selected and the chip is ready to drive the circuit.
The chip can be programmed and re-programmed over 1,000 times and this makes it ideal for experimenting.
7 LEDs are available to be turned on in a variety of combinations and the experiments below are examples of programs to do this:

Experiment-1 for “5x7 Display” Project
;PIC16F84 and only F84 chip
;Turns ON bottom left-hand LED (LED1)

Start   ORG 0x00
        BSF 03,5    ;Go to page1 to set the ports
        MOVLW 00h   ;Put 00 into W
        MOVWF 05h   ;Make all RA lines output
        MOVWF 06h   ;Make all RB lines output
        BCF 03,5    ;Go to Page0 for programming
        MOVLW 02h   ;Put 02 into W to
        MOVWF 05h   ;  Reset the 4017


LED_ON  MOVLW 01h   ;Put 1 into W to
        MOVWF 06h   ;  turn on first LED
        GOTO LED_ON ;Loop the routine

    END

Note: The LED turns
on and stays ON.

The block of numbers below is the HEX file for Experiment-1. Copy and paste it into a text program such as TEXTPAD or NOTEPAD and call it: Expt-1.hex

:10000000831600308500860083120230850001309F
:040010008600072837
:00000001FF

You can download all the .hex files. Click 5x7hex files.
You will also need to download the programming program IC-Prog.
You should also go to the section ”Burning a Chip.” This section explains how to load the PIC chip with a .hex file.

EXPERIMENT-2 FLASH A LED

This experiment flashes the lower left-hand LED and introduces the concept of a DELAY routine.
The microcontroller advances through the program all the time. It NEVER stops. For a PIC16F84 with a 4MHz crystal (or 4MHz Resistor/Capacitor network), the micro advances through one million instructions per second. (Most instructions take 1 micro-second, but some - like GOTO and RETURN - take 2micro-seconds).
Between turning on a LED and turning it off again, the micro needs to carry out about 250,000 instructions called “Do-Nothing” instructions so that the on/off is slow enough for us to see. The instruction-set has a do-nothing instruction called NOP (No Operation) but we only have 1,000 memory location, so we cannot fit 250,000 NOP’s in a chip. The solution is to create a DELAY ROUTINE. This is a “do-nothing” or “waiting” routine that takes up computer time until we want the micro to do the next task. The secret of a Delay routine is the micro loops around a small number of instructions called an INNER LOOP and then jumps out to another loop where it carries out a single loop of instructions that sends it back to the inner loop. Each loop contains a file that is DECREMENTED and it takes 256 decrements to make a file equal to zero. It’s all simply too complex to describe, so see how it’s done in ”Chapter 1
The main part of the program is the Flash sub-routine. It puts 1 into W, then outputs the value to the port where the LEDs are connected. The micro then goes to the delay routine so that the LED is illuminated. The micro then goes back to the second half of Flash and puts 00 into W and outputs zero to turn off the LED. The delay routines is then executed so that the we can see the LED in the off state. The program then repeats the operation.

Experiment-2 for “5x7 Display” Project
;PIC16F84 and only F84 chip
;Bottom left-hand LED flashes at 2Hz

Start   ORG 0x00
        BSF 03,5    ;Go to page1 for setting-up the ports
        MOVLW 00h   ;Put 00 into W
        MOVWF 05h   ;Make all RA lines output
        MOVWF 06h   ;Make all RB lines output
        BCF 03,5    ;Go to Page0 for programming
        MOVLW 02h   ;Put 02 into W to
        MOVWF 05h   ;  Reset the 4017
Flash   MOVLW 01h   ;Put 1 into W
        MOVWF 06h   ; and output to turn on LED
        CALL Delay  ;Call Delay
        MOVLW 00    ;Put 00 into W
        MOVWF 06h   ;To turn off LED
        CALL Delay  ;Call Delay
        GOTO Flash  ;Repeat cycle

Delay   MOVLW 03
        MOVWF 1Ah
Delay1  DECFSZ 1Bh,1
        GOTO Delay1
        DECFSZ 1Ch,1
        GOTO Delay1
        DECFSZ 1Ah,1
        GOTO Delay1
        RETURN

       END

The block below is the HEX file for Experiment-2. Copy and paste it into a text program such as TEXTPAD or NOTEPAD and call it: Expt-2.hex

:10000000831600308500860083120230850001309F
:1000100086000E20003086000E20072803309A004C
:0E0020009B0B10289C0B10289A0B1028080030
:00000001FF

EXPERIMENT-3 SCAN UP

The third experiment runs a LED up the first column of LEDs and repeats the effect. This is done by putting 01 in the output file (file 06h). This puts a HIGH on the lowest bit and thus the first LED in the column will be illuminated. The bit is then shifted to the left by a RLF instruction and this turns on the next LED in the column. It is important to clear the carry flag before a Rotate instruction is performed as the carry may be HIGH when the micro is turned on. This will cause two LEDs to travel up the screen - and this is not wanted!

Experiment-3 for “5x7 Display” Project
;PIC16F84 and only F84 chip
;First column of LEDs scan from bottom to top at 2Hz.

Start ORG 0x00
      BSF 03,5    ;Go to page1 for setting-up the ports
      MOVLW 00h   ;Put 00 into W
      MOVWF 05h   ;Make all RA lines output
      MOVWF 06h   ;Make all RB lines output
      BCF 03,5    ;Go to Page0 for programming
      MOVLW 02h   ;Put 02 into W to
      MOVWF 05h   ;  Reset the 4017

Scan  BCF 03h,0   ;clear the carry flag
      MOVLW 01h
      MOVWF 06h
Scan1 CALL Delay   RLF 06h,1
      GOTO Scan1

Delay MOVLW 03
      MOVWF 1Ah
Delay1  DECFSZ 1Bh,1
        GOTO Delay1
        DECFSZ 1Ch,1
        GOTO Delay1
        DECFSZ 1Ah,1
        GOTO Delay1
        RETURN


       END

The block of numbers below is the HEX file for Experiment-3. Copy and paste it into a text program such as TEXTPAD or NOTEPAD and call it: Expt-3.hex

:1000000083160030850086008312023085000310BD
:10001000013086000D20860D0A2803309A009B0BC4
:0C0020000F289C0B0F289A0B0F280800DB
:00000001FF

EXPERIMENT-4 SCAN UP & DOWN

The fourth experiment moves the LED up and down the display. It’s an extension of experiment-3 but this time we detect when the HIGH is bit6 (the top LED turned ON), to reverse the shift and when the HIGH is bit0 to repeat the cycle.

Experiment-4 for “5x7 Display” Project
;PIC16F84 and only F84 chip
;LEDs scan up and down at 2Hz.

Start   ORG 0x00
        BSF 03,5      ;Go to page1 for setting-up the ports
        MOVLW 00h     ;Put 00 into W
        MOVWF 05h     ;Make all RA lines output
        MOVWF 06h     ;Make all RB lines output
        BCF 03,5      ;Go to Page0 for programming
        MOVLW 02h     ;Put 02 into W to
        MOVWF 05h     ;  Reset the 4017

UpDown  BCF 03h,0     ;Clear the carry flag
        MOVLW 01h     ;Turn on the bottom LED
        MOVWF 06h     ;  and output a HIGH
        CALL Delay
UpDown1 RLF 06h,1     ;Shift the HIGH up the column
        CALL Delay
        BTFSS 06h,6   ;Has it reached the top?
        GOTO UpDown1  ;NO
UpDown2 RRF 06h,1     ;YES. Shift the HIGH down
        CALL Delay
        BTFSS 06h,0   ;Has it reached the bottom?
        GOTO UpDown2  ;NO.
        GOTO UpDown1  ;YES. Repeat the cycle

Delay   MOVLW 03
        MOVWF 1Ah
Delay1  DECFSZ 1Bh,1
        GOTO Delay1
        DECFSZ 1Ch,1
        GOTO Delay1
        DECFSZ 1Ah,1
        GOTO Delay1
        RETURN

       END

The block of numbers below is the HEX file for Experiment-4. Copy and paste it into a text program such as TEXTPAD or NOTEPAD and call it: Expt-4.hex

:1000000083160030850086008312023085000310BD
:10001000013086001420860D1420061F0B28860C44
:100020001420061C0F280B2803309A009B0B16285F
:0A0030009C0B16289A0B16280800F6
:00000001FF

EXPERIMENTS-5A&B SWITCH DEBOUNCE

This experiment consists of two parts. The first program “Experiment-5A” toggles a LED on and off via button A but it contains a very poor DEBOUNCE routine having a short delay. Reduce the Delay routine and the LED will be very difficult to control.

Experiment-5A for “5x7 Display” Project
;PIC16F84 and only F84 chip
;Toggling a LED (no de-bounce)

Start     ORG 0x00
          BSF 03,5      ;Go to page1 for setting-up the   ports
          MOVLW 04h     ;Load W with 04
          MOVWF 05h     ;Make RA2 input for button A
          MOVLW 00h     ;Put 00 into W
          MOVWF 06h     ;Make all RB lines output
          BCF 03,5      ;Go to Page0 for programming

          MOVLW 02h     ;Put 02 into W to
          MOVWF 05h     ;  Reset the 4017

SwLoop1   BTFSC 05,2    ;Is switch A pressed?
          GOTO SwLoop1  ;YES. Go to SwLoop1
          CALL Delay
SwLoop2   BTFSS 05,2    ;Is switch A pressed?
          GOTO SwLoop2  ;NO. Go to SwLoop2
          MOVLW 01      ;YES.
          XORWF 06,1    ;Toggle the LED
          CALL Delay
          GOTO SwLoop1

Delay     DECFSZ 1Bh,1
          GOTO Delay
          DECFSZ 1Ch,1
          GOTO Delay
          RETURN

    END

The block of numbers below is the HEX file for Experiment-5a. Copy and paste it into a text program such as TEXTPAD or NOTEPAD and call it: Expt-5a.hex

:10000000831604308500003086008312003086009D
:1000100002308500051D0A2805190C2801308606C6
:0C0020000A289B0B11289C0B11280800DB
:00000001FF

Experiment-5B has an improved de-bounce routine and you will find the LED turns ON or OFF every time the button is pressed. Fully de-bouncing a push-button is essential for reliable operation of a project. The advantage of the program in Experiment 5B is the absence of a delay routine to cover switch bounce. In any project it is essential to have the program looping as quickly as possible so that short-duration input pulses can be detected. If the program is tied up executing a delay routine for switch-bounce, the input pulse may be missed.
This routine CALLs the Switch routine and it causes very little delay to the overall running of the program. The 80h loops for debounce (in file 1Dh) creates reliable operation. Try putting 10h loops into the program and notice the unreliable operation. The LED turns on and off randomly if the switch is pressed slowly.

Experiment-5B for “5x7 Display” Project
;PIC16F84 and only F84 chip
;Toggling a LED (with de-bounce)

Start   ORG 0x00
        BSF 03,5      ;Go to page1 for setting-up the ports
        MOVLW 04h     ;Load W with 04
        MOVWF 05h     ;Make RA2 input for button A
        MOVLW 00h     ;Put 00 into W
        MOVWF 06h     ;Make all RB lines output
        BCF 03,5      ;Go to Page0 for programming

        MOVLW 02h     ;Put 02 into W to
        MOVWF 05h     ;  Reset the 4017
        MOVLW 00
        MOVWF 06h     ;Zero the output port
        GOTO Main

Switch  BTFSC 05,2    ;Is switch A pushed?
        GOTO Switch2  ;YES.
        MOVF 1Dh,0    ;NO. Copy 1Dh into W
        XORLW 00      ;XOR W with 00
        BTFSS 03,2    ;Is file 1Dh=0?
        GOTO Switch1  ;NO.
        RETURN        ;YES.
Switch1 DECF 1Dh,1    ;Decrement the debounce file
        RETURN
Switch2 MOVF 1Dh,0    ;1Dh is the debounce file
        XORLW 00
        BTFSS 03,2    ;Is file 1Dh=0?
        RETURN        ;NO.
        MOVLW 01      ;YES. LED is on line0 of port6
        XORWF 06,1    ;Toggle the LED
        MOVLW 80h     ;Load W with 80h loops
        MOVWF 1Dh     ;Put 80h into debounce file
        RETURN

Main    NOP           ;This is a short Main routine to introduce
        CALL Switch   ;the concept of a CALL from the
        NOP           ;Main routine
        NOP
        GOTO Main

   END

The block of numbers below is the HEX file for Experiment-5b. Copy and paste it into a text program such as TEXTPAD or NOTEPAD and call it: Expt-5b.hex

:10000000831604308500003086008312023085009C
:10001000003086001E28051D15281D08003A031D06
:10002000122808009D0B000008001D08003A031D5F
:1000300008000130860680309D00080000000B207B
:06004000000000001E2874
:00000001FF

EXPERIMENT-6 REACTION GAME

This experiment is actually a GAME. It’s a game of skill. The LEDs rise up and down column 1 and each LED is ON for a short period of time. The middle LED is the target LED. You have to determine EXACTLY when it is ON for HALF ITS DURATION. You have about 1/20th second to press Button A and no presses outside this time-frame are accepted. If you press at exactly the right time, the LED goes out and the game starts again. This game incorporates all the routines we have covered so far.
There is one fault with the program. It’s fairly technical but “Target” is called from two different locations and if button A is pushed correctly, the program has a “GOTO Game” instruction. A call routine should not have a GOTO instruction at the end of the routine as this will upset the stack. “Target” should be incorporated into the main program in two places and this is an exercise for you to complete. The second “target block” should be labelled “Target 4, 5 and 6.”
The program has a delay for each LED made up of a half-delay (called Delay) at the bottom of the program, a very short delay (called Target) where the program looks for a key-press then another half-delay. During “Target,” the program looks to see if the middle LED is lit, then checks to see if button A is pressed, then checks to see if button A has been pressed before the target was lit. If all these decisions are met, the LED goes off and the game starts again.
Flag file 1Dh, bit 5 is SET when Button A is pushed, and cleared at the end of each run.

Experiment-6 for “5x7 Display” Project
;PIC16F84 and only F84 chip
;REACTION GAME - Press button A

 Start    ORG 0x00
          BSF 03,5    ;Go to page1 for setting-up the   ports
          MOVLW 04h   ;Load W with 04
          MOVWF 05h   ;Make RA2 input
          MOVLW 00h   ;Put 00 into W
          MOVWF 06h   ;Make all RB lines output
          BCF 03,5    ;Go to Page0 for programming
          MOVLW 02h   ;Put 02 into W to
          MOVWF 05h   ; Reset the 4017
          BCF 03h,0   ;clear the carry flag

Game      MOVLW 01h   ;Turn on the bottom LED
          MOVWF 06h   ; and output a HIGH to LED
          CALL Delay
          CALL Delay
Game1     BCF 1E,5    ;Reset the flag bit for button A
Game2     RLF 06h,1   ;Shift the HIGH up the column
          CALL Delay
          CALL Target
          CALL Delay
          BTFSS 06h,6 ;Has it reached the top?
          GOTO Game2  ;NO.
Game3     BCF 1E,5    ;Reset the flag bit for button A
          RRF 06h,1   ;Shift the HIGH down
          CALL Delay
          CALL Target
          CALL Delay
          BTFSS 06h,0  ;Has it reached the bottom?
          GOTO Game3   ;NO.
          GOTO Game1   ;YES. Repeat the cycle

 Target   MOVLW 80h    ;This value determines  "window" for  target
          MOVWF 1Ch
Target1   DECFSZ 1B,1
          GOTO Target1
          BTFSS 06h,3   ;Is target LED lit?
          GOTO Target2  ;NO.
          BTFSC 05h,2   ;Is button A pressed?
          GOTO Target3  ;YES.
Target2   DECFSZ 1Ch,1  ;NO.
          GOTO Target1
          RETURN
Target3   BTFSC 1Eh,5   ;Has button A been pushed incorrectly?
          GOTO Target2  ;YES.
          GOTO Game

Delay     MOVLW 01h
          MOVWF 1Ah
Delay1    DECFSZ 1Bh,1
          GOTO Delay1
          BTFSC 05h,2   ;Is buttonA  pressed?
          BSF 1Eh,5   ;Yes. Set flag for button A
          DECFSZ 1Ch,1
          GOTO Delay1
          DECFSZ 1Ah,1
          GOTO Delay1
          RETURN

   END

Hit the middle LED

The block of numbers below is the HEX file for Experiment-6. Copy and paste it into a text program such as TEXTPAD or NOTEPAD and call it: Expt-6.hex

:10000000831604308500003086008312023085009C
:100010000310013086002A202A209E12860D2A20F5
:100020001C202A20061F0E289E12860C2A201C2027
:100030002A20061C14280D2880309C009B0B1E28AB
:10004000861D2428051927289C0B1E2808009E1AA7
:100050002428092801309A009B0B2C2805199E168C
:0A0060009C0B2C289A0B2C2808009A
:00000001FF

The rest of the experiments require the full display of LEDs to be fitted to the project. Fit all the LEDs, 4017 IC and the “sinking” transistors, as well as the buffer resistors.

When the project is fully built and tested, you can continue the experiments.
Go to: 5x7 EXPERIMENTS: Page-2
